Schema FinancialNote_20253.xsd


ROOT ELEMENT:  FinancialNote
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  http://socialsecurity.be/xml/ns/financialnote

Elements  Complex types
AccountNbrFormat  AddressType
AccountNumber  ApplicationDataType

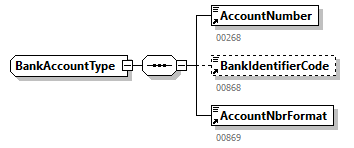

Address  BankAccountType
ApplicationData  CommunicationType
BankAccount  CoordinatesContactPersonType
BankIdentifierCode  CoordinatesEmployerType
City  CoordinatesRepresentativeType
Communication  CoordinatesSocialSecretariatType
CompanyID  CreditorDetailType
CoordinatesContactPerson  EndToEndIdType
CoordinatesEmployer  FinancialNoteDetailType

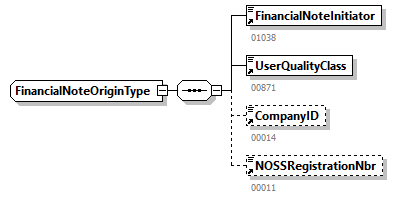

CoordinatesRepresentative  FinancialNoteOriginType
CoordinatesSocialSecretariat  FinancialTransactionType
Country  FinancialTransactJustificationType
CreditorDetail  PaymentOrderType
DateSubmission  ReceiverInformationType
Denomination  ReferenceType
DueDate  SectorInformationType
EmailAddress
EmployerDenomination

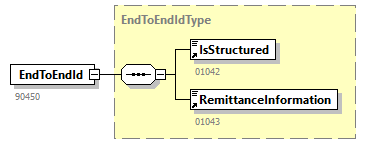

EndToEndId
FaxNbr
FilialSecSocNbr
FinancialNote

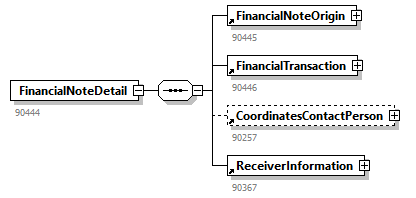

FinancialNoteDetail
FinancialNoteInitiator
FinancialNoteOrigin
FinancialTransaction
FinancialTransactionDomain
FinancialTransactionType
FinancialTransactJustification
FirstName
GSMNbr
HouseNbr
InvoiceDate
IsStructured
Name
NetOwedAmount
NOSSRegistrationNbr
OfficeNumber
PaymentOrder
PhoneNbr
PostBox
ReceiverInformation

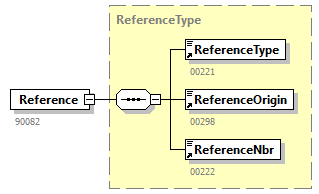

Reference
ReferenceNbr
ReferenceOrigin
ReferenceType
RemittanceInformation
SectorInformation
SocialSecretariatNumber
Street
UserQualityClass
ZIPCode


element AccountNbrFormat
diagram FinancialNote_20253_p1.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  BankAccountType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  2
totalDigits  1
annotation
documentation
00869
source <xs:element name="AccountNbrFormat">
  <xs:annotation>
    <xs:documentation>00869</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="2"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AccountNumber
diagram FinancialNote_20253_p2.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  BankAccountType
facets
Kind  Value  Annotation
maxLength  34
annotation
documentation
00268
appinfo
xs:BankAccount
source <xs:element name="AccountNumber">
  <xs:annotation>
    <xs:documentation>00268</xs:documentation>
    <xs:appinfo source="TDOType">xs:BankAccount</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="34"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

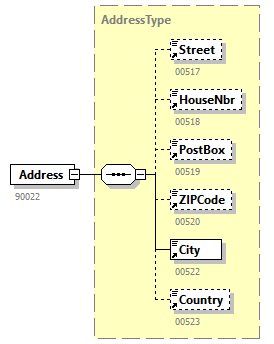

element Address
diagram FinancialNote_20253_p3.png
namespace http://socialsecurity.be/xml/ns/financialnote
type AddressType
properties
content  complex
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  ReceiverInformation
annotation
documentation
90022
source <xs:element name="Address" type="AddressType">
  <xs:annotation>
    <xs:documentation>90022</xs:documentation>
  </xs:annotation>
</xs:element>

element ApplicationData
diagram FinancialNote_20253_p4.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of ApplicationDataType
properties
content  complex
used by
element  FinancialTransactJustification
annotation
documentation
90410
source <xs:element name="ApplicationData">
  <xs:annotation>
    <xs:documentation>90410</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ApplicationDataType">
        <xs:sequence maxOccurs="unbounded">
          <xs:any namespace="##any"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

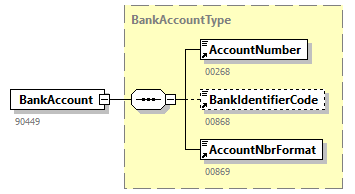

element BankAccount
diagram FinancialNote_20253_p5.png
namespace http://socialsecurity.be/xml/ns/financialnote
type BankAccountType
properties
content  complex
children AccountNumberBankIdentifierCodeAccountNbrFormat
used by
element  CreditorDetail
annotation
documentation
90449
source <xs:element name="BankAccount" type="BankAccountType">
  <xs:annotation>
    <xs:documentation>90449</xs:documentation>
  </xs:annotation>
</xs:element>

element BankIdentifierCode
diagram FinancialNote_20253_p6.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  BankAccountType
facets
Kind  Value  Annotation
maxLength  11
annotation
documentation
00868
source <xs:element name="BankIdentifierCode">
  <xs:annotation>
    <xs:documentation>00868</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="11"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element City
diagram FinancialNote_20253_p7.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
maxLength  40
annotation
documentation
00522
source <xs:element name="City">
  <xs:annotation>
    <xs:documentation>00522</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

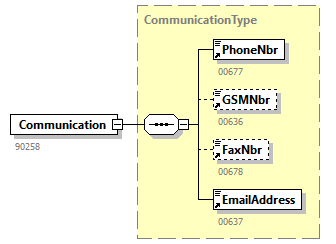

element Communication
diagram FinancialNote_20253_p8.png
namespace http://socialsecurity.be/xml/ns/financialnote
type CommunicationType
properties
content  complex
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
element  CoordinatesContactPerson
annotation
documentation
90258
source <xs:element name="Communication" type="CommunicationType">
  <xs:annotation>
    <xs:documentation>90258</xs:documentation>
  </xs:annotation>
</xs:element>

element CompanyID
diagram FinancialNote_20253_p9.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialNoteOriginType
facets
Kind  Value  Annotation
minInclusive  0000000196
maxInclusive  1999999943
totalDigits  10
pattern  \d{9}|\d{10}
annotation
documentation
00014
appinfo
CompanyID_conversion1
appinfo
xs:companyId
source <xs:element name="CompanyID">
  <xs:annotation>
    <xs:documentation>00014</xs:documentation>
    <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0000000196"/>
      <xs:maxInclusive value="1999999943"/>
      <xs:totalDigits value="10"/>
      <xs:pattern value="\d{9}|\d{10}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

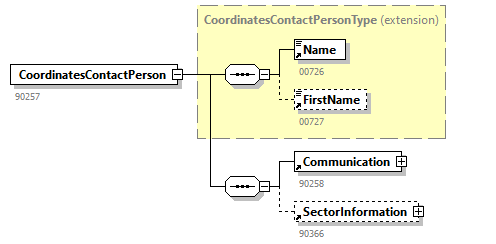

element CoordinatesContactPerson
diagram FinancialNote_20253_p10.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of CoordinatesContactPersonType
properties
content  complex
children NameFirstNameCommunicationSectorInformation
used by
element  FinancialNoteDetail
annotation
documentation
90257
source <xs:element name="CoordinatesContactPerson">
  <xs:annotation>
    <xs:documentation>90257</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CoordinatesContactPersonType">
        <xs:sequence>
          <xs:element ref="Communication"/>
          <xs:element ref="SectorInformation" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element CoordinatesEmployer
diagram FinancialNote_20253_p11.png
namespace http://socialsecurity.be/xml/ns/financialnote
type CoordinatesEmployerType
properties
content  complex
children EmployerDenomination
used by
element  ReceiverInformation
annotation
documentation
90265
source <xs:element name="CoordinatesEmployer" type="CoordinatesEmployerType">
  <xs:annotation>
    <xs:documentation>90265</xs:documentation>
  </xs:annotation>
</xs:element>

element CoordinatesRepresentative
diagram FinancialNote_20253_p12.png
namespace http://socialsecurity.be/xml/ns/financialnote
type CoordinatesRepresentativeType
properties
content  complex
children Denomination
used by
element  ReceiverInformation
annotation
documentation
90369
source <xs:element name="CoordinatesRepresentative" type="CoordinatesRepresentativeType">
  <xs:annotation>
    <xs:documentation>90369</xs:documentation>
  </xs:annotation>
</xs:element>

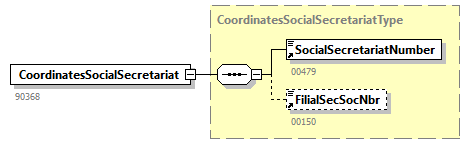

element CoordinatesSocialSecretariat
diagram FinancialNote_20253_p13.png
namespace http://socialsecurity.be/xml/ns/financialnote
type CoordinatesSocialSecretariatType
properties
content  complex
children SocialSecretariatNumberFilialSecSocNbr
used by
element  ReceiverInformation
annotation
documentation
90368
source <xs:element name="CoordinatesSocialSecretariat" type="CoordinatesSocialSecretariatType">
  <xs:annotation>
    <xs:documentation>90368</xs:documentation>
  </xs:annotation>
</xs:element>

element Country
diagram FinancialNote_20253_p14.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00523
source <xs:element name="Country">
  <xs:annotation>
    <xs:documentation>00523</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

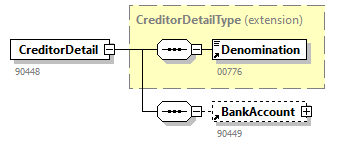

element CreditorDetail
diagram FinancialNote_20253_p15.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of CreditorDetailType
properties
content  complex
children DenominationBankAccount
used by
element  PaymentOrder
annotation
documentation
90448
source <xs:element name="CreditorDetail">
  <xs:annotation>
    <xs:documentation>90448</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CreditorDetailType">
        <xs:sequence>
          <xs:element ref="BankAccount" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element DateSubmission
diagram FinancialNote_20253_p16.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:date
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00805
source <xs:element name="DateSubmission">
  <xs:annotation>
    <xs:documentation>00805</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Denomination
diagram FinancialNote_20253_p17.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesRepresentativeTypeCreditorDetailType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00776
source <xs:element name="Denomination">
  <xs:annotation>
    <xs:documentation>00776</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DueDate
diagram FinancialNote_20253_p18.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:date
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01024
source <xs:element name="DueDate">
  <xs:annotation>
    <xs:documentation>01024</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmailAddress
diagram FinancialNote_20253_p19.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  60
annotation
documentation
00637
source <xs:element name="EmailAddress">
  <xs:annotation>
    <xs:documentation>00637</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="60"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerDenomination
diagram FinancialNote_20253_p20.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesEmployerType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00157
source <xs:element name="EmployerDenomination">
  <xs:annotation>
    <xs:documentation>00157</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EndToEndId
diagram FinancialNote_20253_p21.png
namespace http://socialsecurity.be/xml/ns/financialnote
type EndToEndIdType
properties
content  complex
children IsStructuredRemittanceInformation
used by
element  PaymentOrder
annotation
documentation
90450
source <xs:element name="EndToEndId" type="EndToEndIdType">
  <xs:annotation>
    <xs:documentation>90450</xs:documentation>
  </xs:annotation>
</xs:element>

element FaxNbr
diagram FinancialNote_20253_p22.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00678
source <xs:element name="FaxNbr">
  <xs:annotation>
    <xs:documentation>00678</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FilialSecSocNbr
diagram FinancialNote_20253_p23.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  CoordinatesSocialSecretariatType
facets
Kind  Value  Annotation
totalDigits  3
annotation
documentation
00150
source <xs:element name="FilialSecSocNbr">
  <xs:annotation>
    <xs:documentation>00150</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FinancialNote
diagram FinancialNote_20253_p24.png
namespace http://socialsecurity.be/xml/ns/financialnote
properties
content  complex
children ReferenceFinancialNoteDetail
annotation
documentation
90443
source <xs:element name="FinancialNote">
  <xs:annotation>
    <xs:documentation>90443</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Reference" minOccurs="0"/>
      <xs:element ref="FinancialNoteDetail"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element FinancialNoteDetail
diagram FinancialNote_20253_p25.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of FinancialNoteDetailType
properties
content  complex
children FinancialNoteOriginFinancialTransactionCoordinatesContactPersonReceiverInformation
used by
element  FinancialNote
annotation
documentation
90444
source <xs:element name="FinancialNoteDetail">
  <xs:annotation>
    <xs:documentation>90444</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FinancialNoteDetailType">
        <xs:sequence>
          <xs:element ref="FinancialNoteOrigin"/>
          <xs:element ref="FinancialTransaction"/>
          <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>
          <xs:element ref="ReceiverInformation"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FinancialNoteInitiator
diagram FinancialNote_20253_p26.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialNoteOriginType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  1
enumeration  2
enumeration  3
enumeration  8
annotation
documentation
01038
source <xs:element name="FinancialNoteInitiator">
  <xs:annotation>
    <xs:documentation>01038</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
      <xs:enumeration value="8"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FinancialNoteOrigin

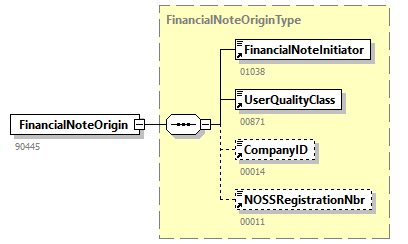

diagram FinancialNote_20253_p27.png
namespace http://socialsecurity.be/xml/ns/financialnote
type FinancialNoteOriginType
properties
content  complex
children FinancialNoteInitiatorUserQualityClassCompanyIDNOSSRegistrationNbr
used by
element  FinancialNoteDetail
annotation
documentation
90445
source <xs:element name="FinancialNoteOrigin" type="FinancialNoteOriginType">
  <xs:annotation>
    <xs:documentation>90445</xs:documentation>
  </xs:annotation>
</xs:element>

element FinancialTransaction

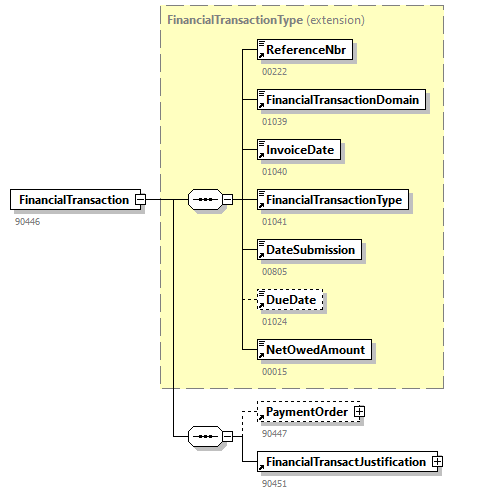

diagram FinancialNote_20253_p28.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of FinancialTransactionType
properties
content  complex
children ReferenceNbrFinancialTransactionDomainInvoiceDateFinancialTransactionTypeDateSubmissionDueDateNetOwedAmountPaymentOrderFinancialTransactJustification
used by
element  FinancialNoteDetail
annotation
documentation
90446
source <xs:element name="FinancialTransaction">
  <xs:annotation>
    <xs:documentation>90446</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FinancialTransactionType">
        <xs:sequence>
          <xs:element ref="PaymentOrder" minOccurs="0"/>
          <xs:element ref="FinancialTransactJustification"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FinancialTransactionDomain
diagram FinancialNote_20253_p29.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  1
enumeration  2
enumeration  3
enumeration  7
annotation
documentation
01039
source <xs:element name="FinancialTransactionDomain">
  <xs:annotation>
    <xs:documentation>01039</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
      <xs:enumeration value="7"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FinancialTransactionType
diagram FinancialNote_20253_p30.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  3
totalDigits  1
annotation
documentation
01041
source <xs:element name="FinancialTransactionType">
  <xs:annotation>
    <xs:documentation>01041</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="3"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FinancialTransactJustification
diagram FinancialNote_20253_p31.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of FinancialTransactJustificationType
properties
content  complex
children ApplicationData
used by
element  FinancialTransaction
annotation
documentation
90451
source <xs:element name="FinancialTransactJustification">
  <xs:annotation>
    <xs:documentation>90451</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FinancialTransactJustificationType">
        <xs:sequence>
          <xs:element ref="ApplicationData" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FirstName
diagram FinancialNote_20253_p32.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesContactPersonType
facets
Kind  Value  Annotation
maxLength  24
annotation
documentation
00727
source <xs:element name="FirstName">
  <xs:annotation>
    <xs:documentation>00727</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="24"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element GSMNbr
diagram FinancialNote_20253_p33.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00636
source <xs:element name="GSMNbr">
  <xs:annotation>
    <xs:documentation>00636</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element HouseNbr
diagram FinancialNote_20253_p34.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
maxLength  10
annotation
documentation
00518
source <xs:element name="HouseNbr">
  <xs:annotation>
    <xs:documentation>00518</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element InvoiceDate
diagram FinancialNote_20253_p35.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:date
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01040
source <xs:element name="InvoiceDate">
  <xs:annotation>
    <xs:documentation>01040</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IsStructured
diagram FinancialNote_20253_p36.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  EndToEndIdType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
01042
source <xs:element name="IsStructured">
  <xs:annotation>
    <xs:documentation>01042</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Name
diagram FinancialNote_20253_p37.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesContactPersonType
facets
Kind  Value  Annotation
maxLength  48
annotation
documentation
00726
source <xs:element name="Name">
  <xs:annotation>
    <xs:documentation>00726</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="48"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NetOwedAmount
diagram FinancialNote_20253_p38.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialTransactionType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  999999999999999
totalDigits  15
annotation
documentation
00015
source <xs:element name="NetOwedAmount">
  <xs:annotation>
    <xs:documentation>00015</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="999999999999999"/>
      <xs:totalDigits value="15"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NOSSRegistrationNbr
diagram FinancialNote_20253_p39.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialNoteOriginType
facets
Kind  Value  Annotation
minInclusive  100006
maxInclusive  199999934
totalDigits  9
annotation
documentation
00011
appinfo
Noss_conversion1
appinfo
xs:nossRegistrationNbr
source <xs:element name="NOSSRegistrationNbr">
  <xs:annotation>
    <xs:documentation>00011</xs:documentation>
    <xs:appinfo source="ConversionID">Noss_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:nossRegistrationNbr</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="100006"/>
      <xs:maxInclusive value="199999934"/>
      <xs:totalDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element OfficeNumber
diagram FinancialNote_20253_p40.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  SectorInformationType
facets
Kind  Value  Annotation
maxLength  3
annotation
documentation
00470
source <xs:element name="OfficeNumber">
  <xs:annotation>
    <xs:documentation>00470</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentOrder
diagram FinancialNote_20253_p41.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of PaymentOrderType
properties
content  complex
children CreditorDetailEndToEndId
used by
element  FinancialTransaction
annotation
documentation
90447
source <xs:element name="PaymentOrder">
  <xs:annotation>
    <xs:documentation>90447</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="PaymentOrderType">
        <xs:sequence>
          <xs:element ref="CreditorDetail"/>
          <xs:element ref="EndToEndId" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element PhoneNbr
diagram FinancialNote_20253_p42.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00677
source <xs:element name="PhoneNbr">
  <xs:annotation>
    <xs:documentation>00677</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PostBox
diagram FinancialNote_20253_p43.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00519
source <xs:element name="PostBox">
  <xs:annotation>
    <xs:documentation>00519</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

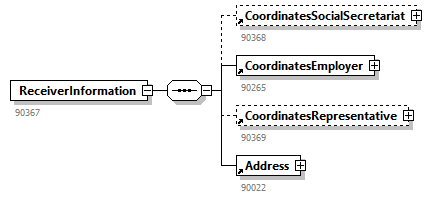

element ReceiverInformation
diagram FinancialNote_20253_p44.png
namespace http://socialsecurity.be/xml/ns/financialnote
type extension of ReceiverInformationType
properties
content  complex
children CoordinatesSocialSecretariatCoordinatesEmployerCoordinatesRepresentativeAddress
used by
element  FinancialNoteDetail
annotation
documentation
90367
source <xs:element name="ReceiverInformation">
  <xs:annotation>
    <xs:documentation>90367</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ReceiverInformationType">
        <xs:sequence>
          <xs:element ref="CoordinatesSocialSecretariat" minOccurs="0"/>
          <xs:element ref="CoordinatesEmployer"/>
          <xs:element ref="CoordinatesRepresentative" minOccurs="0"/>
          <xs:element ref="Address"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element Reference
diagram FinancialNote_20253_p45.png
namespace http://socialsecurity.be/xml/ns/financialnote
type ReferenceType
properties
content  complex
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  FinancialNote
annotation
documentation
90082
source <xs:element name="Reference" type="ReferenceType">
  <xs:annotation>
    <xs:documentation>90082</xs:documentation>
  </xs:annotation>
</xs:element>

element ReferenceNbr
diagram FinancialNote_20253_p46.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexTypes  FinancialTransactionTypeReferenceType
facets
Kind  Value  Annotation
minLength  1
maxLength  64
annotation
documentation
00222
appinfo
TicketNumber_conversion1
source <xs:element name="ReferenceNbr">
  <xs:annotation>
    <xs:documentation>00222</xs:documentation>
    <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceOrigin
diagram FinancialNote_20253_p47.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  3
annotation
documentation
00298
source <xs:element name="ReferenceOrigin">
  <xs:annotation>
    <xs:documentation>00298</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceType
diagram FinancialNote_20253_p48.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  1
annotation
documentation
00221
source <xs:element name="ReferenceType">
  <xs:annotation>
    <xs:documentation>00221</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RemittanceInformation
diagram FinancialNote_20253_p49.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  EndToEndIdType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
01043
source <xs:element name="RemittanceInformation">
  <xs:annotation>
    <xs:documentation>01043</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SectorInformation
diagram FinancialNote_20253_p50.png
namespace http://socialsecurity.be/xml/ns/financialnote
type SectorInformationType
properties
content  complex
children OfficeNumber
used by
element  CoordinatesContactPerson
annotation
documentation
90366
source <xs:element name="SectorInformation" type="SectorInformationType">
  <xs:annotation>
    <xs:documentation>90366</xs:documentation>
  </xs:annotation>
</xs:element>

element SocialSecretariatNumber
diagram FinancialNote_20253_p51.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  CoordinatesSocialSecretariatType
facets
Kind  Value  Annotation
totalDigits  3
annotation
documentation
00479
source <xs:element name="SocialSecretariatNumber">
  <xs:annotation>
    <xs:documentation>00479</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Street
diagram FinancialNote_20253_p52.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
maxLength  42
annotation
documentation
00517
source <xs:element name="Street">
  <xs:annotation>
    <xs:documentation>00517</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="42"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element UserQualityClass
diagram FinancialNote_20253_p53.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:integer
properties
content  simple
used by
complexType  FinancialNoteOriginType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  01
enumeration  02
annotation
documentation
00871
source <xs:element name="UserQualityClass">
  <xs:annotation>
    <xs:documentation>00871</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="01"/>
      <xs:enumeration value="02"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ZIPCode
diagram FinancialNote_20253_p54.png
namespace http://socialsecurity.be/xml/ns/financialnote
type restriction of xs:string
properties
content  simple
used by
complexType  AddressType
facets
Kind  Value  Annotation
maxLength  9
annotation
documentation
00520
source <xs:element name="ZIPCode">
  <xs:annotation>
    <xs:documentation>00520</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType AddressType
diagram FinancialNote_20253_p55.png
namespace http://socialsecurity.be/xml/ns/financialnote
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  Address
source <xs:complexType name="AddressType">
  <xs:sequence>
    <xs:element ref="Street" minOccurs="0"/>
    <xs:element ref="HouseNbr" minOccurs="0"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode" minOccurs="0"/>
    <xs:element ref="City"/>
    <xs:element ref="Country" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType ApplicationDataType
diagram FinancialNote_20253_p56.png
namespace http://socialsecurity.be/xml/ns/financialnote
used by
element  ApplicationData
source <xs:complexType name="ApplicationDataType"/>

complexType BankAccountType
diagram FinancialNote_20253_p57.png
namespace http://socialsecurity.be/xml/ns/financialnote
children AccountNumberBankIdentifierCodeAccountNbrFormat
used by
element  BankAccount
source <xs:complexType name="BankAccountType">
  <xs:sequence>
    <xs:element ref="AccountNumber"/>
    <xs:element ref="BankIdentifierCode" minOccurs="0"/>
    <xs:element ref="AccountNbrFormat"/>
  </xs:sequence>
</xs:complexType>

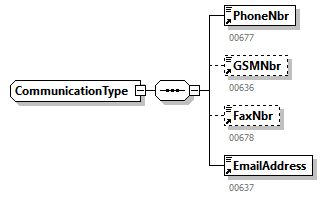

complexType CommunicationType
diagram FinancialNote_20253_p58.png
namespace http://socialsecurity.be/xml/ns/financialnote
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
element  Communication
source <xs:complexType name="CommunicationType">
  <xs:sequence>
    <xs:element ref="PhoneNbr"/>
    <xs:element ref="GSMNbr" minOccurs="0"/>
    <xs:element ref="FaxNbr" minOccurs="0"/>
    <xs:element ref="EmailAddress"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesContactPersonType
diagram FinancialNote_20253_p59.png
namespace http://socialsecurity.be/xml/ns/financialnote
children NameFirstName
used by
element  CoordinatesContactPerson
source <xs:complexType name="CoordinatesContactPersonType">
  <xs:sequence>
    <xs:element ref="Name"/>
    <xs:element ref="FirstName" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesEmployerType
diagram FinancialNote_20253_p60.png
namespace http://socialsecurity.be/xml/ns/financialnote
children EmployerDenomination
used by
element  CoordinatesEmployer
source <xs:complexType name="CoordinatesEmployerType">
  <xs:sequence>
    <xs:element ref="EmployerDenomination"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesRepresentativeType
diagram FinancialNote_20253_p61.png
namespace http://socialsecurity.be/xml/ns/financialnote
children Denomination
used by
element  CoordinatesRepresentative
source <xs:complexType name="CoordinatesRepresentativeType">
  <xs:sequence>
    <xs:element ref="Denomination"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesSocialSecretariatType
diagram FinancialNote_20253_p62.png
namespace http://socialsecurity.be/xml/ns/financialnote
children SocialSecretariatNumberFilialSecSocNbr
used by
element  CoordinatesSocialSecretariat
source <xs:complexType name="CoordinatesSocialSecretariatType">
  <xs:sequence>
    <xs:element ref="SocialSecretariatNumber"/>
    <xs:element ref="FilialSecSocNbr" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType CreditorDetailType
diagram FinancialNote_20253_p63.png
namespace http://socialsecurity.be/xml/ns/financialnote
children Denomination
used by
element  CreditorDetail
source <xs:complexType name="CreditorDetailType">
  <xs:sequence>
    <xs:element ref="Denomination"/>
  </xs:sequence>
</xs:complexType>

complexType EndToEndIdType
diagram FinancialNote_20253_p64.png
namespace http://socialsecurity.be/xml/ns/financialnote
children IsStructuredRemittanceInformation
used by
element  EndToEndId
source <xs:complexType name="EndToEndIdType">
  <xs:sequence>
    <xs:element ref="IsStructured"/>
    <xs:element ref="RemittanceInformation"/>
  </xs:sequence>
</xs:complexType>

complexType FinancialNoteDetailType
diagram FinancialNote_20253_p65.png
namespace http://socialsecurity.be/xml/ns/financialnote
used by
element  FinancialNoteDetail
source <xs:complexType name="FinancialNoteDetailType"/>

complexType FinancialNoteOriginType
diagram FinancialNote_20253_p66.png
namespace http://socialsecurity.be/xml/ns/financialnote
children FinancialNoteInitiatorUserQualityClassCompanyIDNOSSRegistrationNbr
used by
element  FinancialNoteOrigin
source <xs:complexType name="FinancialNoteOriginType">
  <xs:sequence>
    <xs:element ref="FinancialNoteInitiator"/>
    <xs:element ref="UserQualityClass"/>
    <xs:element ref="CompanyID" minOccurs="0"/>
    <xs:element ref="NOSSRegistrationNbr" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

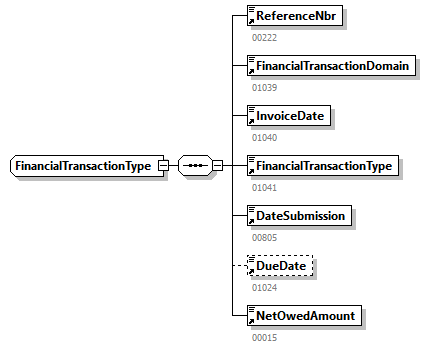

complexType FinancialTransactionType
diagram FinancialNote_20253_p67.png
namespace http://socialsecurity.be/xml/ns/financialnote
children ReferenceNbrFinancialTransactionDomainInvoiceDateFinancialTransactionTypeDateSubmissionDueDateNetOwedAmount
used by
element  FinancialTransaction
source <xs:complexType name="FinancialTransactionType">
  <xs:sequence>
    <xs:element ref="ReferenceNbr"/>
    <xs:element ref="FinancialTransactionDomain"/>
    <xs:element ref="InvoiceDate"/>
    <xs:element ref="FinancialTransactionType"/>
    <xs:element ref="DateSubmission"/>
    <xs:element ref="DueDate" minOccurs="0"/>
    <xs:element ref="NetOwedAmount"/>
  </xs:sequence>
</xs:complexType>

complexType FinancialTransactJustificationType
diagram FinancialNote_20253_p68.png
namespace http://socialsecurity.be/xml/ns/financialnote
used by
element  FinancialTransactJustification
source <xs:complexType name="FinancialTransactJustificationType"/>

complexType PaymentOrderType
diagram FinancialNote_20253_p69.png
namespace http://socialsecurity.be/xml/ns/financialnote
used by
element  PaymentOrder
source <xs:complexType name="PaymentOrderType"/>

complexType ReceiverInformationType
diagram FinancialNote_20253_p70.png
namespace http://socialsecurity.be/xml/ns/financialnote
used by
element  ReceiverInformation
source <xs:complexType name="ReceiverInformationType"/>

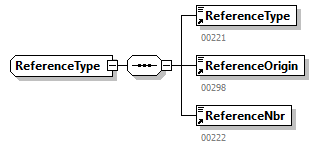

complexType ReferenceType
diagram FinancialNote_20253_p71.png
namespace http://socialsecurity.be/xml/ns/financialnote
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Reference
source <xs:complexType name="ReferenceType">
  <xs:sequence>
    <xs:element ref="ReferenceType"/>
    <xs:element ref="ReferenceOrigin"/>
    <xs:element ref="ReferenceNbr"/>
  </xs:sequence>
</xs:complexType>

complexType SectorInformationType
diagram FinancialNote_20253_p72.png
namespace http://socialsecurity.be/xml/ns/financialnote
children OfficeNumber
used by
element  SectorInformation
source <xs:complexType name="SectorInformationType">
  <xs:sequence>
    <xs:element ref="OfficeNumber"/>
  </xs:sequence>
</xs:complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
