Schema TWCT501_20253.xsd

ROOT ELEMENT:	TWCT501
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types
Address	AddressType
AttestationStatus	CommentDeclarationType
BadWeather	CommunicationType
BisFlagIndication	CoordinatesContactPersonType
City	DclInformationType
CommentDeclaration	DepartmentIdentificationType
CommentOfDeclaration	EffectiveUnemploymentType

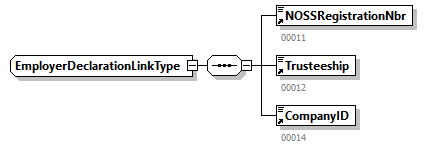

Communication	EmployerDeclarationLinkType
CommunicationSourceIndicator	FormType
CompanyID	HandledEmployerDeclarationLinkType
CoordinatesContactPerson	HandledNaturalPersonType
Country	HandledNOSSLPAEmployerDclLinkType

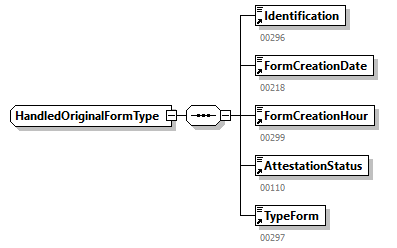

DateTechnicalAccident	HandledOriginalFormType
DclInformation	HandledReferenceType
DeclarationOnHonour	IndividualUnempPeriodType

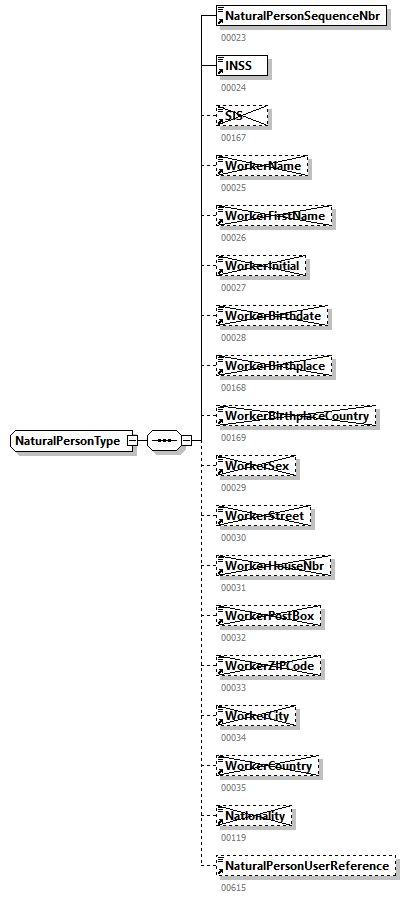

Denomination	NaturalPersonType
DepartmentIdentification	NOSSLPAEmployerDeclarationLinkType

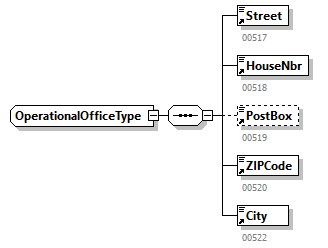

DepartmentName	OperationalOfficeType
EffectiveUnemployment	ReferenceType
EffectiveUnemploymentReason	RiskIdentificationType
EmailAddress	SenderType
EmployerCity	SiteAddressType
EmployerCountry	SocialActionUnemploymentType
EmployerDeclarationLink	TemporaryEmploymentAgencyType
EmployerDenomination	TempUnempBadWeatherType
EmployerHouseNbr	TempUnempEconomicalType
EmployerPostBox	TempUnemploymentPeriodType
EmployerStreet	TempUnempMajorForceType
EmployerZIPCode	TempUnempSocialActionType
FaxNbr	TempUnempTechnicalAccidentType
FirstName

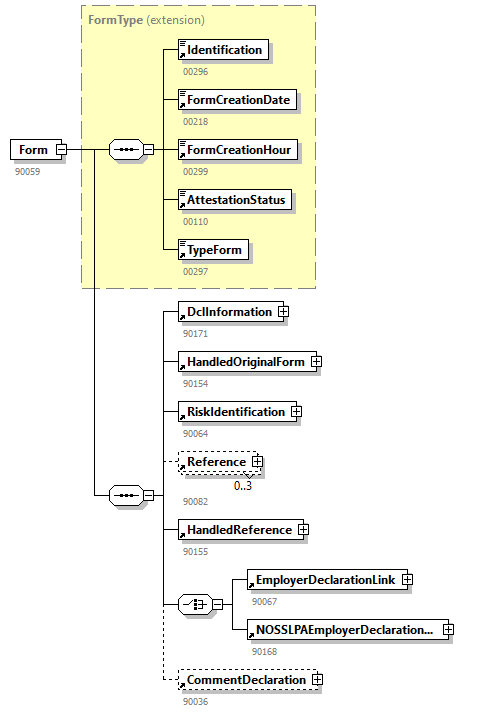

Form
FormCreationDate
FormCreationHour
GSMNbr

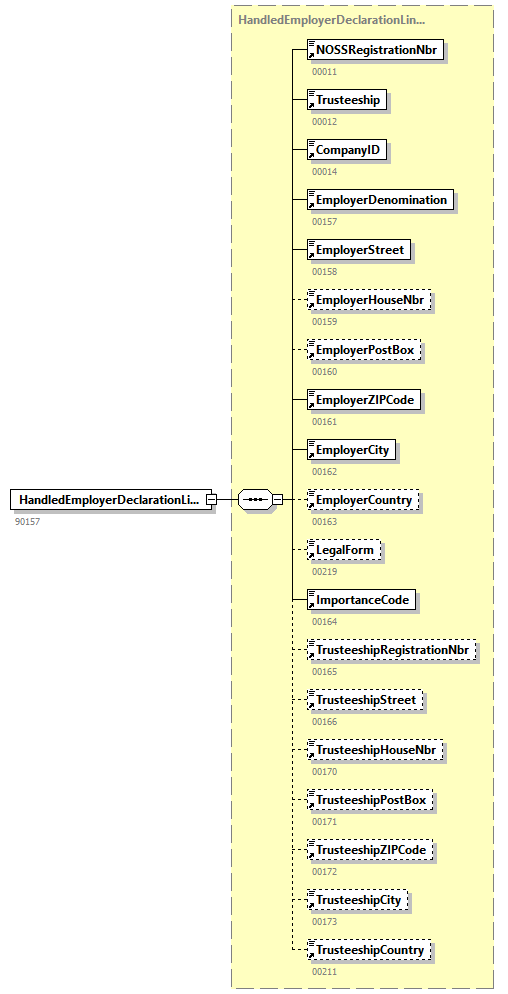

HandledEmployerDeclarationLink
HandledNaturalPerson

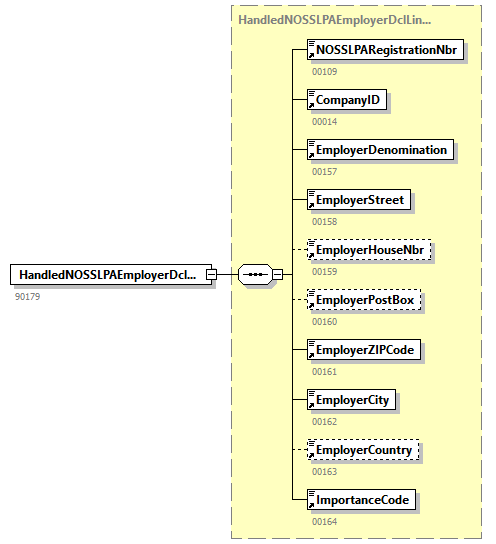

HandledNOSSLPAEmployerDclLink
HandledOriginalForm

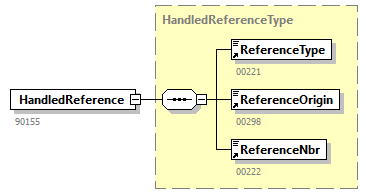

HandledReference
HouseNbr
Identification
IdentificationOfRisk
ImportanceCode
IndividualUnempEndingDate
IndividualUnempPeriod
INSS
JointCommissionLevel
JointCommissionNbr
Language
LanguageCodePdf
LegalForm
MajorForceReason
Name
Nationality
NaturalPerson
NaturalPersonSequenceNbr
NaturalPersonUserReference
NOSSLPAEmployerDeclarationLink
NOSSLPARegistrationNbr
NOSSRegistrationNbr

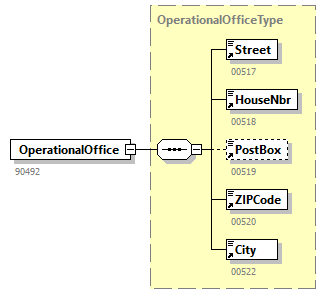

OperationalOffice
OriolusSubStatusRip
OriolusSuccessCode
PhoneNbr
PostBox
PreviousINSS
ReasonTempUnemp

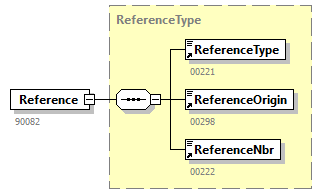

Reference
ReferenceNbr
ReferenceOrigin

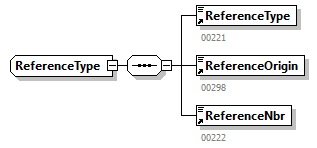

ReferenceType
RegimeTempUnemp
RiskIdentification

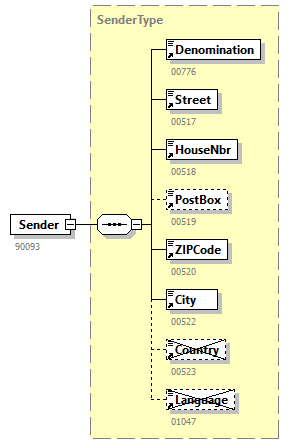

Sender
SIS

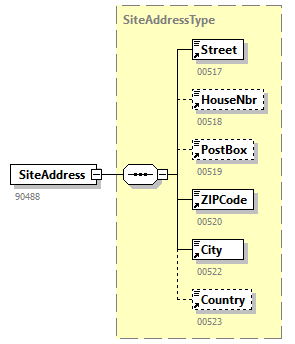

SiteAddress
SocialActionDetails

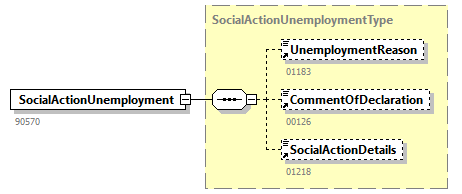

SocialActionUnemployment
Street
TechnicalAccident
TemporaryEmploymentAgency

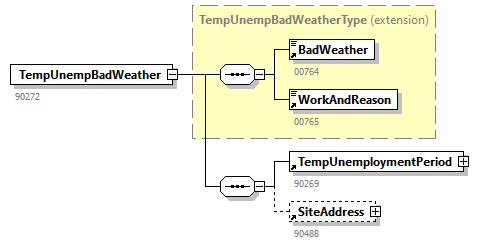

TempUnempBadWeather
TempUnempEconomical
TempUnemploymentEndingDate

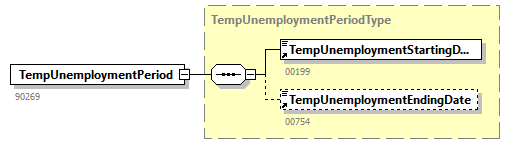

TempUnemploymentPeriod
TempUnemploymentStartingDate

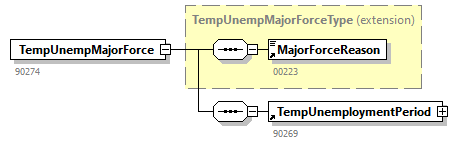

TempUnempMajorForce

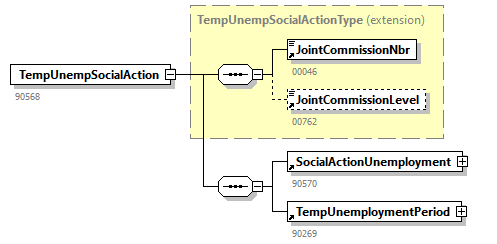

TempUnempSocialAction

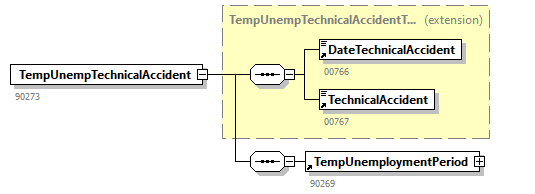

TempUnempTechnicalAccident
Trusteeship
TrusteeshipCity
TrusteeshipCountry
TrusteeshipHouseNbr
TrusteeshipPostBox
TrusteeshipRegistrationNbr
TrusteeshipStreet
TrusteeshipZIPCode
TWCT501
TypeForm
UnemploymentReason
WorkAndReason
WorkerBirthdate
WorkerBirthplace
WorkerBirthplaceCountry
WorkerCity
WorkerCountry
WorkerFirstName
WorkerHouseNbr
WorkerInitial
WorkerName
WorkerPostBox
WorkerSex
WorkerStreet
WorkerZIPCode
ZIPCode

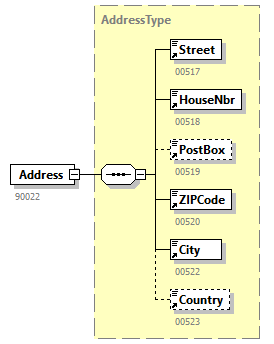

element Address

diagram
type	AddressType
properties	content  complex
children	StreetHouseNbrPostBoxZIPCodeCityCountry
used by	element  CoordinatesContactPerson
annotation	documentation 90022
source	<xs:element name="Address" type="AddressType">   <xs:annotation>     <xs:documentation>90022</xs:documentation>   </xs:annotation> </xs:element>

element AttestationStatus

diagram
type	restriction of xs:integer
properties	content  simple

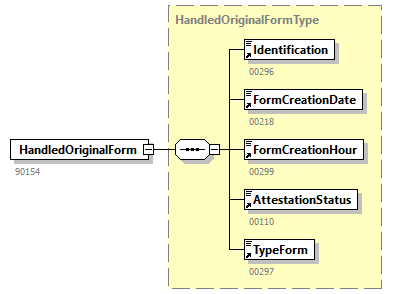

used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation totalDigits  1 enumeration  0 enumeration  1 enumeration  3
annotation	documentation 00110
source	<xs:element name="AttestationStatus">   <xs:annotation>     <xs:documentation>00110</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BadWeather

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  TempUnempBadWeatherType
facets	Kind  Value  Annotation maxLength  40 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00764
source	<xs:element name="BadWeather">   <xs:annotation>     <xs:documentation>00764</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BisFlagIndication

diagram
type	restriction of xs:integer
properties	content  simple

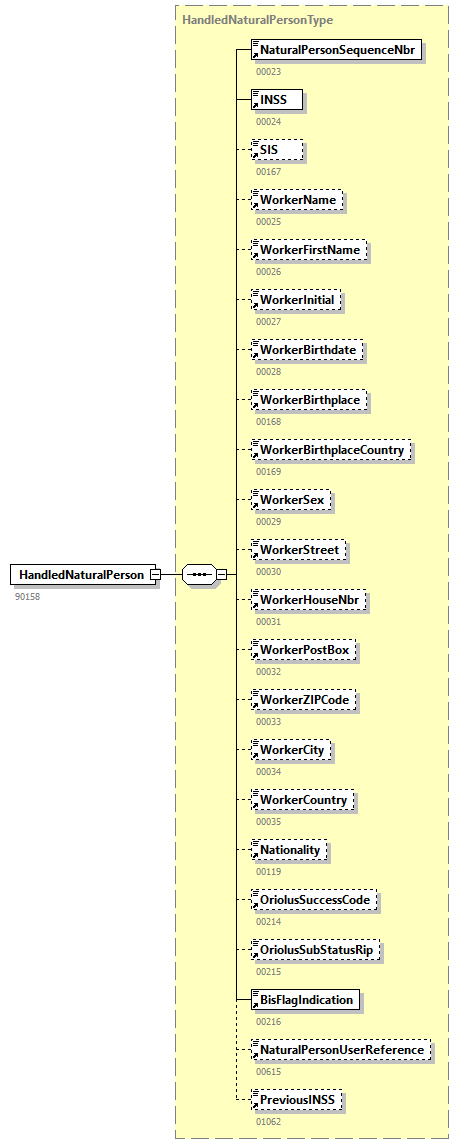

used by	complexType  HandledNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00216
source	<xs:element name="BisFlagIndication">   <xs:annotation>     <xs:documentation>00216</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element City

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AddressTypeOperationalOfficeTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation maxLength  40 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00522
source	<xs:element name="City">   <xs:annotation>     <xs:documentation>00522</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CommentDeclaration

diagram
type	CommentDeclarationType
properties	content  complex
children	CommentOfDeclaration
used by	element  Form
annotation	documentation 90036
source	<xs:element name="CommentDeclaration" type="CommentDeclarationType">   <xs:annotation>     <xs:documentation>90036</xs:documentation>   </xs:annotation> </xs:element>

element CommentOfDeclaration

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  CommentDeclarationTypeSocialActionUnemploymentType
facets	Kind  Value  Annotation maxLength  180 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00126
source	<xs:element name="CommentOfDeclaration">   <xs:annotation>     <xs:documentation>00126</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="180"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

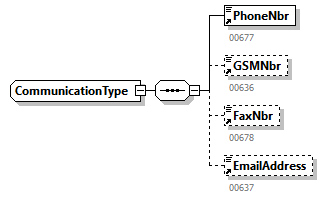

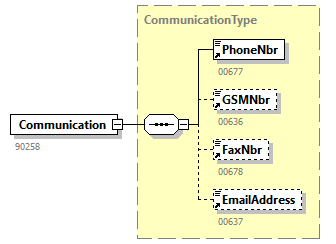

element Communication

diagram
type	CommunicationType
properties	content  complex
children	PhoneNbrGSMNbrFaxNbrEmailAddress
used by	element  CoordinatesContactPerson
annotation	documentation 90258
source	<xs:element name="Communication" type="CommunicationType">   <xs:annotation>     <xs:documentation>90258</xs:documentation>   </xs:annotation> </xs:element>

element CommunicationSourceIndicator

diagram
type	restriction of xs:integer
properties	content  simple

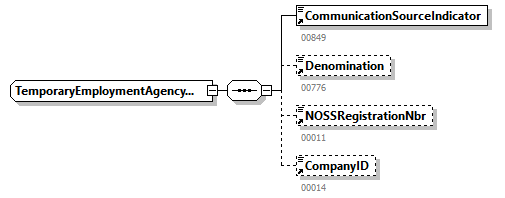

used by	complexType  TemporaryEmploymentAgencyType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00849
source	<xs:element name="CommunicationSourceIndicator">   <xs:annotation>     <xs:documentation>00849</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompanyID

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  EmployerDeclarationLinkTypeHandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkTypeNOSSLPAEmployerDeclarationLinkTypeTemporaryEmploymentAgencyType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1999999943 totalDigits  10 pattern  0|\d{9}|\d{10}
annotation	documentation 00014 appinfo CompanyID_conversion1 appinfo xs:companyId
source	<xs:element name="CompanyID">   <xs:annotation>     <xs:documentation>00014</xs:documentation>     <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1999999943"/>       <xs:totalDigits value="10"/>       <xs:pattern value="0|\d{9}|\d{10}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

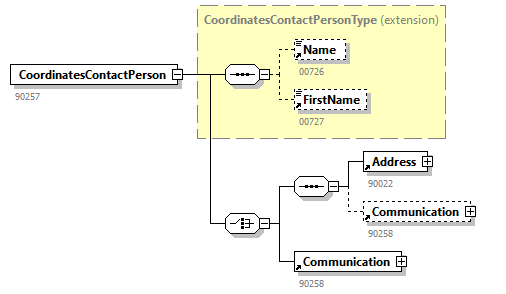

element CoordinatesContactPerson

diagram
type	extension of CoordinatesContactPersonType
properties	content  complex
children	NameFirstNameAddressCommunication
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90257
source	<xs:element name="CoordinatesContactPerson">   <xs:annotation>     <xs:documentation>90257</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CoordinatesContactPersonType">         <xs:choice>           <xs:sequence>             <xs:element ref="Address"/>             <xs:element ref="Communication" minOccurs="0"/>           </xs:sequence>           <xs:element ref="Communication"/>         </xs:choice>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element Country

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  AddressTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00523
source	<xs:element name="Country">   <xs:annotation>     <xs:documentation>00523</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DateTechnicalAccident

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  TempUnempTechnicalAccidentType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00766
source	<xs:element name="DateTechnicalAccident">   <xs:annotation>     <xs:documentation>00766</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DclInformation

diagram
type	DclInformationType
properties	content  complex
children	LanguageCodePdf
used by	element  Form
annotation	documentation 90171
source	<xs:element name="DclInformation" type="DclInformationType">   <xs:annotation>     <xs:documentation>90171</xs:documentation>   </xs:annotation> </xs:element>

element DeclarationOnHonour

diagram
type	restriction of xs:integer
properties	content  simple

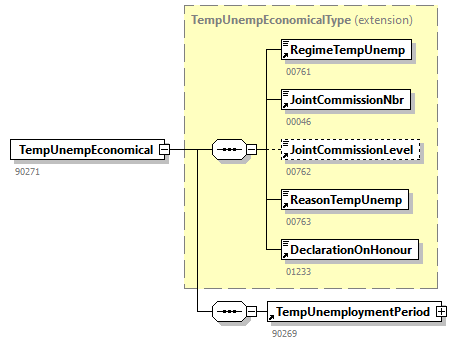

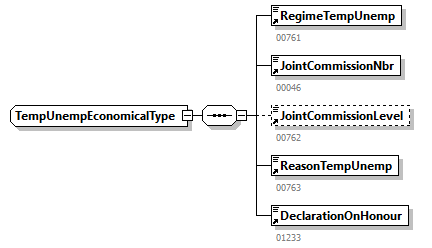

used by	complexType  TempUnempEconomicalType
facets	Kind  Value  Annotation totalDigits  1 enumeration  1
annotation	documentation 01233
source	<xs:element name="DeclarationOnHonour">   <xs:annotation>     <xs:documentation>01233</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Denomination

diagram
type	restriction of xs:string
properties	content  simple

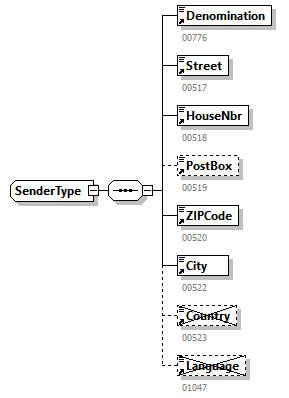

used by	complexTypes  SenderTypeTemporaryEmploymentAgencyType
facets	Kind  Value  Annotation maxLength  96
annotation	documentation 00776
source	<xs:element name="Denomination">   <xs:annotation>     <xs:documentation>00776</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="96"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DepartmentIdentification

diagram
type	DepartmentIdentificationType
properties	content  complex
children	DepartmentName
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90268
source	<xs:element name="DepartmentIdentification" type="DepartmentIdentificationType">   <xs:annotation>     <xs:documentation>90268</xs:documentation>   </xs:annotation> </xs:element>

element DepartmentName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  DepartmentIdentificationType
facets	Kind  Value  Annotation minLength  1 maxLength  30
annotation	documentation 00607
source	<xs:element name="DepartmentName">   <xs:annotation>     <xs:documentation>00607</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="30"/>     </xs:restriction>   </xs:simpleType> </xs:element>

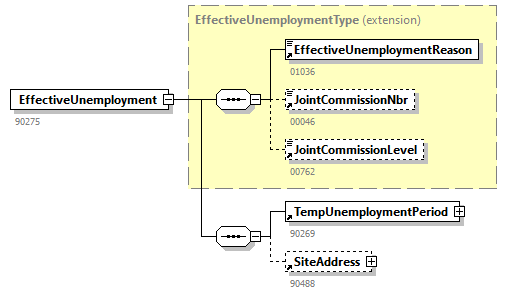

element EffectiveUnemployment

diagram
type	extension of EffectiveUnemploymentType
properties	content  complex
children	EffectiveUnemploymentReasonJointCommissionNbrJointCommissionLevelTempUnemploymentPeriodSiteAddress
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90275
source	<xs:element name="EffectiveUnemployment">   <xs:annotation>     <xs:documentation>90275</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="EffectiveUnemploymentType">         <xs:sequence>           <xs:element ref="TempUnemploymentPeriod"/>           <xs:element ref="SiteAddress" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element EffectiveUnemploymentReason

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  EffectiveUnemploymentType
facets	Kind  Value  Annotation totalDigits  2 enumeration  60 enumeration  61
annotation	documentation 01036
source	<xs:element name="EffectiveUnemploymentReason">   <xs:annotation>     <xs:documentation>01036</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmailAddress

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  60
annotation	documentation 00637
source	<xs:element name="EmailAddress">   <xs:annotation>     <xs:documentation>00637</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="60"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerCity

diagram
type	restriction of xs:string
properties	content  simple

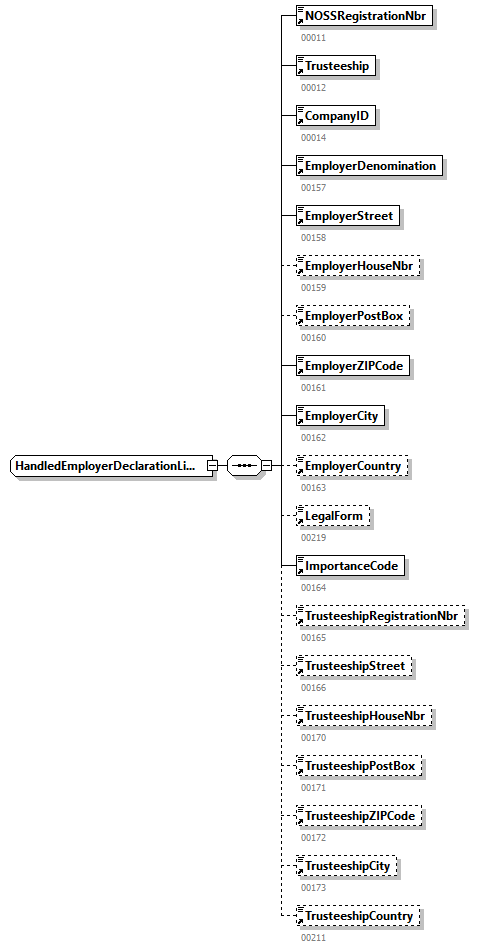

used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  40
annotation	documentation 00162
source	<xs:element name="EmployerCity">   <xs:annotation>     <xs:documentation>00162</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerCountry

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00163
source	<xs:element name="EmployerCountry">   <xs:annotation>     <xs:documentation>00163</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerDeclarationLink

diagram
type	extension of EmployerDeclarationLinkType
properties	content  complex
children	NOSSRegistrationNbrTrusteeshipCompanyIDHandledEmployerDeclarationLinkOperationalOfficeCoordinatesContactPersonSenderTemporaryEmploymentAgencyNaturalPersonDepartmentIdentificationTempUnempEconomicalTempUnempBadWeatherTempUnempTechnicalAccidentTempUnempMajorForceEffectiveUnemploymentTempUnempSocialAction
used by	element  Form
annotation	documentation 90067
source	<xs:element name="EmployerDeclarationLink">   <xs:annotation>     <xs:documentation>90067</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="EmployerDeclarationLinkType">         <xs:sequence>           <xs:element ref="HandledEmployerDeclarationLink" minOccurs="1" maxOccurs="1"/>           <xs:element ref="OperationalOffice" minOccurs="0"/>           <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>           <xs:element ref="Sender" minOccurs="0"/>           <xs:element ref="TemporaryEmploymentAgency"/>           <xs:element ref="NaturalPerson" minOccurs="0" maxOccurs="2000"/>           <xs:element ref="DepartmentIdentification" minOccurs="0"/>           <xs:choice>             <xs:element ref="TempUnempEconomical" minOccurs="0"/>             <xs:element ref="TempUnempBadWeather" minOccurs="0"/>             <xs:element ref="TempUnempTechnicalAccident" minOccurs="0"/>             <xs:element ref="TempUnempMajorForce" minOccurs="0"/>             <xs:element ref="EffectiveUnemployment" minOccurs="0"/>             <xs:element ref="TempUnempSocialAction" minOccurs="0"/>           </xs:choice>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element EmployerDenomination

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  96
annotation	documentation 00157
source	<xs:element name="EmployerDenomination">   <xs:annotation>     <xs:documentation>00157</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="96"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerHouseNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  10
annotation	documentation 00159
source	<xs:element name="EmployerHouseNbr">   <xs:annotation>     <xs:documentation>00159</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerPostBox

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  4
annotation	documentation 00160
source	<xs:element name="EmployerPostBox">   <xs:annotation>     <xs:documentation>00160</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerStreet

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  35
annotation	documentation 00158
source	<xs:element name="EmployerStreet">   <xs:annotation>     <xs:documentation>00158</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="35"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerZIPCode

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation maxLength  9
annotation	documentation 00161
source	<xs:element name="EmployerZIPCode">   <xs:annotation>     <xs:documentation>00161</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FaxNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00678
source	<xs:element name="FaxNbr">   <xs:annotation>     <xs:documentation>00678</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FirstName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CoordinatesContactPersonType
facets	Kind  Value  Annotation maxLength  24 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00727
source	<xs:element name="FirstName">   <xs:annotation>     <xs:documentation>00727</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="24"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

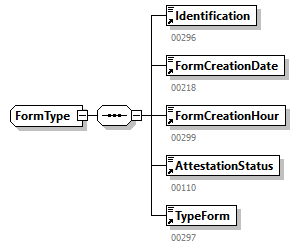

element Form

diagram
type	extension of FormType
properties	content  complex
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormDclInformationHandledOriginalFormRiskIdentificationReferenceHandledReferenceEmployerDeclarationLinkNOSSLPAEmployerDeclarationLinkCommentDeclaration
used by	element  TWCT501
annotation	documentation 90059
source	<xs:element name="Form">   <xs:annotation>     <xs:documentation>90059</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="FormType">         <xs:sequence>           <xs:element ref="DclInformation"/>           <xs:element ref="HandledOriginalForm" minOccurs="1" maxOccurs="1"/>           <xs:element ref="RiskIdentification"/>           <xs:element ref="Reference" minOccurs="0" maxOccurs="3"/>           <xs:element ref="HandledReference" minOccurs="1" maxOccurs="1"/>           <xs:choice>             <xs:element ref="EmployerDeclarationLink"/>             <xs:element ref="NOSSLPAEmployerDeclarationLink"/>           </xs:choice>           <xs:element ref="CommentDeclaration" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element FormCreationDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation minInclusive  2005-07-01 pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00218 appinfo Date_conversion1
source	<xs:element name="FormCreationDate">   <xs:annotation>     <xs:documentation>00218</xs:documentation>     <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:minInclusive value="2005-07-01"/>       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FormCreationHour

diagram
type	restriction of xs:time
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation	documentation 00299 appinfo Time_conversion1
source	<xs:element name="FormCreationHour">   <xs:annotation>     <xs:documentation>00299</xs:documentation>     <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:time">       <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GSMNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00636
source	<xs:element name="GSMNbr">   <xs:annotation>     <xs:documentation>00636</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HandledEmployerDeclarationLink

diagram
type	HandledEmployerDeclarationLinkType
properties	content  complex
children	NOSSRegistrationNbrTrusteeshipCompanyIDEmployerDenominationEmployerStreetEmployerHouseNbrEmployerPostBoxEmployerZIPCodeEmployerCityEmployerCountryLegalFormImportanceCodeTrusteeshipRegistrationNbrTrusteeshipStreetTrusteeshipHouseNbrTrusteeshipPostBoxTrusteeshipZIPCodeTrusteeshipCityTrusteeshipCountry
used by	element  EmployerDeclarationLink
annotation	documentation 90157
source	<xs:element name="HandledEmployerDeclarationLink" type="HandledEmployerDeclarationLinkType">   <xs:annotation>     <xs:documentation>90157</xs:documentation>   </xs:annotation> </xs:element>

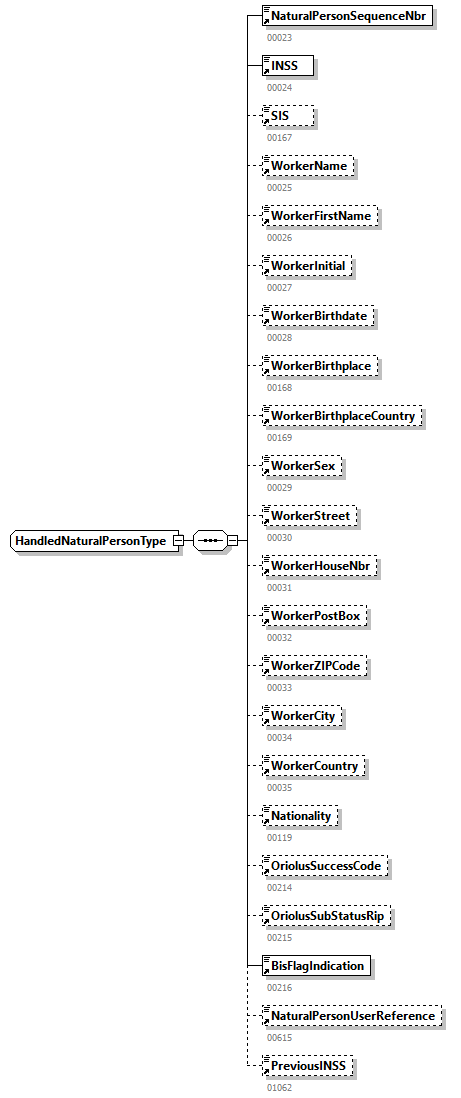

element HandledNaturalPerson

diagram
type	HandledNaturalPersonType
properties	content  complex
children	NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityOriolusSuccessCodeOriolusSubStatusRipBisFlagIndicationNaturalPersonUserReferencePreviousINSS
used by	element  NaturalPerson
annotation	documentation 90158
source	<xs:element name="HandledNaturalPerson" type="HandledNaturalPersonType">   <xs:annotation>     <xs:documentation>90158</xs:documentation>   </xs:annotation> </xs:element>

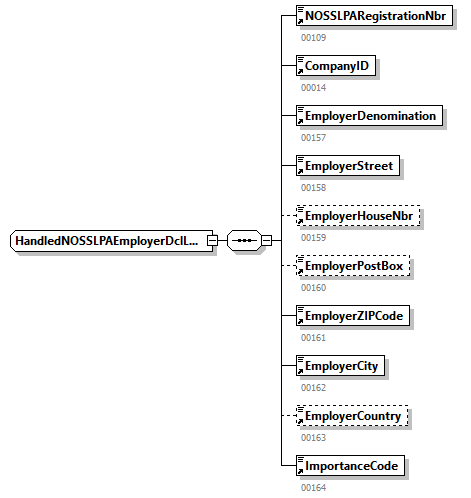

element HandledNOSSLPAEmployerDclLink

diagram
type	HandledNOSSLPAEmployerDclLinkType
properties	content  complex
children	NOSSLPARegistrationNbrCompanyIDEmployerDenominationEmployerStreetEmployerHouseNbrEmployerPostBoxEmployerZIPCodeEmployerCityEmployerCountryImportanceCode
used by	element  NOSSLPAEmployerDeclarationLink
annotation	documentation 90179
source	<xs:element name="HandledNOSSLPAEmployerDclLink" type="HandledNOSSLPAEmployerDclLinkType">   <xs:annotation>     <xs:documentation>90179</xs:documentation>   </xs:annotation> </xs:element>

element HandledOriginalForm

diagram
type	HandledOriginalFormType
properties	content  complex
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by	element  Form
annotation	documentation 90154
source	<xs:element name="HandledOriginalForm" type="HandledOriginalFormType">   <xs:annotation>     <xs:documentation>90154</xs:documentation>   </xs:annotation> </xs:element>

element HandledReference

diagram
type	HandledReferenceType
properties	content  complex
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  Form
annotation	documentation 90155
source	<xs:element name="HandledReference" type="HandledReferenceType">   <xs:annotation>     <xs:documentation>90155</xs:documentation>   </xs:annotation> </xs:element>

element HouseNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AddressTypeOperationalOfficeTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation maxLength  10 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00518
source	<xs:element name="HouseNbr">   <xs:annotation>     <xs:documentation>00518</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="10"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Identification

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation maxLength  7
annotation	documentation 00296
source	<xs:element name="Identification">   <xs:annotation>     <xs:documentation>00296</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IdentificationOfRisk

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  RiskIdentificationType
facets	Kind  Value  Annotation totalDigits  3 enumeration  001 enumeration  002 enumeration  003 enumeration  004 enumeration  005 enumeration  006
annotation	documentation 00430
source	<xs:element name="IdentificationOfRisk">   <xs:annotation>     <xs:documentation>00430</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="3"/>       <xs:enumeration value="001"/>       <xs:enumeration value="002"/>       <xs:enumeration value="003"/>       <xs:enumeration value="004"/>       <xs:enumeration value="005"/>       <xs:enumeration value="006"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ImportanceCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledEmployerDeclarationLinkTypeHandledNOSSLPAEmployerDclLinkType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9 totalDigits  1
annotation	documentation 00164
source	<xs:element name="ImportanceCode">   <xs:annotation>     <xs:documentation>00164</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="9"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IndividualUnempEndingDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  IndividualUnempPeriodType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00768
source	<xs:element name="IndividualUnempEndingDate">   <xs:annotation>     <xs:documentation>00768</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IndividualUnempPeriod

diagram
type	IndividualUnempPeriodType
properties	content  complex
children	IndividualUnempEndingDate
used by	element  NaturalPerson
annotation	documentation 90276
source	<xs:element name="IndividualUnempPeriod" type="IndividualUnempPeriodType">   <xs:annotation>     <xs:documentation>90276</xs:documentation>   </xs:annotation> </xs:element>

element INSS

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation totalDigits  11 pattern  \d{11}
annotation	documentation 00024 appinfo Inss_conversion1 appinfo xs:inss
source	<xs:element name="INSS">   <xs:annotation>     <xs:documentation>00024</xs:documentation>     <xs:appinfo source="ConversionID">Inss_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:inss</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="11"/>       <xs:pattern value="\d{11}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element JointCommissionLevel

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  EffectiveUnemploymentTypeTempUnempEconomicalTypeTempUnempSocialActionType
facets	Kind  Value  Annotation maxLength  3 pattern  \d{3}
annotation	documentation 00762
source	<xs:element name="JointCommissionLevel">   <xs:annotation>     <xs:documentation>00762</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="3"/>       <xs:pattern value="\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element JointCommissionNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  EffectiveUnemploymentTypeTempUnempEconomicalTypeTempUnempSocialActionType
facets	Kind  Value  Annotation minLength  1 maxLength  6 pattern  \d{3}|\d{3}(.)\d{2}
annotation	documentation 00046
source	<xs:element name="JointCommissionNbr">   <xs:annotation>     <xs:documentation>00046</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="6"/>       <xs:pattern value="\d{3}|\d{3}(.)\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Language

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  SenderType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  5 totalDigits  1
annotation	documentation 01047
source	<xs:element name="Language">   <xs:annotation>     <xs:documentation>01047</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="5"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element LanguageCodePdf

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  DclInformationType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00156
source	<xs:element name="LanguageCodePdf">   <xs:annotation>     <xs:documentation>00156</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element LegalForm

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00219
source	<xs:element name="LegalForm">   <xs:annotation>     <xs:documentation>00219</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element MajorForceReason

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  TempUnempMajorForceType
facets	Kind  Value  Annotation maxLength  60 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00223
source	<xs:element name="MajorForceReason">   <xs:annotation>     <xs:documentation>00223</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="60"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Name

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CoordinatesContactPersonType
facets	Kind  Value  Annotation maxLength  48 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00726
source	<xs:element name="Name">   <xs:annotation>     <xs:documentation>00726</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="48"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Nationality

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00119
source	<xs:element name="Nationality">   <xs:annotation>     <xs:documentation>00119</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NaturalPerson

diagram
type	extension of NaturalPersonType
properties	content  complex
children	NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityNaturalPersonUserReferenceHandledNaturalPersonIndividualUnempPeriod
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90017
source	<xs:element name="NaturalPerson">   <xs:annotation>     <xs:documentation>90017</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="NaturalPersonType">         <xs:sequence>           <xs:element ref="HandledNaturalPerson" minOccurs="1" maxOccurs="1"/>           <xs:element ref="IndividualUnempPeriod" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element NaturalPersonSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999999 totalDigits  7
annotation	documentation 00023
source	<xs:element name="NaturalPersonSequenceNbr">   <xs:annotation>     <xs:documentation>00023</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="9999999"/>       <xs:totalDigits value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NaturalPersonUserReference

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00615
source	<xs:element name="NaturalPersonUserReference">   <xs:annotation>     <xs:documentation>00615</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

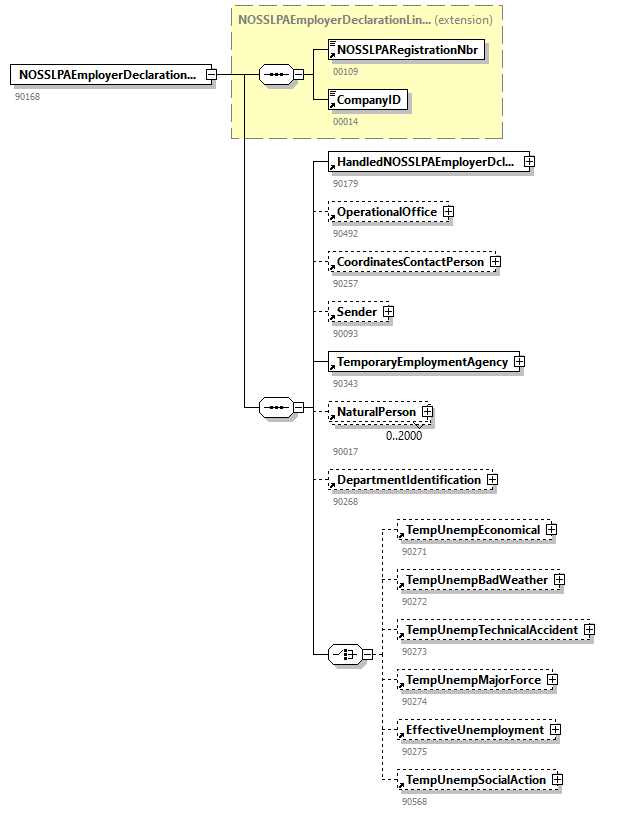

element NOSSLPAEmployerDeclarationLink

diagram
type	extension of NOSSLPAEmployerDeclarationLinkType
properties	content  complex
children	NOSSLPARegistrationNbrCompanyIDHandledNOSSLPAEmployerDclLinkOperationalOfficeCoordinatesContactPersonSenderTemporaryEmploymentAgencyNaturalPersonDepartmentIdentificationTempUnempEconomicalTempUnempBadWeatherTempUnempTechnicalAccidentTempUnempMajorForceEffectiveUnemploymentTempUnempSocialAction
used by	element  Form
annotation	documentation 90168
source	<xs:element name="NOSSLPAEmployerDeclarationLink">   <xs:annotation>     <xs:documentation>90168</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="NOSSLPAEmployerDeclarationLinkType">         <xs:sequence>           <xs:element ref="HandledNOSSLPAEmployerDclLink" minOccurs="1" maxOccurs="1"/>           <xs:element ref="OperationalOffice" minOccurs="0"/>           <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>           <xs:element ref="Sender" minOccurs="0"/>           <xs:element ref="TemporaryEmploymentAgency"/>           <xs:element ref="NaturalPerson" minOccurs="0" maxOccurs="2000"/>           <xs:element ref="DepartmentIdentification" minOccurs="0"/>           <xs:choice>             <xs:element ref="TempUnempEconomical" minOccurs="0"/>             <xs:element ref="TempUnempBadWeather" minOccurs="0"/>             <xs:element ref="TempUnempTechnicalAccident" minOccurs="0"/>             <xs:element ref="TempUnempMajorForce" minOccurs="0"/>             <xs:element ref="EffectiveUnemployment" minOccurs="0"/>             <xs:element ref="TempUnempSocialAction" minOccurs="0"/>           </xs:choice>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element NOSSLPARegistrationNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNOSSLPAEmployerDclLinkTypeNOSSLPAEmployerDeclarationLinkType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999926 totalDigits  8
annotation	documentation 00109 appinfo NossAPL_conversion1 appinfo xs:nossLpaRegistrationNbr
source	<xs:element name="NOSSLPARegistrationNbr">   <xs:annotation>     <xs:documentation>00109</xs:documentation>     <xs:appinfo source="ConversionID">NossAPL_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:nossLpaRegistrationNbr</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999926"/>       <xs:totalDigits value="8"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NOSSRegistrationNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  EmployerDeclarationLinkTypeHandledEmployerDeclarationLinkTypeTemporaryEmploymentAgencyType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  199999934 totalDigits  9
annotation	documentation 00011 appinfo Noss_conversion1 appinfo xs:nossRegistrationNbr
source	<xs:element name="NOSSRegistrationNbr">   <xs:annotation>     <xs:documentation>00011</xs:documentation>     <xs:appinfo source="ConversionID">Noss_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:nossRegistrationNbr</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="199999934"/>       <xs:totalDigits value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element OperationalOffice

diagram
type	OperationalOfficeType
properties	content  complex
children	StreetHouseNbrPostBoxZIPCodeCity
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90492
source	<xs:element name="OperationalOffice" type="OperationalOfficeType">   <xs:annotation>     <xs:documentation>90492</xs:documentation>   </xs:annotation> </xs:element>

element OriolusSubStatusRip

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HandledNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  5 totalDigits  1
annotation	documentation 00215
source	<xs:element name="OriolusSubStatusRip">   <xs:annotation>     <xs:documentation>00215</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="5"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element OriolusSuccessCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HandledNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  2 totalDigits  1
annotation	documentation 00214
source	<xs:element name="OriolusSuccessCode">   <xs:annotation>     <xs:documentation>00214</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="2"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PhoneNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00677
source	<xs:element name="PhoneNbr">   <xs:annotation>     <xs:documentation>00677</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PostBox

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AddressTypeOperationalOfficeTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation maxLength  4
annotation	documentation 00519
source	<xs:element name="PostBox">   <xs:annotation>     <xs:documentation>00519</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PreviousINSS

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HandledNaturalPersonType
facets	Kind  Value  Annotation totalDigits  11 pattern  [0]|\d{11}
annotation	documentation 01062 appinfo Inss_conversion1 appinfo xs:inss
source	<xs:element name="PreviousINSS">   <xs:annotation>     <xs:documentation>01062</xs:documentation>     <xs:appinfo source="ConversionID">Inss_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:inss</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="11"/>       <xs:pattern value="[0]|\d{11}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ReasonTempUnemp

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  TempUnempEconomicalType
facets	Kind  Value  Annotation maxLength  40 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00763
source	<xs:element name="ReasonTempUnemp">   <xs:annotation>     <xs:documentation>00763</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Reference

diagram
type	ReferenceType
properties	content  complex
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  Form
annotation	documentation 90082
source	<xs:element name="Reference" type="ReferenceType">   <xs:annotation>     <xs:documentation>90082</xs:documentation>   </xs:annotation> </xs:element>

element ReferenceNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledReferenceTypeReferenceType
facets	Kind  Value  Annotation minLength  1 maxLength  20
annotation	documentation 00222 appinfo TicketNumber_conversion1
source	<xs:element name="ReferenceNbr">   <xs:annotation>     <xs:documentation>00222</xs:documentation>     <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ReferenceOrigin

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledReferenceTypeReferenceType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2 totalDigits  1
annotation	documentation 00298
source	<xs:element name="ReferenceOrigin">   <xs:annotation>     <xs:documentation>00298</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ReferenceType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledReferenceTypeReferenceType
facets	Kind  Value  Annotation totalDigits  1 enumeration  1 enumeration  3 enumeration  6
annotation	documentation 00221
source	<xs:element name="ReferenceType">   <xs:annotation>     <xs:documentation>00221</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="1"/>       <xs:enumeration value="3"/>       <xs:enumeration value="6"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RegimeTempUnemp

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  TempUnempEconomicalType
facets	Kind  Value  Annotation totalDigits  1 enumeration  1 enumeration  2 enumeration  3
annotation	documentation 00761
source	<xs:element name="RegimeTempUnemp">   <xs:annotation>     <xs:documentation>00761</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RiskIdentification

diagram
type	RiskIdentificationType
properties	content  complex
children	IdentificationOfRisk
used by	element  Form
annotation	documentation 90064
source	<xs:element name="RiskIdentification" type="RiskIdentificationType">   <xs:annotation>     <xs:documentation>90064</xs:documentation>   </xs:annotation> </xs:element>

element Sender

diagram
type	SenderType
properties	content  complex
children	DenominationStreetHouseNbrPostBoxZIPCodeCityCountryLanguage
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90093
source	<xs:element name="Sender" type="SenderType">   <xs:annotation>     <xs:documentation>90093</xs:documentation>   </xs:annotation> </xs:element>

element SIS

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9999999999 totalDigits  10
annotation	documentation 00167
source	<xs:element name="SIS">   <xs:annotation>     <xs:documentation>00167</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9999999999"/>       <xs:totalDigits value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SiteAddress

diagram
type	SiteAddressType
properties	content  complex
children	StreetHouseNbrPostBoxZIPCodeCityCountry
used by	elements  EffectiveUnemploymentTempUnempBadWeather
annotation	documentation 90488
source	<xs:element name="SiteAddress" type="SiteAddressType">   <xs:annotation>     <xs:documentation>90488</xs:documentation>   </xs:annotation> </xs:element>

element SocialActionDetails

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialActionUnemploymentType
facets	Kind  Value  Annotation maxLength  100
annotation	documentation 01218
source	<xs:element name="SocialActionDetails">   <xs:annotation>     <xs:documentation>01218</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="100"/>     </xs:restriction>   </xs:simpleType> </xs:element>

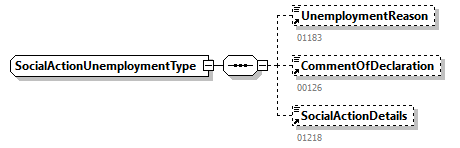

element SocialActionUnemployment

diagram
type	SocialActionUnemploymentType
properties	content  complex
children	UnemploymentReasonCommentOfDeclarationSocialActionDetails
used by	element  TempUnempSocialAction
annotation	documentation 90570
source	<xs:element name="SocialActionUnemployment" type="SocialActionUnemploymentType">   <xs:annotation>     <xs:documentation>90570</xs:documentation>   </xs:annotation> </xs:element>

element Street

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AddressTypeOperationalOfficeTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation maxLength  42 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00517
source	<xs:element name="Street">   <xs:annotation>     <xs:documentation>00517</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="42"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TechnicalAccident

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  TempUnempTechnicalAccidentType
facets	Kind  Value  Annotation maxLength  80 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00767
source	<xs:element name="TechnicalAccident">   <xs:annotation>     <xs:documentation>00767</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="80"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TemporaryEmploymentAgency

diagram
type	TemporaryEmploymentAgencyType
properties	content  complex
children	CommunicationSourceIndicatorDenominationNOSSRegistrationNbrCompanyID
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90343
source	<xs:element name="TemporaryEmploymentAgency" type="TemporaryEmploymentAgencyType">   <xs:annotation>     <xs:documentation>90343</xs:documentation>   </xs:annotation> </xs:element>

element TempUnempBadWeather

diagram
type	extension of TempUnempBadWeatherType
properties	content  complex
children	BadWeatherWorkAndReasonTempUnemploymentPeriodSiteAddress
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90272
source	<xs:element name="TempUnempBadWeather">   <xs:annotation>     <xs:documentation>90272</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TempUnempBadWeatherType">         <xs:sequence>           <xs:element ref="TempUnemploymentPeriod"/>           <xs:element ref="SiteAddress" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element TempUnempEconomical

diagram
type	extension of TempUnempEconomicalType
properties	content  complex
children	RegimeTempUnempJointCommissionNbrJointCommissionLevelReasonTempUnempDeclarationOnHonourTempUnemploymentPeriod
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90271
source	<xs:element name="TempUnempEconomical">   <xs:annotation>     <xs:documentation>90271</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TempUnempEconomicalType">         <xs:sequence>           <xs:element ref="TempUnemploymentPeriod"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element TempUnemploymentEndingDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  TempUnemploymentPeriodType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00754
source	<xs:element name="TempUnemploymentEndingDate">   <xs:annotation>     <xs:documentation>00754</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TempUnemploymentPeriod

diagram
type	TempUnemploymentPeriodType
properties	content  complex
children	TempUnemploymentStartingDateTempUnemploymentEndingDate
used by	elements  EffectiveUnemploymentTempUnempBadWeatherTempUnempEconomicalTempUnempMajorForceTempUnempSocialActionTempUnempTechnicalAccident
annotation	documentation 90269
source	<xs:element name="TempUnemploymentPeriod" type="TempUnemploymentPeriodType">   <xs:annotation>     <xs:documentation>90269</xs:documentation>   </xs:annotation> </xs:element>

element TempUnemploymentStartingDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  TempUnemploymentPeriodType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00199 appinfo Date_conversion1
source	<xs:element name="TempUnemploymentStartingDate">   <xs:annotation>     <xs:documentation>00199</xs:documentation>     <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TempUnempMajorForce

diagram
type	extension of TempUnempMajorForceType
properties	content  complex
children	MajorForceReasonTempUnemploymentPeriod
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90274
source	<xs:element name="TempUnempMajorForce">   <xs:annotation>     <xs:documentation>90274</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TempUnempMajorForceType">         <xs:sequence>           <xs:element ref="TempUnemploymentPeriod"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element TempUnempSocialAction

diagram
type	extension of TempUnempSocialActionType
properties	content  complex
children	JointCommissionNbrJointCommissionLevelSocialActionUnemploymentTempUnemploymentPeriod
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90568
source	<xs:element name="TempUnempSocialAction">   <xs:annotation>     <xs:documentation>90568</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TempUnempSocialActionType">         <xs:sequence>           <xs:element ref="SocialActionUnemployment"/>           <xs:element ref="TempUnemploymentPeriod"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element TempUnempTechnicalAccident

diagram
type	extension of TempUnempTechnicalAccidentType
properties	content  complex
children	DateTechnicalAccidentTechnicalAccidentTempUnemploymentPeriod
used by	elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation	documentation 90273
source	<xs:element name="TempUnempTechnicalAccident">   <xs:annotation>     <xs:documentation>90273</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TempUnempTechnicalAccidentType">         <xs:sequence>           <xs:element ref="TempUnemploymentPeriod"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element Trusteeship

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  EmployerDeclarationLinkTypeHandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00012
source	<xs:element name="Trusteeship">   <xs:annotation>     <xs:documentation>00012</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipCity

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  40
annotation	documentation 00173
source	<xs:element name="TrusteeshipCity">   <xs:annotation>     <xs:documentation>00173</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipCountry

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00211
source	<xs:element name="TrusteeshipCountry">   <xs:annotation>     <xs:documentation>00211</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipHouseNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  10
annotation	documentation 00170
source	<xs:element name="TrusteeshipHouseNbr">   <xs:annotation>     <xs:documentation>00170</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipPostBox

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  4
annotation	documentation 00171
source	<xs:element name="TrusteeshipPostBox">   <xs:annotation>     <xs:documentation>00171</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipRegistrationNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation minInclusive  5010000 maxInclusive  5029999 totalDigits  7
annotation	documentation 00165
source	<xs:element name="TrusteeshipRegistrationNbr">   <xs:annotation>     <xs:documentation>00165</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="5010000"/>       <xs:maxInclusive value="5029999"/>       <xs:totalDigits value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipStreet

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  35
annotation	documentation 00166
source	<xs:element name="TrusteeshipStreet">   <xs:annotation>     <xs:documentation>00166</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="35"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TrusteeshipZIPCode

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  HandledEmployerDeclarationLinkType
facets	Kind  Value  Annotation maxLength  9
annotation	documentation 00172
source	<xs:element name="TrusteeshipZIPCode">   <xs:annotation>     <xs:documentation>00172</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TWCT501

diagram
properties	content  complex
children	Form
annotation	documentation 90282
source	<xs:element name="TWCT501">   <xs:annotation>     <xs:documentation>90282</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Form"/>     </xs:sequence>   </xs:complexType> </xs:element>

element TypeForm

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation maxLength  2 enumeration  SU
annotation	documentation 00297
source	<xs:element name="TypeForm">   <xs:annotation>     <xs:documentation>00297</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="2"/>       <xs:enumeration value="SU"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element UnemploymentReason

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialActionUnemploymentType
facets	Kind  Value  Annotation maxLength  3
annotation	documentation 01183
source	<xs:element name="UnemploymentReason">   <xs:annotation>     <xs:documentation>01183</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkAndReason

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  TempUnempBadWeatherType
facets	Kind  Value  Annotation maxLength  80 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00765
source	<xs:element name="WorkAndReason">   <xs:annotation>     <xs:documentation>00765</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="80"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerBirthdate

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation length  10 pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00028 appinfo Date_conversion2
source	<xs:element name="WorkerBirthdate">   <xs:annotation>     <xs:documentation>00028</xs:documentation>     <xs:appinfo source="ConversionID">Date_conversion2</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:length value="10"/>       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerBirthplace

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  40 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00168
source	<xs:element name="WorkerBirthplace">   <xs:annotation>     <xs:documentation>00168</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerBirthplaceCountry

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00169
source	<xs:element name="WorkerBirthplaceCountry">   <xs:annotation>     <xs:documentation>00169</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerCity

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  40
annotation	documentation 00034
source	<xs:element name="WorkerCity">   <xs:annotation>     <xs:documentation>00034</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerCountry

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00035
source	<xs:element name="WorkerCountry">   <xs:annotation>     <xs:documentation>00035</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerFirstName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minLength  1 maxLength  24
annotation	documentation 00026
source	<xs:element name="WorkerFirstName">   <xs:annotation>     <xs:documentation>00026</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="24"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerHouseNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  10
annotation	documentation 00031
source	<xs:element name="WorkerHouseNbr">   <xs:annotation>     <xs:documentation>00031</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerInitial

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation length  1 pattern  \p{L}
annotation	documentation 00027
source	<xs:element name="WorkerInitial">   <xs:annotation>     <xs:documentation>00027</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:length value="1"/>       <xs:pattern value="\p{L}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minLength  1 maxLength  48
annotation	documentation 00025
source	<xs:element name="WorkerName">   <xs:annotation>     <xs:documentation>00025</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="48"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerPostBox

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  4
annotation	documentation 00032
source	<xs:element name="WorkerPostBox">   <xs:annotation>     <xs:documentation>00032</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerSex

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2 totalDigits  1
annotation	documentation 00029
source	<xs:element name="WorkerSex">   <xs:annotation>     <xs:documentation>00029</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerStreet

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  35
annotation	documentation 00030
source	<xs:element name="WorkerStreet">   <xs:annotation>     <xs:documentation>00030</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="35"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerZIPCode

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  HandledNaturalPersonTypeNaturalPersonType
facets	Kind  Value  Annotation maxLength  9
annotation	documentation 00033
source	<xs:element name="WorkerZIPCode">   <xs:annotation>     <xs:documentation>00033</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ZIPCode

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AddressTypeOperationalOfficeTypeSenderTypeSiteAddressType
facets	Kind  Value  Annotation maxLength  9 pattern  [\s\S]*\S[\s\S]*
annotation	documentation 00520
source	<xs:element name="ZIPCode">   <xs:annotation>     <xs:documentation>00520</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="9"/>       <xs:pattern value="[\s\S]*\S[\s\S]*"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType AddressType

diagram
children	StreetHouseNbrPostBoxZIPCodeCityCountry
used by	element  Address
source	<xs:complexType name="AddressType">   <xs:sequence>     <xs:element ref="Street"/>     <xs:element ref="HouseNbr"/>     <xs:element ref="PostBox" minOccurs="0"/>     <xs:element ref="ZIPCode"/>     <xs:element ref="City"/>     <xs:element ref="Country" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CommentDeclarationType

diagram
children	CommentOfDeclaration
used by	element  CommentDeclaration
source	<xs:complexType name="CommentDeclarationType">   <xs:sequence>     <xs:element ref="CommentOfDeclaration" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CommunicationType

diagram
children	PhoneNbrGSMNbrFaxNbrEmailAddress
used by	element  Communication
source	<xs:complexType name="CommunicationType">   <xs:sequence>     <xs:element ref="PhoneNbr"/>     <xs:element ref="GSMNbr" minOccurs="0"/>     <xs:element ref="FaxNbr" minOccurs="0"/>     <xs:element ref="EmailAddress" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CoordinatesContactPersonType

diagram
children	NameFirstName
used by	element  CoordinatesContactPerson
source	<xs:complexType name="CoordinatesContactPersonType">   <xs:sequence>     <xs:element ref="Name" minOccurs="0"/>     <xs:element ref="FirstName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType DclInformationType

diagram
children	LanguageCodePdf
used by	element  DclInformation
source	<xs:complexType name="DclInformationType">   <xs:sequence>     <xs:element ref="LanguageCodePdf"/>   </xs:sequence> </xs:complexType>

complexType DepartmentIdentificationType

diagram
children	DepartmentName
used by	element  DepartmentIdentification
source	<xs:complexType name="DepartmentIdentificationType">   <xs:sequence>     <xs:element ref="DepartmentName"/>   </xs:sequence> </xs:complexType>

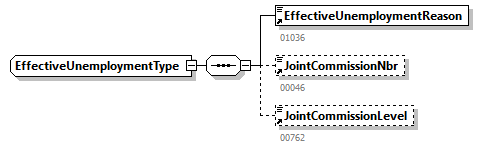

complexType EffectiveUnemploymentType

diagram
children	EffectiveUnemploymentReasonJointCommissionNbrJointCommissionLevel
used by	element  EffectiveUnemployment
source	<xs:complexType name="EffectiveUnemploymentType">   <xs:sequence>     <xs:element ref="EffectiveUnemploymentReason"/>     <xs:element ref="JointCommissionNbr" minOccurs="0"/>     <xs:element ref="JointCommissionLevel" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType EmployerDeclarationLinkType

diagram
children	NOSSRegistrationNbrTrusteeshipCompanyID
used by	element  EmployerDeclarationLink
source	<xs:complexType name="EmployerDeclarationLinkType">   <xs:sequence>     <xs:element ref="NOSSRegistrationNbr"/>     <xs:element ref="Trusteeship"/>     <xs:element ref="CompanyID"/>   </xs:sequence> </xs:complexType>

complexType FormType

diagram
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by	element  Form
source	<xs:complexType name="FormType">   <xs:sequence>     <xs:element ref="Identification"/>     <xs:element ref="FormCreationDate"/>     <xs:element ref="FormCreationHour"/>     <xs:element ref="AttestationStatus"/>     <xs:element ref="TypeForm"/>   </xs:sequence> </xs:complexType>

complexType HandledEmployerDeclarationLinkType

diagram
children	NOSSRegistrationNbrTrusteeshipCompanyIDEmployerDenominationEmployerStreetEmployerHouseNbrEmployerPostBoxEmployerZIPCodeEmployerCityEmployerCountryLegalFormImportanceCodeTrusteeshipRegistrationNbrTrusteeshipStreetTrusteeshipHouseNbrTrusteeshipPostBoxTrusteeshipZIPCodeTrusteeshipCityTrusteeshipCountry
used by	element  HandledEmployerDeclarationLink
source	<xs:complexType name="HandledEmployerDeclarationLinkType">   <xs:sequence>     <xs:element ref="NOSSRegistrationNbr" minOccurs="1" maxOccurs="1"/>     <xs:element ref="Trusteeship" minOccurs="1" maxOccurs="1"/>     <xs:element ref="CompanyID" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerDenomination" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerStreet" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerHouseNbr" minOccurs="0" maxOccurs="1"/>     <xs:element ref="EmployerPostBox" minOccurs="0" maxOccurs="1"/>     <xs:element ref="EmployerZIPCode" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerCity" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerCountry" minOccurs="0" maxOccurs="1"/>     <xs:element ref="LegalForm" minOccurs="0" maxOccurs="1"/>     <xs:element ref="ImportanceCode" minOccurs="1" maxOccurs="1"/>     <xs:element ref="TrusteeshipRegistrationNbr" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipStreet" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipHouseNbr" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipPostBox" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipZIPCode" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipCity" minOccurs="0" maxOccurs="1"/>     <xs:element ref="TrusteeshipCountry" minOccurs="0" maxOccurs="1"/>   </xs:sequence> </xs:complexType>

complexType HandledNaturalPersonType

diagram
children	NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityOriolusSuccessCodeOriolusSubStatusRipBisFlagIndicationNaturalPersonUserReferencePreviousINSS
used by	element  HandledNaturalPerson
source	<xs:complexType name="HandledNaturalPersonType">   <xs:sequence>     <xs:element ref="NaturalPersonSequenceNbr" minOccurs="1" maxOccurs="1"/>     <xs:element ref="INSS" minOccurs="1" maxOccurs="1"/>     <xs:element ref="SIS" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerName" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerFirstName" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerInitial" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerBirthdate" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerBirthplace" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerBirthplaceCountry" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerSex" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerStreet" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerHouseNbr" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerPostBox" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerZIPCode" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerCity" minOccurs="0" maxOccurs="1"/>     <xs:element ref="WorkerCountry" minOccurs="0" maxOccurs="1"/>     <xs:element ref="Nationality" minOccurs="0" maxOccurs="1"/>     <xs:element ref="OriolusSuccessCode" minOccurs="0" maxOccurs="1"/>     <xs:element ref="OriolusSubStatusRip" minOccurs="0" maxOccurs="1"/>     <xs:element ref="BisFlagIndication" minOccurs="1" maxOccurs="1"/>     <xs:element ref="NaturalPersonUserReference" minOccurs="0" maxOccurs="1"/>     <xs:element ref="PreviousINSS" minOccurs="0" maxOccurs="1"/>   </xs:sequence> </xs:complexType>

complexType HandledNOSSLPAEmployerDclLinkType

diagram
children	NOSSLPARegistrationNbrCompanyIDEmployerDenominationEmployerStreetEmployerHouseNbrEmployerPostBoxEmployerZIPCodeEmployerCityEmployerCountryImportanceCode
used by	element  HandledNOSSLPAEmployerDclLink
source	<xs:complexType name="HandledNOSSLPAEmployerDclLinkType">   <xs:sequence>     <xs:element ref="NOSSLPARegistrationNbr" minOccurs="1" maxOccurs="1"/>     <xs:element ref="CompanyID" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerDenomination" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerStreet" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerHouseNbr" minOccurs="0" maxOccurs="1"/>     <xs:element ref="EmployerPostBox" minOccurs="0" maxOccurs="1"/>     <xs:element ref="EmployerZIPCode" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerCity" minOccurs="1" maxOccurs="1"/>     <xs:element ref="EmployerCountry" minOccurs="0" maxOccurs="1"/>     <xs:element ref="ImportanceCode" minOccurs="1" maxOccurs="1"/>   </xs:sequence> </xs:complexType>

complexType HandledOriginalFormType

diagram
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by	element  HandledOriginalForm
source	<xs:complexType name="HandledOriginalFormType">   <xs:sequence>     <xs:element ref="Identification" minOccurs="1" maxOccurs="1"/>     <xs:element ref="FormCreationDate" minOccurs="1" maxOccurs="1"/>     <xs:element ref="FormCreationHour" minOccurs="1" maxOccurs="1"/>     <xs:element ref="AttestationStatus" minOccurs="1" maxOccurs="1"/>     <xs:element ref="TypeForm" minOccurs="1" maxOccurs="1"/>   </xs:sequence> </xs:complexType>

complexType HandledReferenceType

diagram
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  HandledReference
source	<xs:complexType name="HandledReferenceType">   <xs:sequence>     <xs:element ref="ReferenceType" minOccurs="1" maxOccurs="1"/>     <xs:element ref="ReferenceOrigin" minOccurs="1" maxOccurs="1"/>     <xs:element ref="ReferenceNbr" minOccurs="1" maxOccurs="1"/>   </xs:sequence> </xs:complexType>

complexType IndividualUnempPeriodType

diagram
children	IndividualUnempEndingDate
used by	element  IndividualUnempPeriod
source	<xs:complexType name="IndividualUnempPeriodType">   <xs:sequence>     <xs:element ref="IndividualUnempEndingDate"/>   </xs:sequence> </xs:complexType>

complexType NaturalPersonType

diagram
children	NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityNaturalPersonUserReference
used by	element  NaturalPerson
source	<xs:complexType name="NaturalPersonType">   <xs:sequence>     <xs:element ref="NaturalPersonSequenceNbr"/>     <xs:element ref="INSS"/>     <xs:element ref="SIS" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerName" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerFirstName" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerInitial" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerBirthdate" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerBirthplace" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerBirthplaceCountry" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerSex" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerStreet" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerHouseNbr" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerPostBox" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerZIPCode" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerCity" minOccurs="0" maxOccurs="0"/>     <xs:element ref="WorkerCountry" minOccurs="0" maxOccurs="0"/>     <xs:element ref="Nationality" minOccurs="0" maxOccurs="0"/>     <xs:element ref="NaturalPersonUserReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType NOSSLPAEmployerDeclarationLinkType

diagram
children	NOSSLPARegistrationNbrCompanyID
used by	element  NOSSLPAEmployerDeclarationLink
source	<xs:complexType name="NOSSLPAEmployerDeclarationLinkType">   <xs:sequence>     <xs:element ref="NOSSLPARegistrationNbr"/>     <xs:element ref="CompanyID"/>   </xs:sequence> </xs:complexType>

complexType OperationalOfficeType

diagram
children	StreetHouseNbrPostBoxZIPCodeCity
used by	element  OperationalOffice
source	<xs:complexType name="OperationalOfficeType">   <xs:sequence>     <xs:element ref="Street"/>     <xs:element ref="HouseNbr"/>     <xs:element ref="PostBox" minOccurs="0"/>     <xs:element ref="ZIPCode"/>     <xs:element ref="City"/>   </xs:sequence> </xs:complexType>

complexType ReferenceType

diagram
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  Reference
source	<xs:complexType name="ReferenceType">   <xs:sequence>     <xs:element ref="ReferenceType"/>     <xs:element ref="ReferenceOrigin"/>     <xs:element ref="ReferenceNbr"/>   </xs:sequence> </xs:complexType>

complexType RiskIdentificationType

diagram
children	IdentificationOfRisk
used by	element  RiskIdentification
source	<xs:complexType name="RiskIdentificationType">   <xs:sequence>     <xs:element ref="IdentificationOfRisk"/>   </xs:sequence> </xs:complexType>

complexType SenderType

diagram
children	DenominationStreetHouseNbrPostBoxZIPCodeCityCountryLanguage
used by	element  Sender
source	<xs:complexType name="SenderType">   <xs:sequence>     <xs:element ref="Denomination"/>     <xs:element ref="Street"/>     <xs:element ref="HouseNbr"/>     <xs:element ref="PostBox" minOccurs="0"/>     <xs:element ref="ZIPCode"/>     <xs:element ref="City"/>     <xs:element ref="Country" minOccurs="0" maxOccurs="0"/>     <xs:element ref="Language" minOccurs="0" maxOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType SiteAddressType

diagram
children	StreetHouseNbrPostBoxZIPCodeCityCountry
used by	element  SiteAddress
source	<xs:complexType name="SiteAddressType">   <xs:sequence>     <xs:element ref="Street"/>     <xs:element ref="HouseNbr" minOccurs="0"/>     <xs:element ref="PostBox" minOccurs="0"/>     <xs:element ref="ZIPCode"/>     <xs:element ref="City"/>     <xs:element ref="Country" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType SocialActionUnemploymentType

diagram
children	UnemploymentReasonCommentOfDeclarationSocialActionDetails
used by	element  SocialActionUnemployment
source	<xs:complexType name="SocialActionUnemploymentType">   <xs:sequence>     <xs:element ref="UnemploymentReason" minOccurs="0"/>     <xs:element ref="CommentOfDeclaration" minOccurs="0"/>     <xs:element ref="SocialActionDetails" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType TemporaryEmploymentAgencyType

diagram
children	CommunicationSourceIndicatorDenominationNOSSRegistrationNbrCompanyID
used by	element  TemporaryEmploymentAgency
source	<xs:complexType name="TemporaryEmploymentAgencyType">   <xs:sequence>     <xs:element ref="CommunicationSourceIndicator"/>     <xs:element ref="Denomination" minOccurs="0"/>     <xs:element ref="NOSSRegistrationNbr" minOccurs="0"/>     <xs:element ref="CompanyID" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType TempUnempBadWeatherType

diagram
children	BadWeatherWorkAndReason
used by	element  TempUnempBadWeather
source	<xs:complexType name="TempUnempBadWeatherType">   <xs:sequence>     <xs:element ref="BadWeather"/>     <xs:element ref="WorkAndReason"/>   </xs:sequence> </xs:complexType>

complexType TempUnempEconomicalType

diagram
children	RegimeTempUnempJointCommissionNbrJointCommissionLevelReasonTempUnempDeclarationOnHonour
used by	element  TempUnempEconomical
source	<xs:complexType name="TempUnempEconomicalType">   <xs:sequence>     <xs:element ref="RegimeTempUnemp"/>     <xs:element ref="JointCommissionNbr"/>     <xs:element ref="JointCommissionLevel" minOccurs="0"/>     <xs:element ref="ReasonTempUnemp"/>     <xs:element ref="DeclarationOnHonour"/>   </xs:sequence> </xs:complexType>

complexType TempUnemploymentPeriodType

diagram
children	TempUnemploymentStartingDateTempUnemploymentEndingDate
used by	element  TempUnemploymentPeriod
source	<xs:complexType name="TempUnemploymentPeriodType">   <xs:sequence>     <xs:element ref="TempUnemploymentStartingDate"/>     <xs:element ref="TempUnemploymentEndingDate" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType TempUnempMajorForceType

diagram
children	MajorForceReason
used by	element  TempUnempMajorForce
source	<xs:complexType name="TempUnempMajorForceType">   <xs:sequence>     <xs:element ref="MajorForceReason"/>   </xs:sequence> </xs:complexType>

complexType TempUnempSocialActionType

diagram
children	JointCommissionNbrJointCommissionLevel
used by	element  TempUnempSocialAction
source	<xs:complexType name="TempUnempSocialActionType">   <xs:sequence>     <xs:element ref="JointCommissionNbr"/>     <xs:element ref="JointCommissionLevel" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType TempUnempTechnicalAccidentType

diagram
children	DateTechnicalAccidentTechnicalAccident
used by	element  TempUnempTechnicalAccident
source	<xs:complexType name="TempUnempTechnicalAccidentType">   <xs:sequence>     <xs:element ref="DateTechnicalAccident"/>     <xs:element ref="TechnicalAccident"/>   </xs:sequence> </xs:complexType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
