Schema RTWRT_20253.xsd


ROOT ELEMENT:  RTWRT
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  http://socialsecurity.be/xml/ns/RTWRT

Elements  Complex types
AccountingQuarter  RTWRTCalculationDetailsType
ActivityCode  RTWRTCalculationResultsType
Art147Indicator  RTWRTDataType
EndingQuarter
FullTimeEquivalent
JointCommissionNbr
ProactiveInformationReason
ProportionPrivate
ProportionSector
Quarter
QuarterSequenceNbr
RatioEmployer
RatioPrivate
RatioSector
RTWRT
RTWRTCalculationDetails
RTWRTCalculationResults
RTWRTData
StartingQuarter
TotalNbrInvalidityWorkers


element AccountingQuarter
diagram RTWRT_20253_p1.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTDataType
facets
Kind  Value  Annotation
totalDigits  5
pattern  \d{4}(1|2|3|4)
annotation
documentation
00866
source <xs:element name="AccountingQuarter">
  <xs:annotation>
    <xs:documentation>00866</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="5"/>
      <xs:pattern value="\d{4}(1|2|3|4)"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ActivityCode
diagram RTWRT_20253_p2.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexTypes  RTWRTCalculationResultsTypeRTWRTDataType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  4
annotation
documentation
00228
source <xs:element name="ActivityCode">
  <xs:annotation>
    <xs:documentation>00228</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Art147Indicator
diagram RTWRT_20253_p3.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTDataType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
01262
source <xs:element name="Art147Indicator">
  <xs:annotation>
    <xs:documentation>01262</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EndingQuarter
diagram RTWRT_20253_p4.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  5
pattern  \d{4}(1|2|3|4)
annotation
documentation
01110
source <xs:element name="EndingQuarter">
  <xs:annotation>
    <xs:documentation>01110</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="5"/>
      <xs:pattern value="\d{4}(1|2|3|4)"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FullTimeEquivalent
diagram RTWRT_20253_p5.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexType  RTWRTCalculationDetailsType
facets
Kind  Value  Annotation
totalDigits  10
fractionDigits  9
annotation
documentation
01305
source <xs:element name="FullTimeEquivalent">
  <xs:annotation>
    <xs:documentation>01305</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element JointCommissionNbr
diagram RTWRT_20253_p6.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:string
properties
content  simple
used by
complexType  RTWRTCalculationDetailsType
facets
Kind  Value  Annotation
minLength  1
maxLength  9
pattern  \d{3}|\d{3}\.\d{2}|\d{3}\.\d{2}\.\d{2}
annotation
documentation
00046
source <xs:element name="JointCommissionNbr">
  <xs:annotation>
    <xs:documentation>00046</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="9"/>
      <xs:pattern value="\d{3}|\d{3}\.\d{2}|\d{3}\.\d{2}\.\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProactiveInformationReason
diagram RTWRT_20253_p7.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTDataType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  2
totalDigits  1
annotation
documentation
01261
source <xs:element name="ProactiveInformationReason">
  <xs:annotation>
    <xs:documentation>01261</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="2"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProportionPrivate
diagram RTWRT_20253_p8.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  4
fractionDigits  2
annotation
documentation
01268
source <xs:element name="ProportionPrivate">
  <xs:annotation>
    <xs:documentation>01268</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="4"/>
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProportionSector
diagram RTWRT_20253_p9.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  4
fractionDigits  2
annotation
documentation
01267
source <xs:element name="ProportionSector">
  <xs:annotation>
    <xs:documentation>01267</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="4"/>
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Quarter
diagram RTWRT_20253_p10.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTCalculationDetailsType
facets
Kind  Value  Annotation
totalDigits  5
pattern  \d{4}(1|2|3|4)
annotation
documentation
00013
appinfo
xs:yearQuarter
source <xs:element name="Quarter">
  <xs:annotation>
    <xs:documentation>00013</xs:documentation>
    <xs:appinfo source="TDOType">xs:yearQuarter</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="5"/>
      <xs:pattern value="\d{4}(1|2|3|4)"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element QuarterSequenceNbr
diagram RTWRT_20253_p11.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  6
totalDigits  1
annotation
documentation
01263
source <xs:element name="QuarterSequenceNbr">
  <xs:annotation>
    <xs:documentation>01263</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="6"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RatioEmployer
diagram RTWRT_20253_p12.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexTypes  RTWRTCalculationDetailsTypeRTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  10
fractionDigits  9
annotation
documentation
01264
source <xs:element name="RatioEmployer">
  <xs:annotation>
    <xs:documentation>01264</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RatioPrivate
diagram RTWRT_20253_p13.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  10
fractionDigits  9
annotation
documentation
01265
source <xs:element name="RatioPrivate">
  <xs:annotation>
    <xs:documentation>01265</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RatioSector
diagram RTWRT_20253_p14.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:decimal
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  10
fractionDigits  9
annotation
documentation
01266
source <xs:element name="RatioSector">
  <xs:annotation>
    <xs:documentation>01266</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

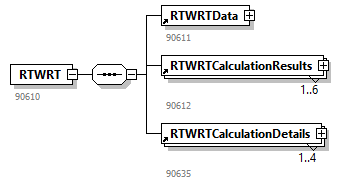

element RTWRT
diagram RTWRT_20253_p15.png
namespace http://socialsecurity.be/xml/ns/RTWRT
properties
content  complex
children RTWRTDataRTWRTCalculationResultsRTWRTCalculationDetails
annotation
documentation
90610
source <xs:element name="RTWRT">
  <xs:annotation>
    <xs:documentation>90610</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="RTWRTData"/>
      <xs:element ref="RTWRTCalculationResults" maxOccurs="6"/>
      <xs:element ref="RTWRTCalculationDetails" maxOccurs="4"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

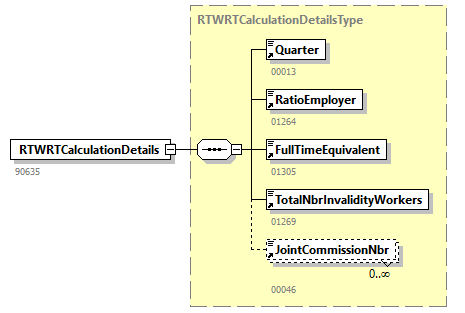

element RTWRTCalculationDetails
diagram RTWRT_20253_p16.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type RTWRTCalculationDetailsType
properties
content  complex
children QuarterRatioEmployerFullTimeEquivalentTotalNbrInvalidityWorkersJointCommissionNbr
used by
element  RTWRT
annotation
documentation
90635
source <xs:element name="RTWRTCalculationDetails" type="RTWRTCalculationDetailsType">
  <xs:annotation>
    <xs:documentation>90635</xs:documentation>
  </xs:annotation>
</xs:element>

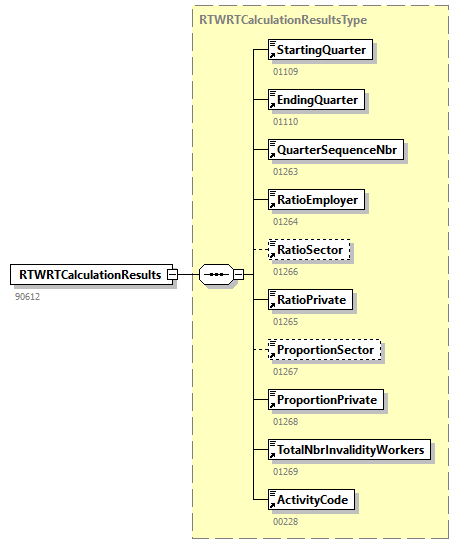

element RTWRTCalculationResults
diagram RTWRT_20253_p17.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type RTWRTCalculationResultsType
properties
content  complex
children StartingQuarterEndingQuarterQuarterSequenceNbrRatioEmployerRatioSectorRatioPrivateProportionSectorProportionPrivateTotalNbrInvalidityWorkersActivityCode
used by
element  RTWRT
annotation
documentation
90612
source <xs:element name="RTWRTCalculationResults" type="RTWRTCalculationResultsType">
  <xs:annotation>
    <xs:documentation>90612</xs:documentation>
  </xs:annotation>
</xs:element>

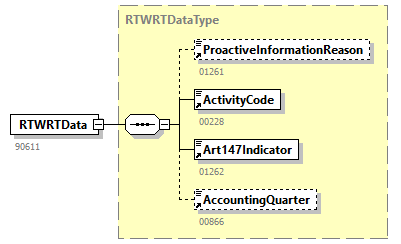

element RTWRTData
diagram RTWRT_20253_p18.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type RTWRTDataType
properties
content  complex
children ProactiveInformationReasonActivityCodeArt147IndicatorAccountingQuarter
used by
element  RTWRT
annotation
documentation
90611
source <xs:element name="RTWRTData" type="RTWRTDataType">
  <xs:annotation>
    <xs:documentation>90611</xs:documentation>
  </xs:annotation>
</xs:element>

element StartingQuarter
diagram RTWRT_20253_p19.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexType  RTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  5
pattern  \d{4}(1|2|3|4)
annotation
documentation
01109
source <xs:element name="StartingQuarter">
  <xs:annotation>
    <xs:documentation>01109</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="5"/>
      <xs:pattern value="\d{4}(1|2|3|4)"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element TotalNbrInvalidityWorkers
diagram RTWRT_20253_p20.png
namespace http://socialsecurity.be/xml/ns/RTWRT
type restriction of xs:integer
properties
content  simple
used by
complexTypes  RTWRTCalculationDetailsTypeRTWRTCalculationResultsType
facets
Kind  Value  Annotation
totalDigits  4
annotation
documentation
01269
source <xs:element name="TotalNbrInvalidityWorkers">
  <xs:annotation>
    <xs:documentation>01269</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

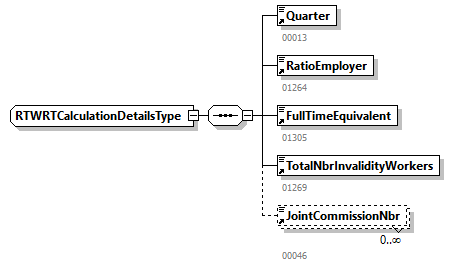

complexType RTWRTCalculationDetailsType
diagram RTWRT_20253_p21.png
namespace http://socialsecurity.be/xml/ns/RTWRT
children QuarterRatioEmployerFullTimeEquivalentTotalNbrInvalidityWorkersJointCommissionNbr
used by
element  RTWRTCalculationDetails
source <xs:complexType name="RTWRTCalculationDetailsType">
  <xs:sequence>
    <xs:element ref="Quarter"/>
    <xs:element ref="RatioEmployer"/>
    <xs:element ref="FullTimeEquivalent"/>
    <xs:element ref="TotalNbrInvalidityWorkers"/>
    <xs:element ref="JointCommissionNbr" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

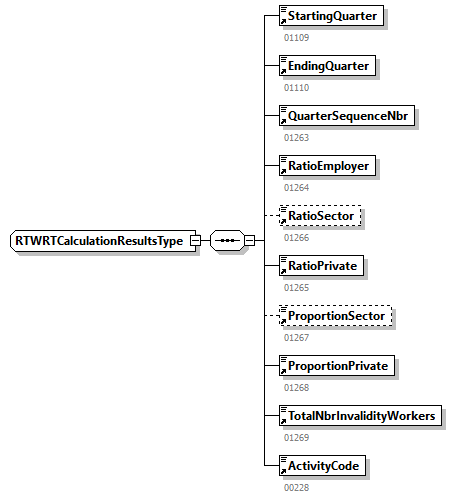

complexType RTWRTCalculationResultsType
diagram RTWRT_20253_p22.png
namespace http://socialsecurity.be/xml/ns/RTWRT
children StartingQuarterEndingQuarterQuarterSequenceNbrRatioEmployerRatioSectorRatioPrivateProportionSectorProportionPrivateTotalNbrInvalidityWorkersActivityCode
used by
element  RTWRTCalculationResults
source <xs:complexType name="RTWRTCalculationResultsType">
  <xs:sequence>
    <xs:element ref="StartingQuarter"/>
    <xs:element ref="EndingQuarter"/>
    <xs:element ref="QuarterSequenceNbr"/>
    <xs:element ref="RatioEmployer"/>
    <xs:element ref="RatioSector" minOccurs="0"/>
    <xs:element ref="RatioPrivate"/>
    <xs:element ref="ProportionSector" minOccurs="0"/>
    <xs:element ref="ProportionPrivate"/>
    <xs:element ref="TotalNbrInvalidityWorkers"/>
    <xs:element ref="ActivityCode"/>
  </xs:sequence>
</xs:complexType>

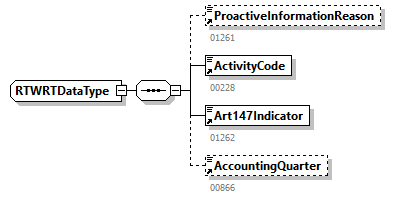

complexType RTWRTDataType
diagram RTWRT_20253_p23.png
namespace http://socialsecurity.be/xml/ns/RTWRT
children ProactiveInformationReasonActivityCodeArt147IndicatorAccountingQuarter
used by
element  RTWRTData
source <xs:complexType name="RTWRTDataType">
  <xs:sequence>
    <xs:element ref="ProactiveInformationReason" minOccurs="0"/>
    <xs:element ref="ActivityCode"/>
    <xs:element ref="Art147Indicator"/>
    <xs:element ref="AccountingQuarter" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
