Schema AVWDDT_20253.xsd


ROOT ELEMENT:  AVWDDT
attributeFormDefault:  unqualified
elementFormDefault:  qualified

Elements  Complex types
Address  AddressType
AddressDetails  CommunicationType
AttestationStatus  CoordinatesContactPersonType
AVWDDT  FormType
BuildingUsage  OtherParticipantType
City  ReferenceType
Comment  SiteAddressType
Communication  SubcontractorActivityInfoType
CompanyID  SubcontractorEmployerIdType
ContractSignatureDate  SubcontractorIdType
CoordinatesContactPerson  TempComCompanyIDType
CostPlusContractNotion  WorksContractDeclarantIdType
Country  WorksContractType
DangerousConstrWorkNature  WorksGlobalProjectOwnerIdType
Denomination  WorksGlobalProjectType
EmailAddress
FaxNbr
FirstName
ForeignCompanyID
Form
FormCreationDate
FormCreationHour
GSMNbr
HouseNbr
Identification
InterventionEndDate
InterventionStartDate
IsNaturalPerson
IsObligedToRegister
Justification
LanguagePreference
LateWorksContractDeclReason
Name
OtherParticipant
ParticipantQuality
PhoneNbr
PostBox
Reference
ReferenceNbr
ReferenceOrigin
ReferenceType
SiteAddress
Street
SubcontractorActivity
SubcontractorActivityInfo
SubcontractorEmployerId
SubcontractorId
TempComCompanyID
TypeForm
VATNbr
WorksContract
WorksContractDeclarantId
WorksContractEndDate
WorksContractStartDate
WorksContractTotalCost
WorksGlobalProject
WorksGlobalProjectMobilityNotion
WorksGlobalProjectOwnerId
WorksGlobalProjectPurpose
WorksGlobalProjectSector
WorksGlobalProjectType
ZIPCode

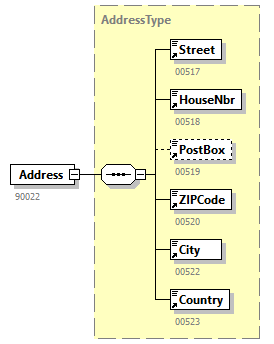

element Address
diagram AVWDDT_20253_p1.png
type AddressType
properties
content  complex
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
elements  SubcontractorEmployerIdSubcontractorIdTempComCompanyIDWorksGlobalProjectOwnerId
annotation
documentation
90022
source <xs:element name="Address" type="AddressType">
  <xs:annotation>
    <xs:documentation>90022</xs:documentation>
  </xs:annotation>
</xs:element>

element AddressDetails
diagram AVWDDT_20253_p2.png
type restriction of xs:string
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
maxLength  1000
annotation
documentation
00925
source <xs:element name="AddressDetails">
  <xs:annotation>
    <xs:documentation>00925</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="1000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AttestationStatus
diagram AVWDDT_20253_p3.png
type restriction of xs:integer
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  0
annotation
documentation
00110
source <xs:element name="AttestationStatus">
  <xs:annotation>
    <xs:documentation>00110</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AVWDDT
diagram AVWDDT_20253_p4.png
properties
content  complex
children Form
annotation
documentation
90489
source <xs:element name="AVWDDT">
  <xs:annotation>
    <xs:documentation>90489</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Form" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BuildingUsage
diagram AVWDDT_20253_p5.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  01
enumeration  02
enumeration  03
enumeration  04
enumeration  05
enumeration  06
enumeration  07
enumeration  08
enumeration  09
enumeration  10
enumeration  11
enumeration  12
enumeration  13
enumeration  14
enumeration  15
enumeration  16
enumeration  17
enumeration  18
enumeration  19
enumeration  20
enumeration  21
enumeration  22
enumeration  23
enumeration  24
enumeration  25
enumeration  99
annotation
documentation
01016
source <xs:element name="BuildingUsage">
  <xs:annotation>
    <xs:documentation>01016</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="01"/>
      <xs:enumeration value="02"/>
      <xs:enumeration value="03"/>
      <xs:enumeration value="04"/>
      <xs:enumeration value="05"/>
      <xs:enumeration value="06"/>
      <xs:enumeration value="07"/>
      <xs:enumeration value="08"/>
      <xs:enumeration value="09"/>
      <xs:enumeration value="10"/>
      <xs:enumeration value="11"/>
      <xs:enumeration value="12"/>
      <xs:enumeration value="13"/>
      <xs:enumeration value="14"/>
      <xs:enumeration value="15"/>
      <xs:enumeration value="16"/>
      <xs:enumeration value="17"/>
      <xs:enumeration value="18"/>
      <xs:enumeration value="19"/>
      <xs:enumeration value="20"/>
      <xs:enumeration value="21"/>
      <xs:enumeration value="22"/>
      <xs:enumeration value="23"/>
      <xs:enumeration value="24"/>
      <xs:enumeration value="25"/>
      <xs:enumeration value="99"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element City
diagram AVWDDT_20253_p6.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
maxLength  30
annotation
documentation
00522
source <xs:element name="City">
  <xs:annotation>
    <xs:documentation>00522</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="30"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Comment
diagram AVWDDT_20253_p7.png
type restriction of xs:string
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
maxLength  200
annotation
documentation
00887
source <xs:element name="Comment">
  <xs:annotation>
    <xs:documentation>00887</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="200"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

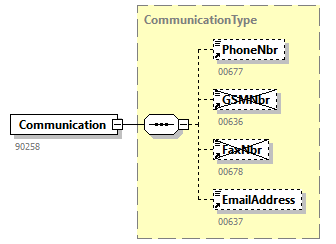

element Communication
diagram AVWDDT_20253_p8.png
type CommunicationType
properties
content  complex
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
elements  CoordinatesContactPersonWorksContractDeclarantId
annotation
documentation
90258
source <xs:element name="Communication" type="CommunicationType">
  <xs:annotation>
    <xs:documentation>90258</xs:documentation>
  </xs:annotation>
</xs:element>

element CompanyID
diagram AVWDDT_20253_p9.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  OtherParticipantTypeSubcontractorEmployerIdTypeSubcontractorIdTypeTempComCompanyIDTypeWorksContractDeclarantIdTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1999999943
totalDigits  10
pattern  \d{9}|\d{10}
annotation
documentation
00014
appinfo
CompanyID_conversion1
appinfo
xs:companyId
source <xs:element name="CompanyID">
  <xs:annotation>
    <xs:documentation>00014</xs:documentation>
    <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1999999943"/>
      <xs:totalDigits value="10"/>
      <xs:pattern value="\d{9}|\d{10}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ContractSignatureDate
diagram AVWDDT_20253_p10.png
type restriction of xs:date
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00926
source <xs:element name="ContractSignatureDate">
  <xs:annotation>
    <xs:documentation>00926</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

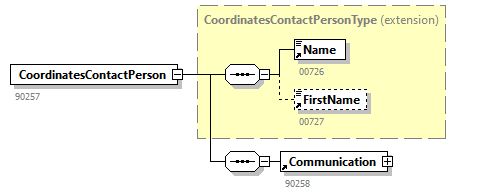

element CoordinatesContactPerson
diagram AVWDDT_20253_p11.png
type extension of CoordinatesContactPersonType
properties
content  complex
children NameFirstNameCommunication
used by
element  WorksContract
annotation
documentation
90257
source <xs:element name="CoordinatesContactPerson">
  <xs:annotation>
    <xs:documentation>90257</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CoordinatesContactPersonType">
        <xs:sequence>
          <xs:element ref="Communication"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element CostPlusContractNotion
diagram AVWDDT_20253_p12.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
00929
source <xs:element name="CostPlusContractNotion">
  <xs:annotation>
    <xs:documentation>00929</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Country
diagram AVWDDT_20253_p13.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00523
source <xs:element name="Country">
  <xs:annotation>
    <xs:documentation>00523</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DangerousConstrWorkNature
diagram AVWDDT_20253_p14.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  SubcontractorActivityInfoTypeWorksContractType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  0
enumeration  1
enumeration  9
annotation
documentation
01083
source <xs:element name="DangerousConstrWorkNature">
  <xs:annotation>
    <xs:documentation>01083</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="0"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Denomination
diagram AVWDDT_20253_p15.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  SubcontractorEmployerIdTypeSubcontractorIdTypeTempComCompanyIDTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00776
source <xs:element name="Denomination">
  <xs:annotation>
    <xs:documentation>00776</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmailAddress
diagram AVWDDT_20253_p16.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  60
annotation
documentation
00637
source <xs:element name="EmailAddress">
  <xs:annotation>
    <xs:documentation>00637</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="60"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FaxNbr
diagram AVWDDT_20253_p17.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00678
source <xs:element name="FaxNbr">
  <xs:annotation>
    <xs:documentation>00678</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FirstName
diagram AVWDDT_20253_p18.png
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesContactPersonType
facets
Kind  Value  Annotation
maxLength  24
annotation
documentation
00727
source <xs:element name="FirstName">
  <xs:annotation>
    <xs:documentation>00727</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="24"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ForeignCompanyID
diagram AVWDDT_20253_p19.png
type restriction of xs:string
properties
content  simple
used by

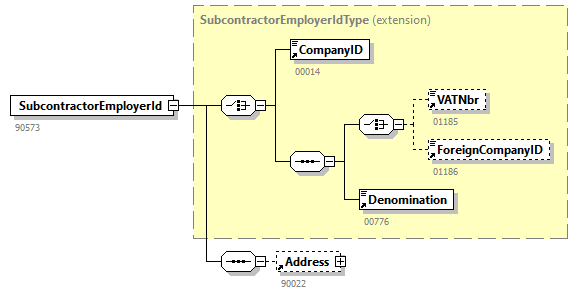

complexTypes  SubcontractorEmployerIdTypeSubcontractorIdTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
maxLength  256
annotation
documentation
01186
source <xs:element name="ForeignCompanyID">
  <xs:annotation>
    <xs:documentation>01186</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="256"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

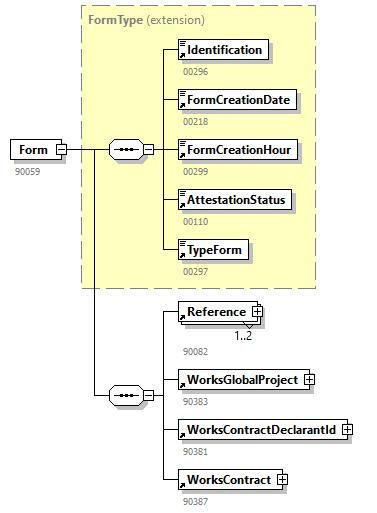

element Form
diagram AVWDDT_20253_p20.png
type extension of FormType
properties
content  complex
children IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormReferenceWorksGlobalProjectWorksContractDeclarantIdWorksContract
used by
element  AVWDDT
annotation
documentation
90059
source <xs:element name="Form">
  <xs:annotation>
    <xs:documentation>90059</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FormType">
        <xs:sequence>

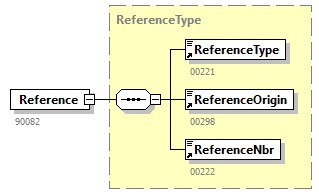

          <xs:element ref="Reference" maxOccurs="2"/>
          <xs:element ref="WorksGlobalProject"/>

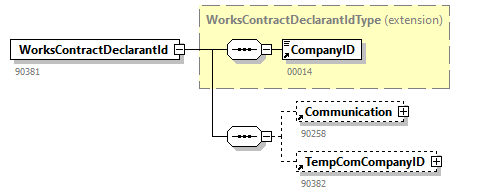

          <xs:element ref="WorksContractDeclarantId"/>

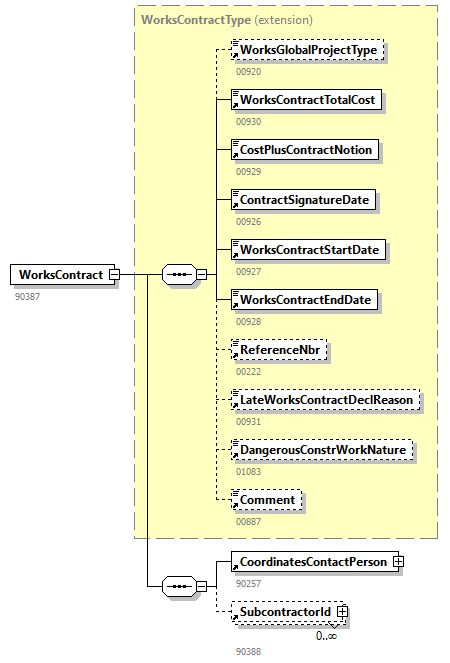

          <xs:element ref="WorksContract"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FormCreationDate
diagram AVWDDT_20253_p21.png
type restriction of xs:date
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00218
appinfo
Date_conversion1
source <xs:element name="FormCreationDate">
  <xs:annotation>
    <xs:documentation>00218</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FormCreationHour
diagram AVWDDT_20253_p22.png
type restriction of xs:time
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation
documentation
00299
appinfo
Time_conversion1
source <xs:element name="FormCreationHour">
  <xs:annotation>
    <xs:documentation>00299</xs:documentation>
    <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:time">
      <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element GSMNbr
diagram AVWDDT_20253_p23.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00636
source <xs:element name="GSMNbr">
  <xs:annotation>
    <xs:documentation>00636</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element HouseNbr
diagram AVWDDT_20253_p24.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
maxLength  10
annotation
documentation
00518
source <xs:element name="HouseNbr">
  <xs:annotation>
    <xs:documentation>00518</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Identification
diagram AVWDDT_20253_p25.png
type restriction of xs:string
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
maxLength  7
enumeration  AVWDDT
annotation
documentation
00296
source <xs:element name="Identification">
  <xs:annotation>
    <xs:documentation>00296</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="7"/>
      <xs:enumeration value="AVWDDT"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element InterventionEndDate
diagram AVWDDT_20253_p26.png
type restriction of xs:date
properties
content  simple
used by

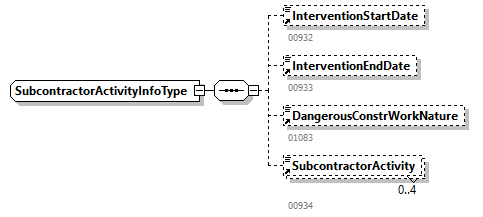

complexType  SubcontractorActivityInfoType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00933
source <xs:element name="InterventionEndDate">
  <xs:annotation>
    <xs:documentation>00933</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element InterventionStartDate
diagram AVWDDT_20253_p27.png
type restriction of xs:date
properties
content  simple
used by
complexType  SubcontractorActivityInfoType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00932
source <xs:element name="InterventionStartDate">
  <xs:annotation>
    <xs:documentation>00932</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IsNaturalPerson
diagram AVWDDT_20253_p28.png
type restriction of xs:integer
properties
content  simple
used by

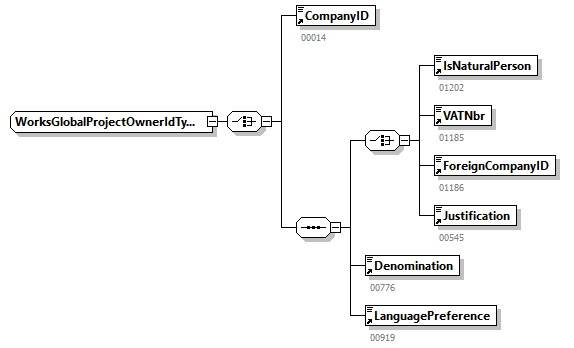

complexType  WorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
01202
source <xs:element name="IsNaturalPerson">
  <xs:annotation>
    <xs:documentation>01202</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IsObligedToRegister
diagram AVWDDT_20253_p29.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
01082
source <xs:element name="IsObligedToRegister">
  <xs:annotation>
    <xs:documentation>01082</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Justification
diagram AVWDDT_20253_p30.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  SubcontractorIdTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
minLength  10
maxLength  320
annotation
documentation
00545
source <xs:element name="Justification">
  <xs:annotation>
    <xs:documentation>00545</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="10"/>
      <xs:maxLength value="320"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element LanguagePreference
diagram AVWDDT_20253_p31.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  SubcontractorIdTypeTempComCompanyIDTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  4
totalDigits  1
annotation
documentation
00919
source <xs:element name="LanguagePreference">
  <xs:annotation>
    <xs:documentation>00919</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="4"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element LateWorksContractDeclReason
diagram AVWDDT_20253_p32.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
00931
source <xs:element name="LateWorksContractDeclReason">
  <xs:annotation>
    <xs:documentation>00931</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Name
diagram AVWDDT_20253_p33.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesContactPersonTypeOtherParticipantType
facets
Kind  Value  Annotation
maxLength  48
annotation
documentation
00726
source <xs:element name="Name">
  <xs:annotation>
    <xs:documentation>00726</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="48"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

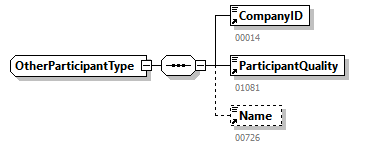

element OtherParticipant
diagram AVWDDT_20253_p34.png
type OtherParticipantType
properties
content  complex
children CompanyIDParticipantQualityName
used by
element  WorksGlobalProject
annotation
documentation
90477
source <xs:element name="OtherParticipant" type="OtherParticipantType">
  <xs:annotation>
    <xs:documentation>90477</xs:documentation>
  </xs:annotation>
</xs:element>

element ParticipantQuality
diagram AVWDDT_20253_p35.png
type restriction of xs:integer
properties
content  simple
used by
complexType  OtherParticipantType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  4
totalDigits  1
annotation
documentation
01081
source <xs:element name="ParticipantQuality">
  <xs:annotation>
    <xs:documentation>01081</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="4"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PhoneNbr
diagram AVWDDT_20253_p36.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00677
source <xs:element name="PhoneNbr">
  <xs:annotation>
    <xs:documentation>00677</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PostBox
diagram AVWDDT_20253_p37.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00519
source <xs:element name="PostBox">
  <xs:annotation>
    <xs:documentation>00519</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

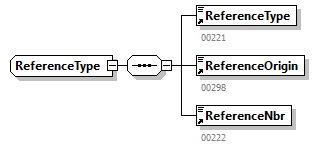

element Reference
diagram AVWDDT_20253_p38.png
type ReferenceType
properties
content  complex
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Form
annotation
documentation
90082
source <xs:element name="Reference" type="ReferenceType">
  <xs:annotation>
    <xs:documentation>90082</xs:documentation>
  </xs:annotation>
</xs:element>

element ReferenceNbr
diagram AVWDDT_20253_p39.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  ReferenceTypeWorksContractType
facets
Kind  Value  Annotation
minLength  1
maxLength  20
annotation
documentation
00222
appinfo
TicketNumber_conversion1
source <xs:element name="ReferenceNbr">
  <xs:annotation>
    <xs:documentation>00222</xs:documentation>
    <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceOrigin
diagram AVWDDT_20253_p40.png
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  1
enumeration  2
annotation
documentation
00298
source <xs:element name="ReferenceOrigin">
  <xs:annotation>
    <xs:documentation>00298</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceType
diagram AVWDDT_20253_p41.png
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  1
annotation
documentation
00221
source <xs:element name="ReferenceType">
  <xs:annotation>
    <xs:documentation>00221</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

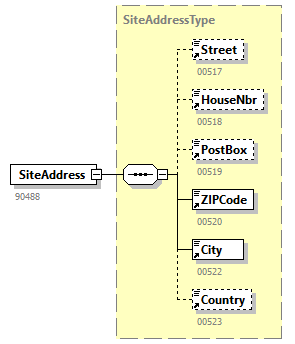

element SiteAddress
diagram AVWDDT_20253_p42.png
type SiteAddressType
properties
content  complex
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  WorksGlobalProject
annotation
documentation
90488
source <xs:element name="SiteAddress" type="SiteAddressType">
  <xs:annotation>
    <xs:documentation>90488</xs:documentation>
  </xs:annotation>
</xs:element>

element Street
diagram AVWDDT_20253_p43.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
maxLength  42
annotation
documentation
00517
source <xs:element name="Street">
  <xs:annotation>
    <xs:documentation>00517</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="42"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SubcontractorActivity
diagram AVWDDT_20253_p44.png
type restriction of xs:integer
properties
content  simple
used by
complexType  SubcontractorActivityInfoType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  28
totalDigits  2
annotation
documentation
00934
source <xs:element name="SubcontractorActivity">
  <xs:annotation>
    <xs:documentation>00934</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="28"/>
      <xs:totalDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

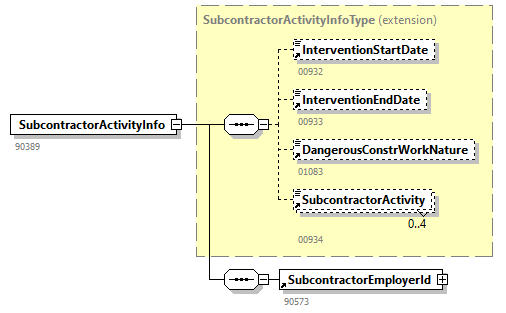

element SubcontractorActivityInfo
diagram AVWDDT_20253_p45.png
type extension of SubcontractorActivityInfoType
properties
content  complex
children InterventionStartDateInterventionEndDateDangerousConstrWorkNatureSubcontractorActivitySubcontractorEmployerId
used by
element  SubcontractorId
annotation
documentation
90389
source <xs:element name="SubcontractorActivityInfo">
  <xs:annotation>
    <xs:documentation>90389</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SubcontractorActivityInfoType">
        <xs:sequence>
          <xs:element ref="SubcontractorEmployerId"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element SubcontractorEmployerId
diagram AVWDDT_20253_p46.png
type extension of SubcontractorEmployerIdType
properties
content  complex
children CompanyIDVATNbrForeignCompanyIDDenominationAddress
used by
element  SubcontractorActivityInfo
annotation
documentation
90573
source <xs:element name="SubcontractorEmployerId">
  <xs:annotation>
    <xs:documentation>90573</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SubcontractorEmployerIdType">
        <xs:sequence>
          <xs:element ref="Address" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

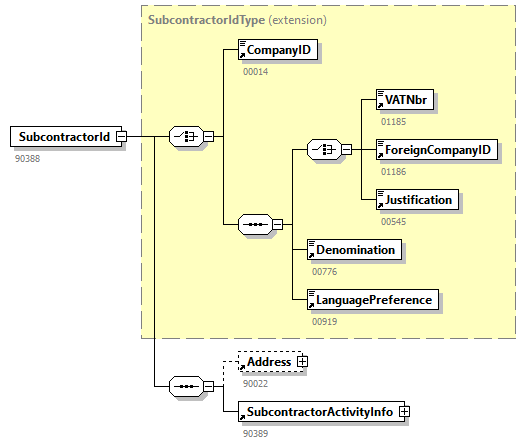

element SubcontractorId
diagram AVWDDT_20253_p47.png
type extension of SubcontractorIdType
properties
content  complex
children CompanyIDVATNbrForeignCompanyIDJustificationDenominationLanguagePreferenceAddressSubcontractorActivityInfo
used by
element  WorksContract
annotation
documentation
90388
source <xs:element name="SubcontractorId">
  <xs:annotation>
    <xs:documentation>90388</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SubcontractorIdType">
        <xs:sequence>
          <xs:element ref="Address" minOccurs="0"/>
          <xs:element ref="SubcontractorActivityInfo"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

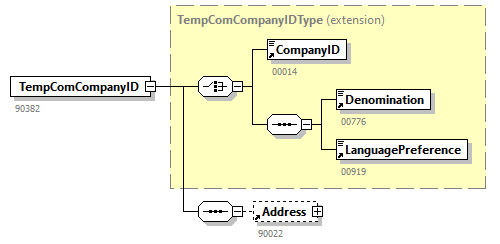

element TempComCompanyID
diagram AVWDDT_20253_p48.png
type extension of TempComCompanyIDType
properties
content  complex
children CompanyIDDenominationLanguagePreferenceAddress
used by
element  WorksContractDeclarantId
annotation
documentation
90382
source <xs:element name="TempComCompanyID">
  <xs:annotation>
    <xs:documentation>90382</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="TempComCompanyIDType">
        <xs:sequence>
          <xs:element ref="Address" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element TypeForm
diagram AVWDDT_20253_p49.png
type restriction of xs:string
properties
content  simple
used by

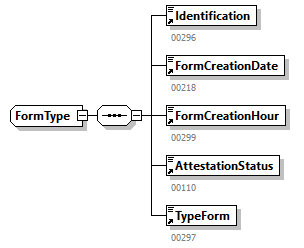

complexType  FormType
facets
Kind  Value  Annotation
maxLength  2
enumeration  SU
annotation
documentation
00297
source <xs:element name="TypeForm">
  <xs:annotation>
    <xs:documentation>00297</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="2"/>
      <xs:enumeration value="SU"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VATNbr
diagram AVWDDT_20253_p50.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  SubcontractorEmployerIdTypeSubcontractorIdTypeWorksGlobalProjectOwnerIdType
facets
Kind  Value  Annotation
maxLength  30
annotation
documentation
01185
source <xs:element name="VATNbr">
  <xs:annotation>
    <xs:documentation>01185</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="30"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

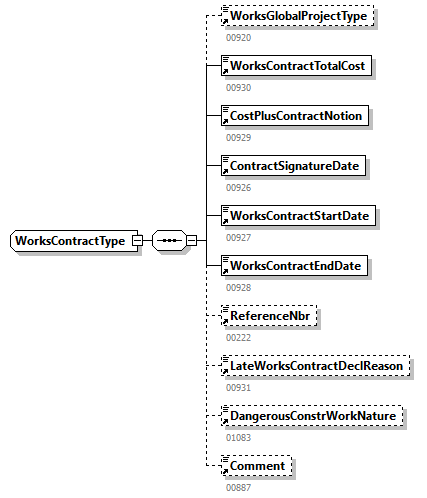

element WorksContract
diagram AVWDDT_20253_p51.png
type extension of WorksContractType
properties
content  complex
children WorksGlobalProjectTypeWorksContractTotalCostCostPlusContractNotionContractSignatureDateWorksContractStartDateWorksContractEndDateReferenceNbrLateWorksContractDeclReasonDangerousConstrWorkNatureCommentCoordinatesContactPersonSubcontractorId
used by
element  Form
annotation
documentation
90387
source <xs:element name="WorksContract">
  <xs:annotation>
    <xs:documentation>90387</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="WorksContractType">
        <xs:sequence>
          <xs:element ref="CoordinatesContactPerson"/>
          <xs:element ref="SubcontractorId" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element WorksContractDeclarantId
diagram AVWDDT_20253_p52.png
type extension of WorksContractDeclarantIdType
properties
content  complex
children CompanyIDCommunicationTempComCompanyID
used by
element  Form
annotation
documentation
90381
source <xs:element name="WorksContractDeclarantId">
  <xs:annotation>
    <xs:documentation>90381</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="WorksContractDeclarantIdType">
        <xs:sequence>
          <xs:element ref="Communication" minOccurs="0"/>
          <xs:element ref="TempComCompanyID" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element WorksContractEndDate
diagram AVWDDT_20253_p53.png
type restriction of xs:date
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00928
source <xs:element name="WorksContractEndDate">
  <xs:annotation>
    <xs:documentation>00928</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorksContractStartDate
diagram AVWDDT_20253_p54.png
type restriction of xs:date
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00927
source <xs:element name="WorksContractStartDate">
  <xs:annotation>
    <xs:documentation>00927</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorksContractTotalCost
diagram AVWDDT_20253_p55.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksContractType
facets
Kind  Value  Annotation
totalDigits  12
annotation
documentation
00930
source <xs:element name="WorksContractTotalCost">
  <xs:annotation>
    <xs:documentation>00930</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="12"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

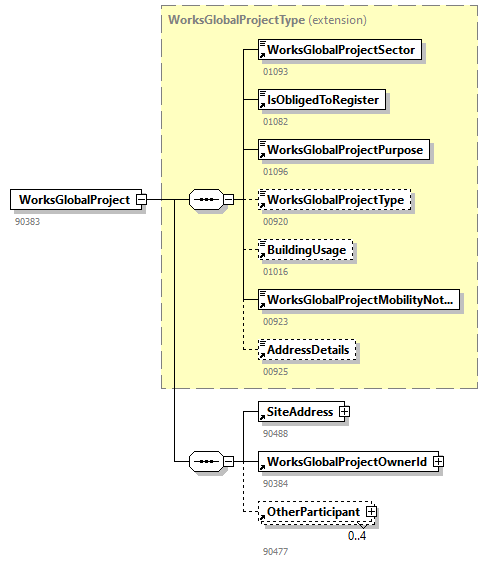

element WorksGlobalProject
diagram AVWDDT_20253_p56.png
type extension of WorksGlobalProjectType
properties
content  complex
children WorksGlobalProjectSectorIsObligedToRegisterWorksGlobalProjectPurposeWorksGlobalProjectTypeBuildingUsageWorksGlobalProjectMobilityNotionAddressDetailsSiteAddressWorksGlobalProjectOwnerIdOtherParticipant
used by
element  Form
annotation
documentation
90383
source <xs:element name="WorksGlobalProject">
  <xs:annotation>
    <xs:documentation>90383</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="WorksGlobalProjectType">
        <xs:sequence>
          <xs:element ref="SiteAddress"/>
          <xs:element ref="WorksGlobalProjectOwnerId"/>
          <xs:element ref="OtherParticipant" minOccurs="0" maxOccurs="4"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element WorksGlobalProjectMobilityNotion
diagram AVWDDT_20253_p57.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
00923
source <xs:element name="WorksGlobalProjectMobilityNotion">
  <xs:annotation>
    <xs:documentation>00923</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

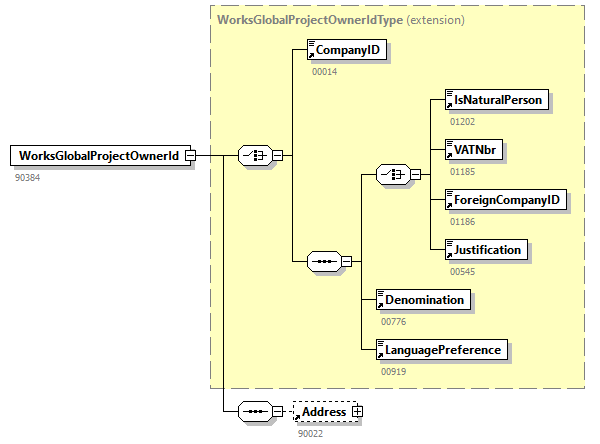

element WorksGlobalProjectOwnerId
diagram AVWDDT_20253_p58.png
type extension of WorksGlobalProjectOwnerIdType
properties
content  complex
children CompanyIDIsNaturalPersonVATNbrForeignCompanyIDJustificationDenominationLanguagePreferenceAddress
used by
element  WorksGlobalProject
annotation
documentation
90384
source <xs:element name="WorksGlobalProjectOwnerId">
  <xs:annotation>
    <xs:documentation>90384</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="WorksGlobalProjectOwnerIdType">
        <xs:sequence>
          <xs:element ref="Address" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element WorksGlobalProjectPurpose
diagram AVWDDT_20253_p59.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  2
totalDigits  1
annotation
documentation
01096
source <xs:element name="WorksGlobalProjectPurpose">
  <xs:annotation>
    <xs:documentation>01096</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="2"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorksGlobalProjectSector
diagram AVWDDT_20253_p60.png
type restriction of xs:integer
properties
content  simple
used by
complexType  WorksGlobalProjectType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  3
totalDigits  1
annotation
documentation
01093
source <xs:element name="WorksGlobalProjectSector">
  <xs:annotation>
    <xs:documentation>01093</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="3"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorksGlobalProjectType
diagram AVWDDT_20253_p61.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  WorksContractTypeWorksGlobalProjectType
facets
Kind  Value  Annotation
totalDigits  2
enumeration  1
enumeration  2
enumeration  3
enumeration  4
enumeration  5
enumeration  6
enumeration  7
enumeration  8
enumeration  99
annotation
documentation
00920
source <xs:element name="WorksGlobalProjectType">
  <xs:annotation>
    <xs:documentation>00920</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="2"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
      <xs:enumeration value="4"/>
      <xs:enumeration value="5"/>
      <xs:enumeration value="6"/>
      <xs:enumeration value="7"/>
      <xs:enumeration value="8"/>
      <xs:enumeration value="99"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ZIPCode
diagram AVWDDT_20253_p62.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeSiteAddressType
facets
Kind  Value  Annotation
maxLength  9
annotation
documentation
00520
source <xs:element name="ZIPCode">
  <xs:annotation>
    <xs:documentation>00520</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType AddressType
diagram AVWDDT_20253_p63.png
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  Address
source <xs:complexType name="AddressType">
  <xs:sequence>
    <xs:element ref="Street"/>
    <xs:element ref="HouseNbr"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode"/>
    <xs:element ref="City"/>
    <xs:element ref="Country"/>
  </xs:sequence>
</xs:complexType>

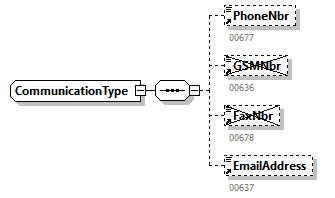

complexType CommunicationType
diagram AVWDDT_20253_p64.png
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
element  Communication
source <xs:complexType name="CommunicationType">
  <xs:sequence>
    <xs:element ref="PhoneNbr" minOccurs="0"/>
    <xs:element ref="GSMNbr" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="FaxNbr" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="EmailAddress" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesContactPersonType
diagram AVWDDT_20253_p65.png
children NameFirstName
used by
element  CoordinatesContactPerson
source <xs:complexType name="CoordinatesContactPersonType">
  <xs:sequence>
    <xs:element ref="Name"/>
    <xs:element ref="FirstName" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType FormType
diagram AVWDDT_20253_p66.png
children IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by
element  Form
source <xs:complexType name="FormType">
  <xs:sequence>
    <xs:element ref="Identification"/>
    <xs:element ref="FormCreationDate"/>
    <xs:element ref="FormCreationHour"/>
    <xs:element ref="AttestationStatus"/>
    <xs:element ref="TypeForm"/>
  </xs:sequence>
</xs:complexType>

complexType OtherParticipantType
diagram AVWDDT_20253_p67.png
children CompanyIDParticipantQualityName
used by
element  OtherParticipant
source <xs:complexType name="OtherParticipantType">
  <xs:sequence>
    <xs:element ref="CompanyID"/>
    <xs:element ref="ParticipantQuality"/>
    <xs:element ref="Name" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType ReferenceType
diagram AVWDDT_20253_p68.png
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Reference
source <xs:complexType name="ReferenceType">
  <xs:sequence>
    <xs:element ref="ReferenceType"/>
    <xs:element ref="ReferenceOrigin"/>
    <xs:element ref="ReferenceNbr"/>
  </xs:sequence>
</xs:complexType>

complexType SiteAddressType
diagram AVWDDT_20253_p69.png
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  SiteAddress
source <xs:complexType name="SiteAddressType">
  <xs:sequence>
    <xs:element ref="Street" minOccurs="0"/>
    <xs:element ref="HouseNbr" minOccurs="0"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode"/>
    <xs:element ref="City"/>
    <xs:element ref="Country" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType SubcontractorActivityInfoType
diagram AVWDDT_20253_p70.png
children InterventionStartDateInterventionEndDateDangerousConstrWorkNatureSubcontractorActivity
used by
element  SubcontractorActivityInfo
source <xs:complexType name="SubcontractorActivityInfoType">
  <xs:sequence>
    <xs:element ref="InterventionStartDate" minOccurs="0"/>
    <xs:element ref="InterventionEndDate" minOccurs="0"/>
    <xs:element ref="DangerousConstrWorkNature" minOccurs="0"/>
    <xs:element ref="SubcontractorActivity" minOccurs="0" maxOccurs="4"/>
  </xs:sequence>
</xs:complexType>

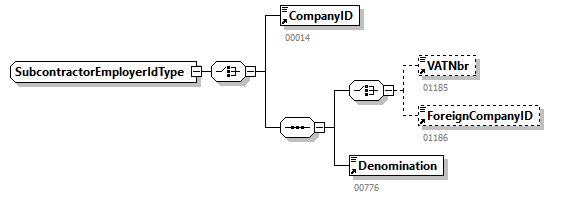

complexType SubcontractorEmployerIdType
diagram AVWDDT_20253_p71.png
children CompanyIDVATNbrForeignCompanyIDDenomination
used by
element  SubcontractorEmployerId
source <xs:complexType name="SubcontractorEmployerIdType">
  <xs:choice>
    <xs:element ref="CompanyID"/>
    <xs:sequence>
      <xs:choice>
        <xs:element ref="VATNbr" minOccurs="0"/>
        <xs:element ref="ForeignCompanyID" minOccurs="0"/>
      </xs:choice>
      <xs:element ref="Denomination"/>
    </xs:sequence>
  </xs:choice>
</xs:complexType>

complexType SubcontractorIdType
diagram AVWDDT_20253_p72.png
children CompanyIDVATNbrForeignCompanyIDJustificationDenominationLanguagePreference
used by
element  SubcontractorId
source <xs:complexType name="SubcontractorIdType">
  <xs:choice>
    <xs:element ref="CompanyID"/>
    <xs:sequence>
      <xs:choice>
        <xs:element ref="VATNbr"/>
        <xs:element ref="ForeignCompanyID"/>
        <xs:element ref="Justification"/>
      </xs:choice>
      <xs:element ref="Denomination"/>
      <xs:element ref="LanguagePreference"/>
    </xs:sequence>
  </xs:choice>
</xs:complexType>

complexType TempComCompanyIDType
diagram AVWDDT_20253_p73.png
children CompanyIDDenominationLanguagePreference
used by
element  TempComCompanyID
source <xs:complexType name="TempComCompanyIDType">
  <xs:choice>
    <xs:element ref="CompanyID"/>
    <xs:sequence>
      <xs:element ref="Denomination"/>
      <xs:element ref="LanguagePreference"/>
    </xs:sequence>
  </xs:choice>
</xs:complexType>

complexType WorksContractDeclarantIdType
diagram AVWDDT_20253_p74.png
children CompanyID
used by
element  WorksContractDeclarantId
source <xs:complexType name="WorksContractDeclarantIdType">
  <xs:sequence>
    <xs:element ref="CompanyID"/>
  </xs:sequence>
</xs:complexType>

complexType WorksContractType
diagram AVWDDT_20253_p75.png
children WorksGlobalProjectTypeWorksContractTotalCostCostPlusContractNotionContractSignatureDateWorksContractStartDateWorksContractEndDateReferenceNbrLateWorksContractDeclReasonDangerousConstrWorkNatureComment
used by
element  WorksContract
source <xs:complexType name="WorksContractType">
  <xs:sequence>
    <xs:element ref="WorksGlobalProjectType" minOccurs="0"/>
    <xs:element ref="WorksContractTotalCost"/>
    <xs:element ref="CostPlusContractNotion"/>
    <xs:element ref="ContractSignatureDate"/>
    <xs:element ref="WorksContractStartDate"/>
    <xs:element ref="WorksContractEndDate"/>
    <xs:element ref="ReferenceNbr" minOccurs="0"/>
    <xs:element ref="LateWorksContractDeclReason" minOccurs="0"/>
    <xs:element ref="DangerousConstrWorkNature" minOccurs="0"/>
    <xs:element ref="Comment" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType WorksGlobalProjectOwnerIdType
diagram AVWDDT_20253_p76.png
children CompanyIDIsNaturalPersonVATNbrForeignCompanyIDJustificationDenominationLanguagePreference
used by
element  WorksGlobalProjectOwnerId
source <xs:complexType name="WorksGlobalProjectOwnerIdType">
  <xs:choice>
    <xs:element ref="CompanyID"/>
    <xs:sequence>
      <xs:choice>
        <xs:element ref="IsNaturalPerson"/>
        <xs:element ref="VATNbr"/>
        <xs:element ref="ForeignCompanyID"/>
        <xs:element ref="Justification"/>
      </xs:choice>
      <xs:element ref="Denomination"/>
      <xs:element ref="LanguagePreference"/>
    </xs:sequence>
  </xs:choice>
</xs:complexType>

complexType WorksGlobalProjectType
diagram AVWDDT_20253_p77.png
children WorksGlobalProjectSectorIsObligedToRegisterWorksGlobalProjectPurposeWorksGlobalProjectTypeBuildingUsageWorksGlobalProjectMobilityNotionAddressDetails
used by
element  WorksGlobalProject
source <xs:complexType name="WorksGlobalProjectType">
  <xs:sequence>
    <xs:element ref="WorksGlobalProjectSector"/>
    <xs:element ref="IsObligedToRegister"/>
    <xs:element ref="WorksGlobalProjectPurpose"/>
    <xs:element ref="WorksGlobalProjectType" minOccurs="0"/>
    <xs:element ref="BuildingUsage" minOccurs="0"/>
    <xs:element ref="WorksGlobalProjectMobilityNotion"/>
    <xs:element ref="AddressDetails" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
