Schema SocialCharges_20244.xsd

ROOT ELEMENT:	SocialCharges
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://socialsecurity.be/xml/ns/SocialCharges

Elements	Complex types
CalendarYear	SocialChargesCalculationDetailsType
CompensationAmount	SocialChargesDetailsType
CompensationLimitAmount	SocialChargesQuarterDetailsType
CompensationPercentage
ContributionTotalAmount
Quarter
RedistLimitMaxAmount
RedistLimitMinAmount
RedistMaxAmount
RedistMinAmount
RedistPercentage
RedistributionAmount
SocialCharges
SocialChargesCalculationDetails
SocialChargesDetails
SocialChargesQuarterDetails
SocialChargesTotalAmount
SocialChargesType
SpecialContributionPercentage

element CalendarYear

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesDetailsType
facets	Kind  Value  Annotation minInclusive  1900 maxInclusive  9999 totalDigits  4
annotation	documentation 01004
source	<xs:element name="CalendarYear">   <xs:annotation>     <xs:documentation>01004</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1900"/>       <xs:maxInclusive value="9999"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompensationAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  SocialChargesCalculationDetailsTypeSocialChargesQuarterDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01251
source	<xs:element name="CompensationAmount">   <xs:annotation>     <xs:documentation>01251</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompensationLimitAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01296
source	<xs:element name="CompensationLimitAmount">   <xs:annotation>     <xs:documentation>01296</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompensationPercentage

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation maxLength  5 pattern  \d{2}.\d{2}
annotation	documentation 01295
source	<xs:element name="CompensationPercentage">   <xs:annotation>     <xs:documentation>01295</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="5"/>       <xs:pattern value="\d{2}.\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ContributionTotalAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialChargesQuarterDetailsType
facets	Kind  Value  Annotation maxLength  16
annotation	documentation 00426
source	<xs:element name="ContributionTotalAmount">   <xs:annotation>     <xs:documentation>00426</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="16"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Quarter

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesQuarterDetailsType
facets	Kind  Value  Annotation totalDigits  5 pattern  \d{4}(1|2|3|4)
annotation	documentation 00013 appinfo xs:yearQuarter
source	<xs:element name="Quarter">   <xs:annotation>     <xs:documentation>00013</xs:documentation>     <xs:appinfo source="TDOType">xs:yearQuarter</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="5"/>       <xs:pattern value="\d{4}(1|2|3|4)"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistLimitMaxAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01291
source	<xs:element name="RedistLimitMaxAmount">   <xs:annotation>     <xs:documentation>01291</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistLimitMinAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01292
source	<xs:element name="RedistLimitMinAmount">   <xs:annotation>     <xs:documentation>01292</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistMaxAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01294
source	<xs:element name="RedistMaxAmount">   <xs:annotation>     <xs:documentation>01294</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistMinAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01293
source	<xs:element name="RedistMinAmount">   <xs:annotation>     <xs:documentation>01293</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistPercentage

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation maxLength  5 pattern  \d{2}.\d{2}
annotation	documentation 01290 appinfo xs:companyId
source	<xs:element name="RedistPercentage">   <xs:annotation>     <xs:documentation>01290</xs:documentation>     <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="5"/>       <xs:pattern value="\d{2}.\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RedistributionAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesQuarterDetailsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 01297
source	<xs:element name="RedistributionAmount">   <xs:annotation>     <xs:documentation>01297</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SocialCharges

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
properties	content  complex
children	SocialChargesDetails
annotation	documentation 90625
source	<xs:element name="SocialCharges">   <xs:annotation>     <xs:documentation>90625</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="SocialChargesDetails"/>     </xs:sequence>   </xs:complexType> </xs:element>

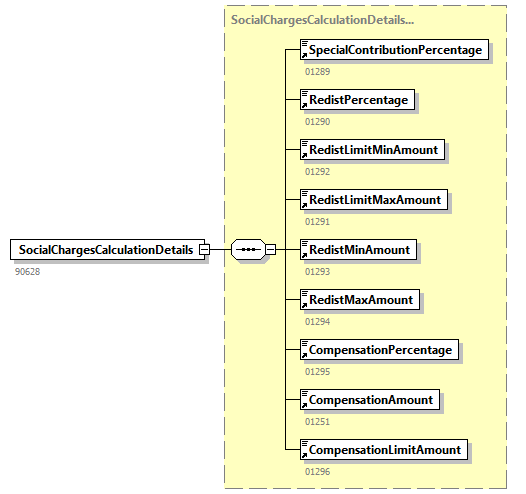

element SocialChargesCalculationDetails

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	SocialChargesCalculationDetailsType
properties	content  complex
children	SpecialContributionPercentageRedistPercentageRedistLimitMinAmountRedistLimitMaxAmountRedistMinAmountRedistMaxAmountCompensationPercentageCompensationAmountCompensationLimitAmount
used by	element  SocialChargesDetails
annotation	documentation 90628
source	<xs:element name="SocialChargesCalculationDetails" type="SocialChargesCalculationDetailsType">   <xs:annotation>     <xs:documentation>90628</xs:documentation>   </xs:annotation> </xs:element>

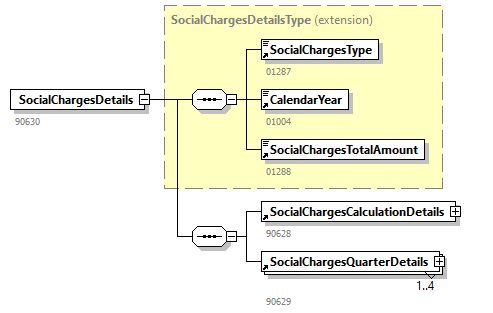

element SocialChargesDetails

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	extension of SocialChargesDetailsType
properties	content  complex
children	SocialChargesTypeCalendarYearSocialChargesTotalAmountSocialChargesCalculationDetailsSocialChargesQuarterDetails
used by	element  SocialCharges
annotation	documentation 90630
source	<xs:element name="SocialChargesDetails">   <xs:annotation>     <xs:documentation>90630</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SocialChargesDetailsType">         <xs:sequence>           <xs:element ref="SocialChargesCalculationDetails"/>           <xs:element ref="SocialChargesQuarterDetails" maxOccurs="4"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

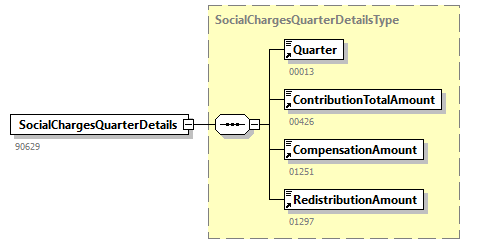

element SocialChargesQuarterDetails

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	SocialChargesQuarterDetailsType
properties	content  complex
children	QuarterContributionTotalAmountCompensationAmountRedistributionAmount
used by	element  SocialChargesDetails
annotation	documentation 90629
source	<xs:element name="SocialChargesQuarterDetails" type="SocialChargesQuarterDetailsType">   <xs:annotation>     <xs:documentation>90629</xs:documentation>   </xs:annotation> </xs:element>

element SocialChargesTotalAmount

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialChargesDetailsType
facets	Kind  Value  Annotation maxLength  16 pattern  [+-]?\d{1,15}
annotation	documentation 01288
source	<xs:element name="SocialChargesTotalAmount">   <xs:annotation>     <xs:documentation>01288</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="16"/>       <xs:pattern value="[+-]?\d{1,15}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SocialChargesType

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:integer
properties	content  simple
used by	complexType  SocialChargesDetailsType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 01287
source	<xs:element name="SocialChargesType">   <xs:annotation>     <xs:documentation>01287</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SpecialContributionPercentage

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
type	restriction of xs:string
properties	content  simple
used by	complexType  SocialChargesCalculationDetailsType
facets	Kind  Value  Annotation maxLength  5 pattern  \d{2}.\d{2}
annotation	documentation 01289
source	<xs:element name="SpecialContributionPercentage">   <xs:annotation>     <xs:documentation>01289</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="5"/>       <xs:pattern value="\d{2}.\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

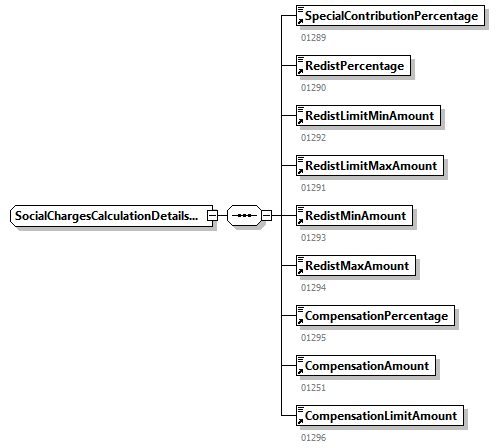

complexType SocialChargesCalculationDetailsType

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
children	SpecialContributionPercentageRedistPercentageRedistLimitMinAmountRedistLimitMaxAmountRedistMinAmountRedistMaxAmountCompensationPercentageCompensationAmountCompensationLimitAmount
used by	element  SocialChargesCalculationDetails
source	<xs:complexType name="SocialChargesCalculationDetailsType">   <xs:sequence>     <xs:element ref="SpecialContributionPercentage"/>     <xs:element ref="RedistPercentage"/>     <xs:element ref="RedistLimitMinAmount"/>     <xs:element ref="RedistLimitMaxAmount"/>     <xs:element ref="RedistMinAmount"/>     <xs:element ref="RedistMaxAmount"/>     <xs:element ref="CompensationPercentage"/>     <xs:element ref="CompensationAmount"/>     <xs:element ref="CompensationLimitAmount"/>   </xs:sequence> </xs:complexType>

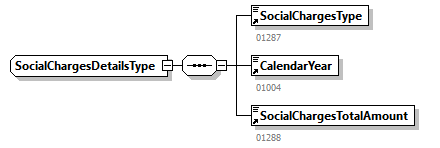

complexType SocialChargesDetailsType

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
children	SocialChargesTypeCalendarYearSocialChargesTotalAmount
used by	element  SocialChargesDetails
source	<xs:complexType name="SocialChargesDetailsType">   <xs:sequence>     <xs:element ref="SocialChargesType"/>     <xs:element ref="CalendarYear"/>     <xs:element ref="SocialChargesTotalAmount"/>   </xs:sequence> </xs:complexType>

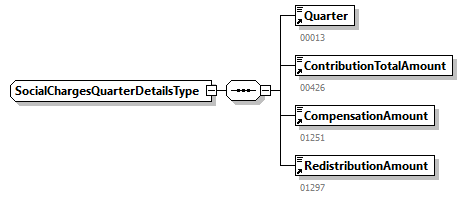

complexType SocialChargesQuarterDetailsType

diagram
namespace	http://socialsecurity.be/xml/ns/SocialCharges
children	QuarterContributionTotalAmountCompensationAmountRedistributionAmount
used by	element  SocialChargesQuarterDetails
source	<xs:complexType name="SocialChargesQuarterDetailsType">   <xs:sequence>     <xs:element ref="Quarter"/>     <xs:element ref="ContributionTotalAmount"/>     <xs:element ref="CompensationAmount"/>     <xs:element ref="RedistributionAmount"/>   </xs:sequence> </xs:complexType>
