Schema NOTIFICATION_20244.xsd

ROOT ELEMENT:	NOTIFICATION
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types
Action	AddressType
ActivityCode	AnomalyComplInformationType
ActivityWithRisk	AnomalyLocationType
AdditionalScaleSalaryReference	AnomalyReportType
AdditionalScaleSalarySequenceNbr	AVWDDTImpactReportType
AdditionalScaleSalaryStartDate	BlockActionType
Address	CapeloImpactReportType
AnomalyClass	CBSSInformationType
AnomalyComplInformation	CommunicationType
AnomalyLabel	ConcernedQuarterType
AnomalyLocation	ConstructionControlCardsType
AnomalyReport	CoordinatesContactPersonType
ApplicationData	DailyRegistrationAfterType

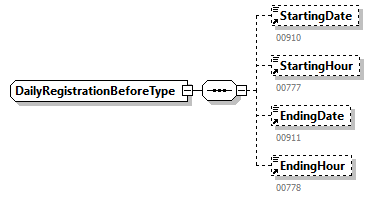

AssignmentType	DailyRegistrationBeforeType
AttestationStatus	DailyRegistrationDclImpactReportType

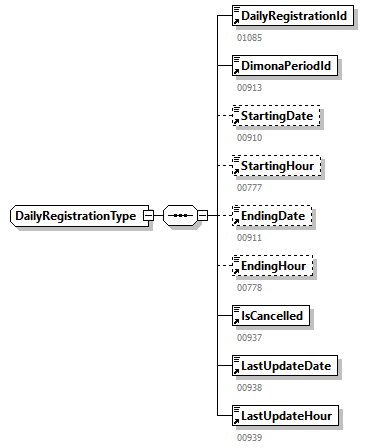

AVWDDTId	DailyRegistrationType
AVWDDTImpactReport	DataValueType
BlockAction	DeclarationComplInformationsType

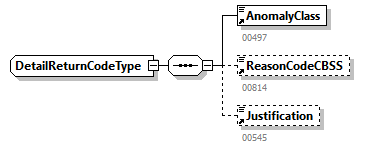

BlockName	DetailReturnCodeType
BonusPaymentFrequency	DimonaFeaturesType
CalendarYear	DimonaImpactReportType

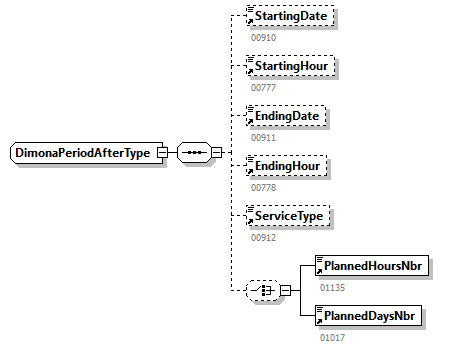

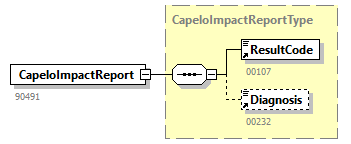

CapeloImpactReport	DimonaPeriodAfterType

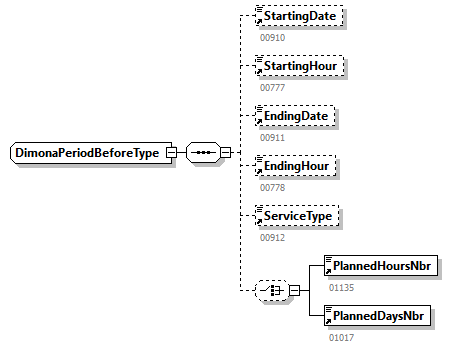

CareerElementSequenceNbr	DimonaPeriodBeforeType

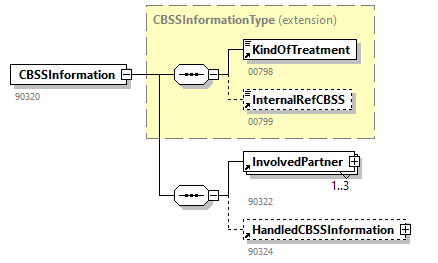

CBSSInformation	DimonaPeriodType
Channel	DmfADimonaConfrontationType

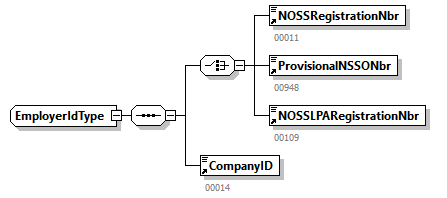

City	EmployerIdType
ColumnNbr	FieldInformationType

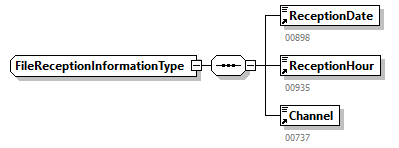

Communication	FileReceptionInformationType

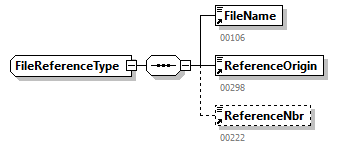

CompanyID	FileReferenceType

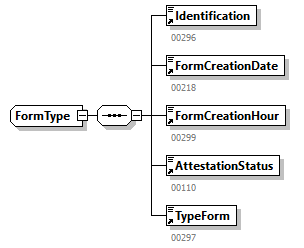

CompanyVehicleSequenceNbr	FormType
CompensationCode	HandledCBSSInformationType
ComplIndemnityAgreementNotion	HandledOriginalFileType
ComplIndemnityAmountAdjustNotion	HandledOriginalFormType
ConcernedQuarter	HandledReferenceType
ConstructionControlCards	HandledSenderIdentificationType

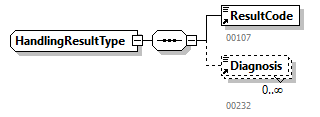

ContributionSequenceNbr	HandlingResultType
ContributionType	ImpactReportType
ContributionWorkerCode	InvolvedPartnerType

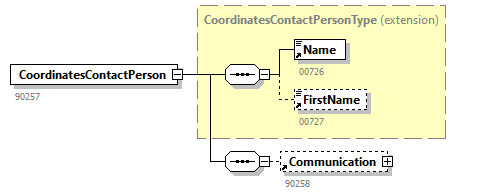

CoordinatesContactPerson	NaturalPersonType

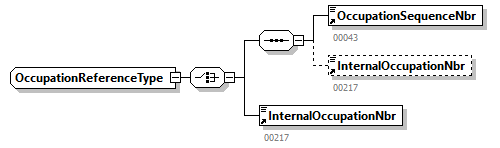

CorrectionType	OccupationReferenceType
Country	PathType
CUNPCalculatedAmount	QuotaFeaturesType
DailyContractNbr	ReferenceType
DailyRegistration	SmallStatutesInformationType

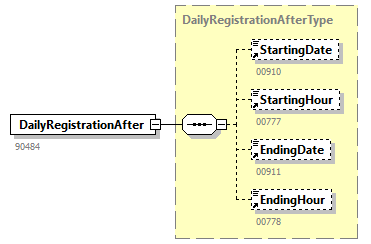

DailyRegistrationAfter	StudentPlaceOfWorkType
DailyRegistrationBefore	SystemCorrectionType

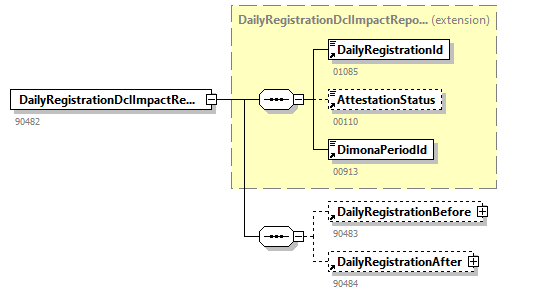

DailyRegistrationDclImpactReport	UsingEmployerType
DailyRegistrationId	WorkerRecordIdentificationType
DataValue
DateSubmission

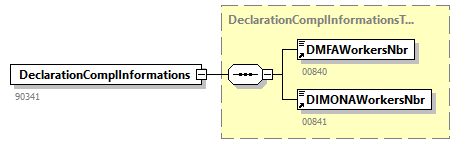

DeclarationComplInformations
DeductionCode
DeductionDetailSequenceNbr
Denomination
DetailReturnCode
Diagnosis

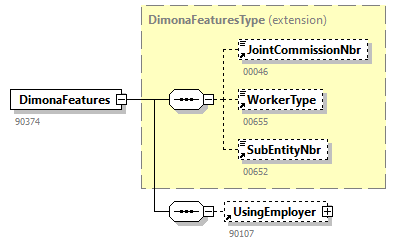

DimonaFeatures
DimonaImpactReport
DimonaPeriod

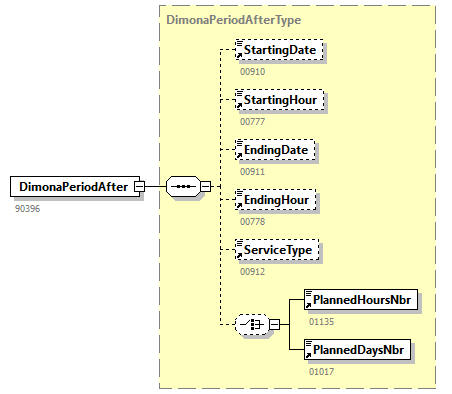

DimonaPeriodAfter
DimonaPeriodBefore
DimonaPeriodId
DIMONAWorkersNbr

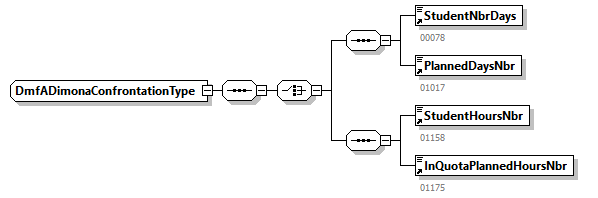

DmfADimonaConfrontation
DMFAWorkersNbr
EarlyRetirementCode
EmailAddress
EmployerClass
EmployerId
EmployerNotion
EmployerSequenceNbr
EmploymentNature
EndingDate
EndingDateRepository
EndingHour
ErrorID
ExceedingDaysNbr
ExceedingHoursNbr
FaxNbr
FieldInformation
FieldName
FileName
FileReceptionInformation

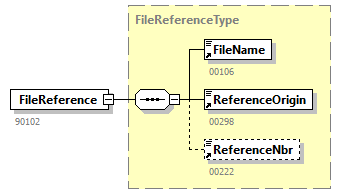

FileReference
FinancialElementCode
FinancialElementType
FirstMonthC32ANbr
FirstName
ForeignCompanyID
Form
FormCreationDate
FormCreationHour
FunctionNature
GSMNbr
HalfTimeCareerInterruptionNotion
HandledCBSSInformation

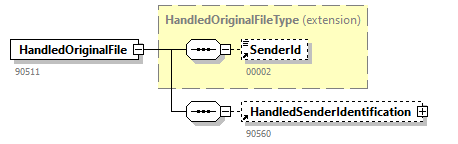

HandledOriginalFile
HandledOriginalForm
HandledReference

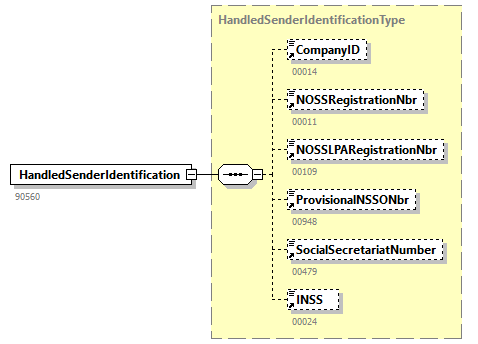

HandledSenderIdentification
HandlingResult
HourSubmission
HouseNbr
Identification
ImpactReport
IncapacityDegree
IndemnityNature
InQuotaPlannedHoursNbr
INSS
INSSUser
InstitutionType
InternalOccupationNbr
InternalRefCBSS

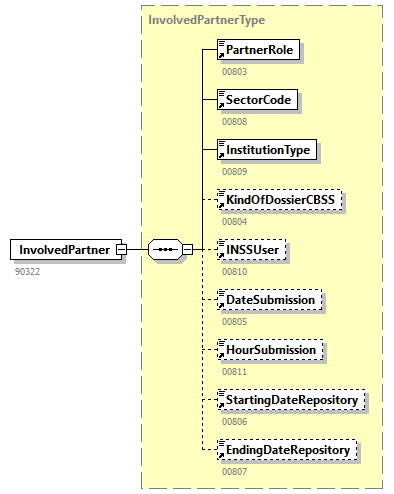

InvolvedPartner
IsCancelled
IsLate
IsLocked
JointCommissionNbr
Justification
KindOfDossierCBSS
KindOfTreatment
LastUpdateDate
LastUpdateHour
LineNbr
Location
Name
Nationality

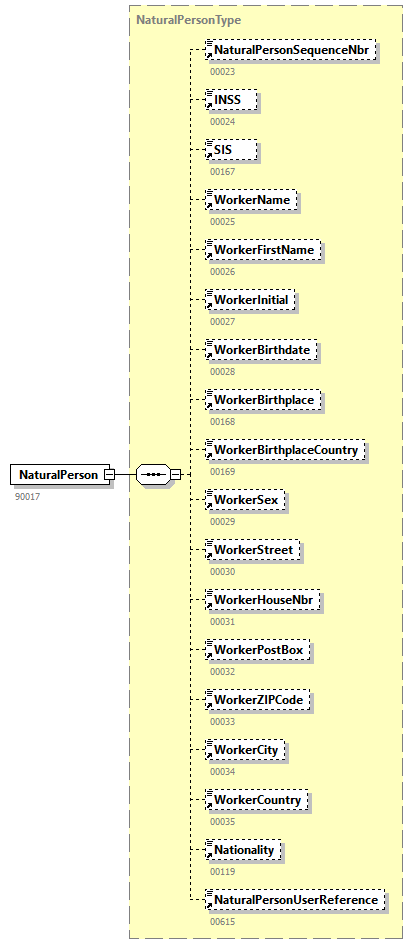

NaturalPerson
NaturalPersonSequenceNbr
NaturalPersonUserReference
NewValue
NextMonthC32ANbr
NonSituableAbsenceCode
NOSSLPARegistrationNbr
NOSSRegistrationNbr
NOTIFICATION
NPCalculatedAmount
OccupationPSDStartDate

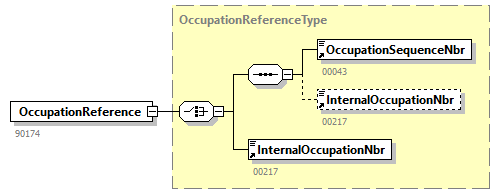

OccupationReference
OccupationSequenceNbr
OccupationUserReference
PartnerRole
Path
PecuniarySeniorityStartDate
PercentagePaid
PhoneNbr
PlannedDaysNbr
PlannedHoursNbr
PostBox
ProvisionalNSSONbr
PublicSectorInstitutionType
PublicSectorPersonnelCategory
Quarter

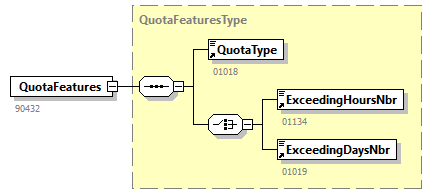

QuotaFeatures
QuotaType
ReasonCodeCBSS
ReceptionDate
ReceptionHour
Reference
ReferenceNbr
ReferenceOrigin
ReferenceType
RemunCode
RemunSequenceNbr
ReorganisationMeasure
ReplacementAccordanceWCCNotion
ResultCode
SalaryScaleReference
ScaleSalarySequenceNbr
ScaleSalaryStartDate
SectorCode
SenderId
ServiceCode
ServiceExemptionNotion
ServiceSequenceNbr
ServiceType
SIS
SmallStatutesInformation
SocialSecretariatNumber
StartingDate
StartingDateRepository
StartingHour
Street
StudentHoursNbr
StudentNbrDays
StudentPlaceOfWork
SubEntityNbr

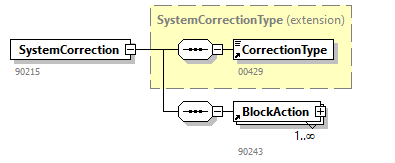

SystemCorrection
TagName
Trusteeship
TypeForm
UnrelatedEmployerClass
UnrelatedWorkerCode

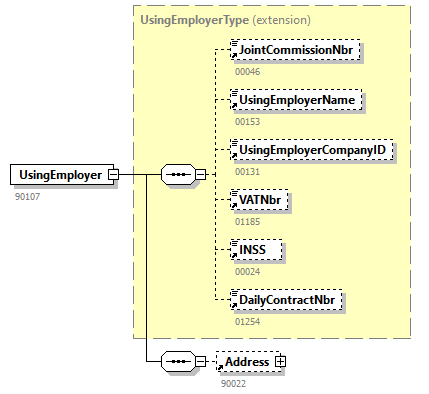

UsingEmployer
UsingEmployerCompanyID
UsingEmployerName
ValidityPeriodEndingDate
ValidityPeriodStartingDate
Value
VATNbr
WorkerBirthdate
WorkerBirthplace
WorkerBirthplaceCountry
WorkerCity
WorkerCode
WorkerCountry
WorkerFirstName
WorkerHouseNbr
WorkerInitial
WorkerName
WorkerPostBox

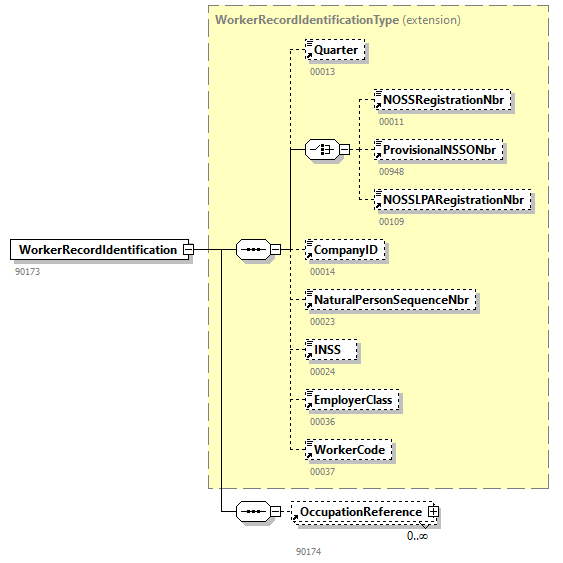

WorkerRecordIdentification
WorkerRecordUserReference
WorkerSex
WorkerStatus
WorkerStreet
WorkerType
WorkerZIPCode
WorksContractActorId
WorksContractId
ZIPCode

element Action

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  BlockActionType
facets	Kind  Value  Annotation totalDigits  1 enumeration  0 enumeration  1 enumeration  2 enumeration  9
annotation	documentation 00411
source	<xs:element name="Action">   <xs:annotation>     <xs:documentation>00411</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ActivityCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00228
source	<xs:element name="ActivityCode">   <xs:annotation>     <xs:documentation>00228</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ActivityWithRisk

diagram
type	restriction of xs:integer
properties	content  simple

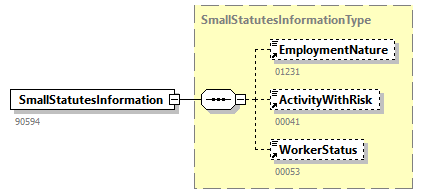

used by	complexType  SmallStatutesInformationType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999 totalDigits  3
annotation	documentation 00041
source	<xs:element name="ActivityWithRisk">   <xs:annotation>     <xs:documentation>00041</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryReference

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999999999999 totalDigits  12
annotation	documentation 00977
source	<xs:element name="AdditionalScaleSalaryReference">   <xs:annotation>     <xs:documentation>00977</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="999999999999"/>       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalarySequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 01001
source	<xs:element name="AdditionalScaleSalarySequenceNbr">   <xs:annotation>     <xs:documentation>01001</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryStartDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00978
source	<xs:element name="AdditionalScaleSalaryStartDate">   <xs:annotation>     <xs:documentation>00978</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

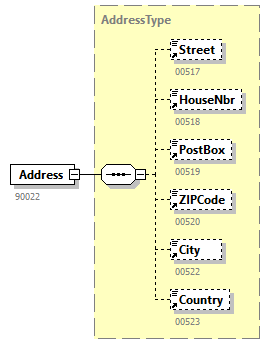

element Address

diagram
type	AddressType
properties	content  complex
children	StreetHouseNbrPostBoxZIPCodeCityCountry
used by	elements  AVWDDTImpactReportStudentPlaceOfWorkUsingEmployer
annotation	documentation 90022
source	<xs:element name="Address" type="AddressType">   <xs:annotation>     <xs:documentation>90022</xs:documentation>   </xs:annotation> </xs:element>

element AnomalyClass

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AnomalyReportTypeDetailReturnCodeTypeDimonaPeriodType
facets	Kind  Value  Annotation maxLength  2
annotation	documentation 00497
source	<xs:element name="AnomalyClass">   <xs:annotation>     <xs:documentation>00497</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

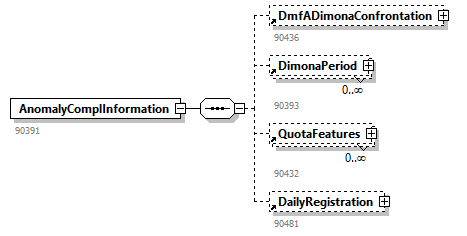

element AnomalyComplInformation

diagram
type	extension of AnomalyComplInformationType
properties	content  complex
children	DmfADimonaConfrontationDimonaPeriodQuotaFeaturesDailyRegistration
used by	element  AnomalyReport
annotation	documentation 90391
source	<xs:element name="AnomalyComplInformation">   <xs:annotation>     <xs:documentation>90391</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="AnomalyComplInformationType">         <xs:sequence>           <xs:element ref="DmfADimonaConfrontation" minOccurs="0"/>           <xs:element ref="DimonaPeriod" minOccurs="0" maxOccurs="unbounded"/>           <xs:element ref="QuotaFeatures" minOccurs="0" maxOccurs="unbounded"/>           <xs:element ref="DailyRegistration" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element AnomalyLabel

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  AnomalyReportType
facets	Kind  Value  Annotation maxLength  500
annotation	documentation 00628
source	<xs:element name="AnomalyLabel">   <xs:annotation>     <xs:documentation>00628</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="500"/>     </xs:restriction>   </xs:simpleType> </xs:element>

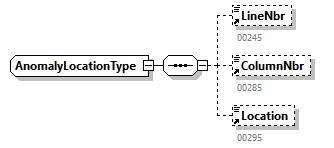

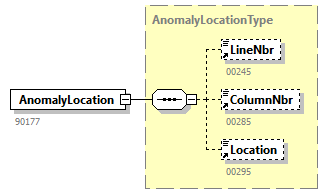

element AnomalyLocation

diagram
type	AnomalyLocationType
properties	content  complex
children	LineNbrColumnNbrLocation
used by	element  AnomalyReport
annotation	documentation 90177
source	<xs:element name="AnomalyLocation" type="AnomalyLocationType">   <xs:annotation>     <xs:documentation>90177</xs:documentation>   </xs:annotation> </xs:element>

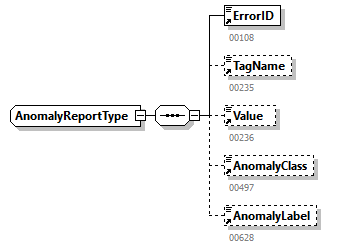

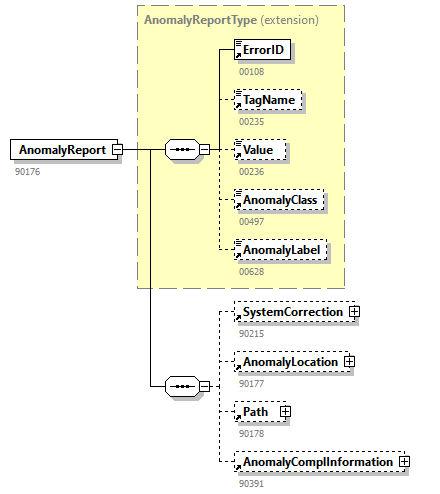

element AnomalyReport

diagram
type	extension of AnomalyReportType
properties	content  complex
children	ErrorIDTagNameValueAnomalyClassAnomalyLabelSystemCorrectionAnomalyLocationPathAnomalyComplInformation
used by	element  HandlingResult
annotation	documentation 90176
source	<xs:element name="AnomalyReport">   <xs:annotation>     <xs:documentation>90176</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="AnomalyReportType">         <xs:sequence>           <xs:element ref="SystemCorrection" minOccurs="0"/>           <xs:element ref="AnomalyLocation" minOccurs="0"/>           <xs:element ref="Path" minOccurs="0"/>           <xs:element ref="AnomalyComplInformation" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ApplicationData

diagram
properties	content  complex
used by	element  Form
annotation	documentation 90410
source	<xs:element name="ApplicationData">   <xs:annotation>     <xs:documentation>90410</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:any namespace="##any" processContents="skip"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AssignmentType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00967
source	<xs:element name="AssignmentType">   <xs:annotation>     <xs:documentation>00967</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AttestationStatus

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  DailyRegistrationDclImpactReportTypeFormTypeHandledOriginalFormType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  8 totalDigits  1
annotation	documentation 00110
source	<xs:element name="AttestationStatus">   <xs:annotation>     <xs:documentation>00110</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="8"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AVWDDTId

diagram
type	restriction of xs:string
properties	content  simple

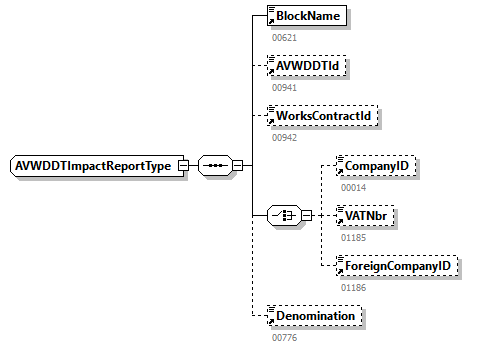

used by	complexType  AVWDDTImpactReportType
facets	Kind  Value  Annotation maxLength  13
annotation	documentation 00941
source	<xs:element name="AVWDDTId">   <xs:annotation>     <xs:documentation>00941</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="13"/>     </xs:restriction>   </xs:simpleType> </xs:element>

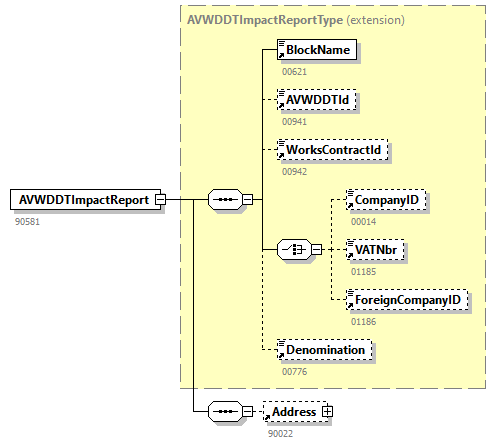

element AVWDDTImpactReport

diagram
type	extension of AVWDDTImpactReportType
properties	content  complex
children	BlockNameAVWDDTIdWorksContractIdCompanyIDVATNbrForeignCompanyIDDenominationAddress
used by	element  ImpactReport
annotation	documentation 90581
source	<xs:element name="AVWDDTImpactReport">   <xs:annotation>     <xs:documentation>90581</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="AVWDDTImpactReportType">         <xs:sequence>           <xs:element ref="Address" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

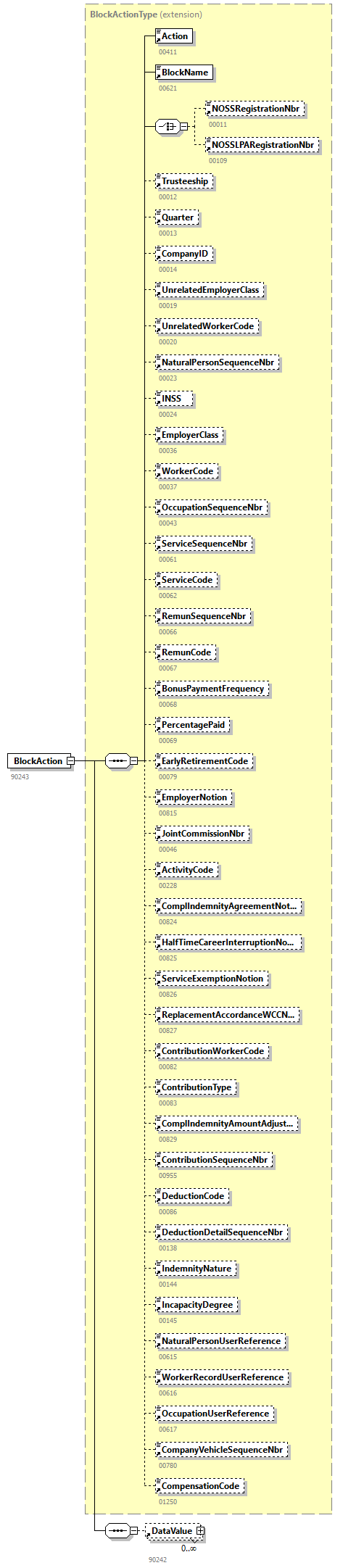

element BlockAction

diagram
type	extension of BlockActionType
properties	content  complex
children	ActionBlockNameNOSSRegistrationNbrNOSSLPARegistrationNbrTrusteeshipQuarterCompanyIDUnrelatedEmployerClassUnrelatedWorkerCodeNaturalPersonSequenceNbrINSSEmployerClassWorkerCodeOccupationSequenceNbrServiceSequenceNbrServiceCodeRemunSequenceNbrRemunCodeBonusPaymentFrequencyPercentagePaidEarlyRetirementCodeEmployerNotionJointCommissionNbrActivityCodeComplIndemnityAgreementNotionHalfTimeCareerInterruptionNotionServiceExemptionNotionReplacementAccordanceWCCNotionContributionWorkerCodeContributionTypeComplIndemnityAmountAdjustNotionContributionSequenceNbrDeductionCodeDeductionDetailSequenceNbrIndemnityNatureIncapacityDegreeNaturalPersonUserReferenceWorkerRecordUserReferenceOccupationUserReferenceCompanyVehicleSequenceNbrCompensationCodeDataValue
used by	element  SystemCorrection
annotation	documentation 90243
source	<xs:element name="BlockAction">   <xs:annotation>     <xs:documentation>90243</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="BlockActionType">         <xs:sequence>           <xs:element ref="DataValue" minOccurs="0" maxOccurs="unbounded"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element BlockName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AVWDDTImpactReportTypeBlockActionType
facets	Kind  Value  Annotation maxLength  50
annotation	documentation 00621
source	<xs:element name="BlockName">   <xs:annotation>     <xs:documentation>00621</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BonusPaymentFrequency

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99 totalDigits  2
annotation	documentation 00068
source	<xs:element name="BonusPaymentFrequency">   <xs:annotation>     <xs:documentation>00068</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CalendarYear

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1900 maxInclusive  9999 totalDigits  4
annotation	documentation 01004
source	<xs:element name="CalendarYear">   <xs:annotation>     <xs:documentation>01004</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1900"/>       <xs:maxInclusive value="9999"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CapeloImpactReport

diagram
type	CapeloImpactReportType
properties	content  complex
children	ResultCodeDiagnosis
used by	element  ImpactReport
annotation	documentation 90491
source	<xs:element name="CapeloImpactReport" type="CapeloImpactReportType">   <xs:annotation>     <xs:documentation>90491</xs:documentation>   </xs:annotation> </xs:element>

element CareerElementSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999 totalDigits  4
annotation	documentation 00993
source	<xs:element name="CareerElementSequenceNbr">   <xs:annotation>     <xs:documentation>00993</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="9999"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CBSSInformation

diagram
type	extension of CBSSInformationType
properties	content  complex
children	KindOfTreatmentInternalRefCBSSInvolvedPartnerHandledCBSSInformation
used by	element  Form
annotation	documentation 90320
source	<xs:element name="CBSSInformation">   <xs:annotation>     <xs:documentation>90320</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CBSSInformationType">         <xs:sequence>           <xs:element ref="InvolvedPartner" maxOccurs="3"/>           <xs:element ref="HandledCBSSInformation" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element Channel

diagram
type	restriction of xs:integer
properties	content  simple

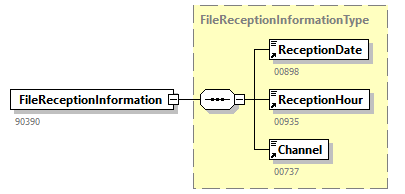

used by	complexType  FileReceptionInformationType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17 totalDigits  2
annotation	documentation 00737
source	<xs:element name="Channel">   <xs:annotation>     <xs:documentation>00737</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element City

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  AddressType
facets	Kind  Value  Annotation maxLength  40
annotation	documentation 00522
source	<xs:element name="City">   <xs:annotation>     <xs:documentation>00522</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="40"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ColumnNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AnomalyLocationType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999999999999999 totalDigits  15
annotation	documentation 00285
source	<xs:element name="ColumnNbr">   <xs:annotation>     <xs:documentation>00285</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="999999999999999"/>       <xs:totalDigits value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

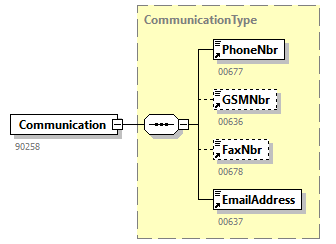

element Communication

diagram
type	CommunicationType
properties	content  complex
children	PhoneNbrGSMNbrFaxNbrEmailAddress
used by	element  CoordinatesContactPerson
annotation	documentation 90258
source	<xs:element name="Communication" type="CommunicationType">   <xs:annotation>     <xs:documentation>90258</xs:documentation>   </xs:annotation> </xs:element>

element CompanyID

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  AVWDDTImpactReportTypeBlockActionTypeEmployerIdTypeHandledSenderIdentificationTypePathTypeWorkerRecordIdentificationType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1999999943 totalDigits  10 pattern  0|\d{9}|\d{10}
annotation	documentation 00014 appinfo CompanyID_conversion1 appinfo xs:companyId
source	<xs:element name="CompanyID">   <xs:annotation>     <xs:documentation>00014</xs:documentation>     <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1999999943"/>       <xs:totalDigits value="10"/>       <xs:pattern value="0|\d{9}|\d{10}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompanyVehicleSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999 totalDigits  5
annotation	documentation 00780
source	<xs:element name="CompanyVehicleSequenceNbr">   <xs:annotation>     <xs:documentation>00780</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CompensationCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation totalDigits  2 enumeration  01 enumeration  02
annotation	documentation 01250
source	<xs:element name="CompensationCode">   <xs:annotation>     <xs:documentation>01250</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="01"/>       <xs:enumeration value="02"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ComplIndemnityAgreementNotion

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00824
source	<xs:element name="ComplIndemnityAgreementNotion">   <xs:annotation>     <xs:documentation>00824</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ComplIndemnityAmountAdjustNotion

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation totalDigits  1 enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  9
annotation	documentation 00829
source	<xs:element name="ComplIndemnityAmountAdjustNotion">   <xs:annotation>     <xs:documentation>00829</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ConcernedQuarter

diagram
type	ConcernedQuarterType
properties	content  complex
children	Quarter
used by	element  Form
annotation	documentation 90293
source	<xs:element name="ConcernedQuarter" type="ConcernedQuarterType">   <xs:annotation>     <xs:documentation>90293</xs:documentation>   </xs:annotation> </xs:element>

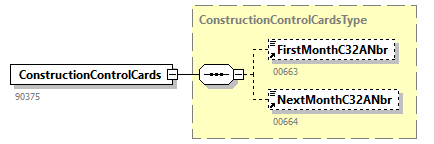

element ConstructionControlCards

diagram
type	ConstructionControlCardsType
properties	content  complex
children	FirstMonthC32ANbrNextMonthC32ANbr
used by	elements  DimonaImpactReportDimonaPeriod
annotation	documentation 90375
source	<xs:element name="ConstructionControlCards" type="ConstructionControlCardsType">   <xs:annotation>     <xs:documentation>90375</xs:documentation>   </xs:annotation> </xs:element>

element ContributionSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999 totalDigits  3
annotation	documentation 00955
source	<xs:element name="ContributionSequenceNbr">   <xs:annotation>     <xs:documentation>00955</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ContributionType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9 totalDigits  1
annotation	documentation 00083
source	<xs:element name="ContributionType">   <xs:annotation>     <xs:documentation>00083</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ContributionWorkerCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  000 maxInclusive  999 totalDigits  3 pattern  \d{3}
annotation	documentation 00082
source	<xs:element name="ContributionWorkerCode">   <xs:annotation>     <xs:documentation>00082</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="000"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>       <xs:pattern value="\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CoordinatesContactPerson

diagram
type	extension of CoordinatesContactPersonType
properties	content  complex
children	NameFirstNameCommunication
used by	element  Form
annotation	documentation 90257
source	<xs:element name="CoordinatesContactPerson">   <xs:annotation>     <xs:documentation>90257</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CoordinatesContactPersonType">         <xs:sequence>           <xs:element ref="Communication" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element CorrectionType

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  SystemCorrectionType
facets	Kind  Value  Annotation length  2 enumeration  RC enumeration  UC
annotation	documentation 00429
source	<xs:element name="CorrectionType">   <xs:annotation>     <xs:documentation>00429</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:length value="2"/>       <xs:enumeration value="RC"/>       <xs:enumeration value="UC"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Country

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AddressType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999 totalDigits  5
annotation	documentation 00523
source	<xs:element name="Country">   <xs:annotation>     <xs:documentation>00523</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CUNPCalculatedAmount

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation maxLength  16 pattern  [+-]?\d{1,15}
annotation	documentation 00902
source	<xs:element name="CUNPCalculatedAmount">   <xs:annotation>     <xs:documentation>00902</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="16"/>       <xs:pattern value="[+-]?\d{1,15}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DailyContractNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  UsingEmployerType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999 totalDigits  3
annotation	documentation 01254
source	<xs:element name="DailyContractNbr">   <xs:annotation>     <xs:documentation>01254</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

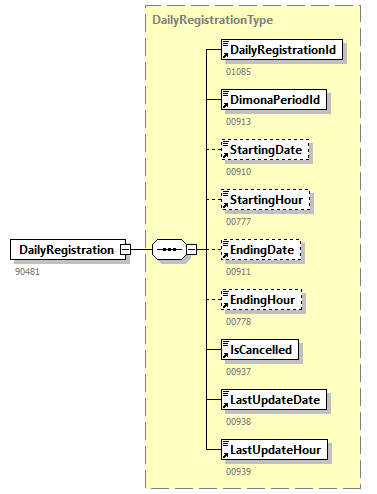

element DailyRegistration

diagram
type	DailyRegistrationType
properties	content  complex
children	DailyRegistrationIdDimonaPeriodIdStartingDateStartingHourEndingDateEndingHourIsCancelledLastUpdateDateLastUpdateHour
used by	element  AnomalyComplInformation
annotation	documentation 90481
source	<xs:element name="DailyRegistration" type="DailyRegistrationType">   <xs:annotation>     <xs:documentation>90481</xs:documentation>   </xs:annotation> </xs:element>

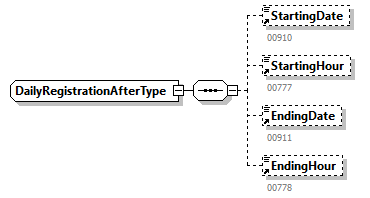

element DailyRegistrationAfter

diagram
type	DailyRegistrationAfterType
properties	content  complex
children	StartingDateStartingHourEndingDateEndingHour
used by	element  DailyRegistrationDclImpactReport
annotation	documentation 90484
source	<xs:element name="DailyRegistrationAfter" type="DailyRegistrationAfterType">   <xs:annotation>     <xs:documentation>90484</xs:documentation>   </xs:annotation> </xs:element>

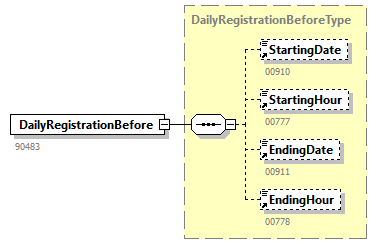

element DailyRegistrationBefore

diagram
type	DailyRegistrationBeforeType
properties	content  complex
children	StartingDateStartingHourEndingDateEndingHour
used by	element  DailyRegistrationDclImpactReport
annotation	documentation 90483
source	<xs:element name="DailyRegistrationBefore" type="DailyRegistrationBeforeType">   <xs:annotation>     <xs:documentation>90483</xs:documentation>   </xs:annotation> </xs:element>

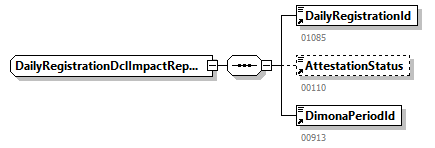

element DailyRegistrationDclImpactReport

diagram
type	extension of DailyRegistrationDclImpactReportType
properties	content  complex
children	DailyRegistrationIdAttestationStatusDimonaPeriodIdDailyRegistrationBeforeDailyRegistrationAfter
used by	element  ImpactReport
annotation	documentation 90482
source	<xs:element name="DailyRegistrationDclImpactReport">   <xs:annotation>     <xs:documentation>90482</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="DailyRegistrationDclImpactReportType">         <xs:sequence>           <xs:element ref="DailyRegistrationBefore" minOccurs="0"/>           <xs:element ref="DailyRegistrationAfter" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element DailyRegistrationId

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  DailyRegistrationDclImpactReportTypeDailyRegistrationType
facets	Kind  Value  Annotation totalDigits  12
annotation	documentation 01085
source	<xs:element name="DailyRegistrationId">   <xs:annotation>     <xs:documentation>01085</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DataValue

diagram
type	DataValueType
properties	content  complex
children	FieldNameNewValue
used by	element  BlockAction
annotation	documentation 90242
source	<xs:element name="DataValue" type="DataValueType">   <xs:annotation>     <xs:documentation>90242</xs:documentation>   </xs:annotation> </xs:element>

element DateSubmission

diagram
type	restriction of xs:date
properties	content  simple

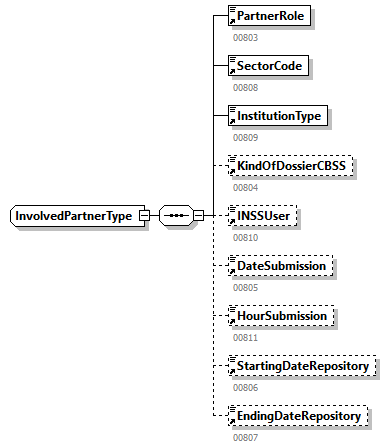

used by	complexType  InvolvedPartnerType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00805
source	<xs:element name="DateSubmission">   <xs:annotation>     <xs:documentation>00805</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DeclarationComplInformations

diagram
type	DeclarationComplInformationsType
properties	content  complex
children	DMFAWorkersNbrDIMONAWorkersNbr
used by	element  Form
annotation	documentation 90341
source	<xs:element name="DeclarationComplInformations" type="DeclarationComplInformationsType">   <xs:annotation>     <xs:documentation>90341</xs:documentation>   </xs:annotation> </xs:element>

element DeductionCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9999 totalDigits  4
annotation	documentation 00086
source	<xs:element name="DeductionCode">   <xs:annotation>     <xs:documentation>00086</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9999"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DeductionDetailSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 00138
source	<xs:element name="DeductionDetailSequenceNbr">   <xs:annotation>     <xs:documentation>00138</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Denomination

diagram
type	restriction of xs:string
properties	content  simple

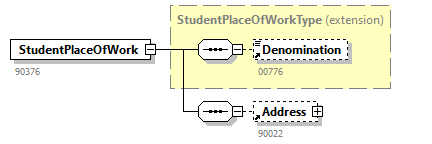

used by	complexTypes  AVWDDTImpactReportTypeStudentPlaceOfWorkType
facets	Kind  Value  Annotation maxLength  96
annotation	documentation 00776
source	<xs:element name="Denomination">   <xs:annotation>     <xs:documentation>00776</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="96"/>     </xs:restriction>   </xs:simpleType> </xs:element>

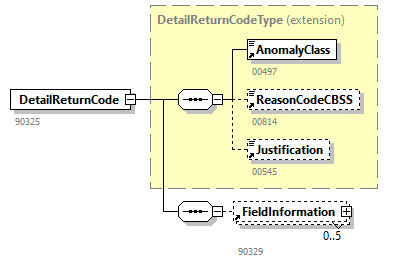

element DetailReturnCode

diagram
type	extension of DetailReturnCodeType
properties	content  complex
children	AnomalyClassReasonCodeCBSSJustificationFieldInformation
used by	element  HandledCBSSInformation
annotation	documentation 90325
source	<xs:element name="DetailReturnCode">   <xs:annotation>     <xs:documentation>90325</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="DetailReturnCodeType">         <xs:sequence>           <xs:element ref="FieldInformation" minOccurs="0" maxOccurs="5"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element Diagnosis

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  CapeloImpactReportTypeHandlingResultType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9 totalDigits  1
annotation	documentation 00232
source	<xs:element name="Diagnosis">   <xs:annotation>     <xs:documentation>00232</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DimonaFeatures

diagram
type	extension of DimonaFeaturesType
properties	content  complex
children	JointCommissionNbrWorkerTypeSubEntityNbrUsingEmployer
used by	elements  DimonaImpactReportDimonaPeriod
annotation	documentation 90374
source	<xs:element name="DimonaFeatures">   <xs:annotation>     <xs:documentation>90374</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="DimonaFeaturesType">         <xs:sequence>           <xs:element ref="UsingEmployer" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

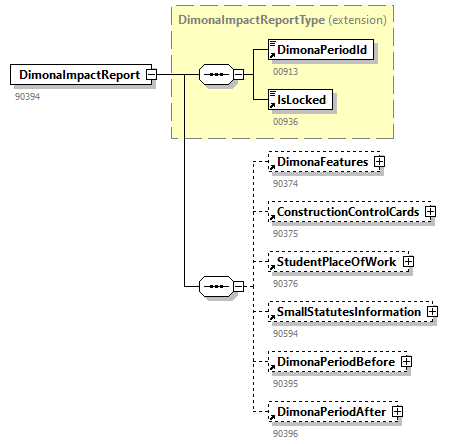

element DimonaImpactReport

diagram
type	extension of DimonaImpactReportType
properties	content  complex
children	DimonaPeriodIdIsLockedDimonaFeaturesConstructionControlCardsStudentPlaceOfWorkSmallStatutesInformationDimonaPeriodBeforeDimonaPeriodAfter
used by	element  ImpactReport
annotation	documentation 90394
source	<xs:element name="DimonaImpactReport">   <xs:annotation>     <xs:documentation>90394</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="DimonaImpactReportType">         <xs:sequence>           <xs:element ref="DimonaFeatures" minOccurs="0"/>           <xs:element ref="ConstructionControlCards" minOccurs="0"/>           <xs:element ref="StudentPlaceOfWork" minOccurs="0"/>           <xs:element ref="SmallStatutesInformation" minOccurs="0"/>           <xs:element ref="DimonaPeriodBefore" minOccurs="0"/>           <xs:element ref="DimonaPeriodAfter" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

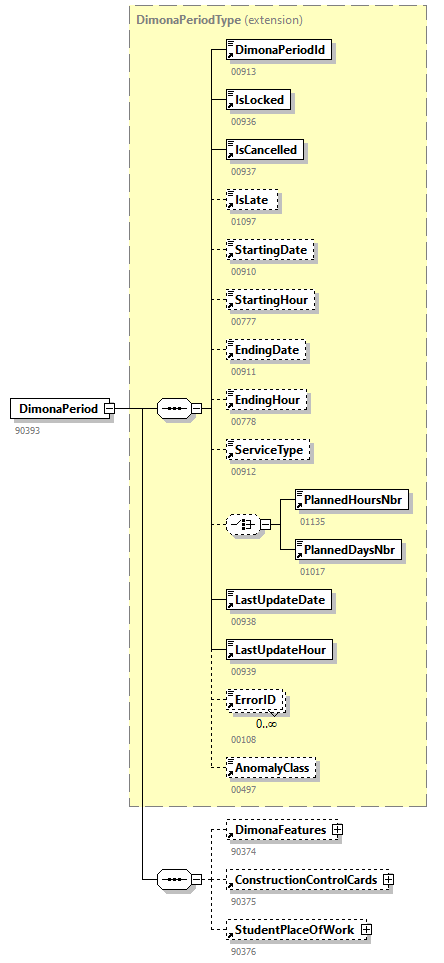

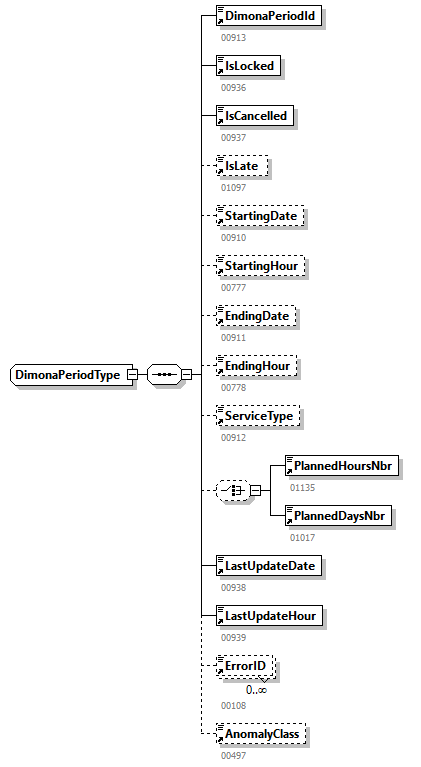

element DimonaPeriod

diagram
type	extension of DimonaPeriodType
properties	content  complex
children	DimonaPeriodIdIsLockedIsCancelledIsLateStartingDateStartingHourEndingDateEndingHourServiceTypePlannedHoursNbrPlannedDaysNbrLastUpdateDateLastUpdateHourErrorIDAnomalyClassDimonaFeaturesConstructionControlCardsStudentPlaceOfWork
used by	element  AnomalyComplInformation
annotation	documentation 90393
source	<xs:element name="DimonaPeriod">   <xs:annotation>     <xs:documentation>90393</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="DimonaPeriodType">         <xs:sequence>           <xs:element ref="DimonaFeatures" minOccurs="0"/>           <xs:element ref="ConstructionControlCards" minOccurs="0"/>           <xs:element ref="StudentPlaceOfWork" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element DimonaPeriodAfter

diagram
type	DimonaPeriodAfterType
properties	content  complex
children	StartingDateStartingHourEndingDateEndingHourServiceTypePlannedHoursNbrPlannedDaysNbr
used by	element  DimonaImpactReport
annotation	documentation 90396
source	<xs:element name="DimonaPeriodAfter" type="DimonaPeriodAfterType">   <xs:annotation>     <xs:documentation>90396</xs:documentation>   </xs:annotation> </xs:element>

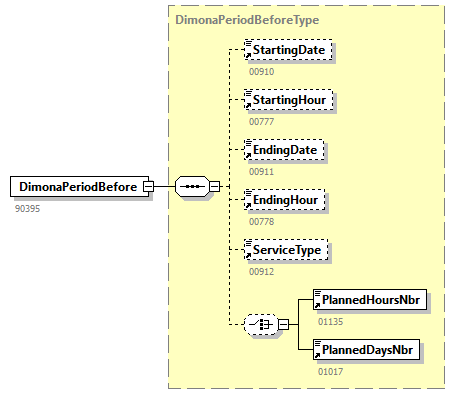

element DimonaPeriodBefore

diagram
type	DimonaPeriodBeforeType
properties	content  complex
children	StartingDateStartingHourEndingDateEndingHourServiceTypePlannedHoursNbrPlannedDaysNbr
used by	element  DimonaImpactReport
annotation	documentation 90395
source	<xs:element name="DimonaPeriodBefore" type="DimonaPeriodBeforeType">   <xs:annotation>     <xs:documentation>90395</xs:documentation>   </xs:annotation> </xs:element>

element DimonaPeriodId

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  DailyRegistrationDclImpactReportTypeDailyRegistrationTypeDimonaImpactReportTypeDimonaPeriodType
facets	Kind  Value  Annotation totalDigits  12
annotation	documentation 00913
source	<xs:element name="DimonaPeriodId">   <xs:annotation>     <xs:documentation>00913</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DIMONAWorkersNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  DeclarationComplInformationsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9999999 totalDigits  7
annotation	documentation 00841
source	<xs:element name="DIMONAWorkersNbr">   <xs:annotation>     <xs:documentation>00841</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9999999"/>       <xs:totalDigits value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

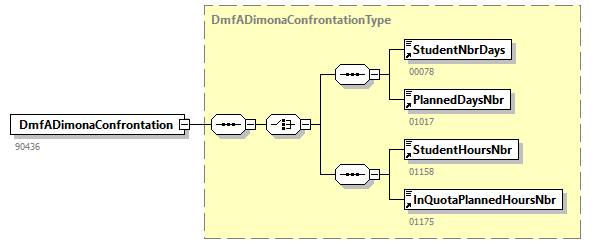

element DmfADimonaConfrontation

diagram
type	DmfADimonaConfrontationType
properties	content  complex
children	StudentNbrDaysPlannedDaysNbrStudentHoursNbrInQuotaPlannedHoursNbr
used by	element  AnomalyComplInformation
annotation	documentation 90436
source	<xs:element name="DmfADimonaConfrontation" type="DmfADimonaConfrontationType">   <xs:annotation>     <xs:documentation>90436</xs:documentation>   </xs:annotation> </xs:element>

element DMFAWorkersNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  DeclarationComplInformationsType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  9999999 totalDigits  7
annotation	documentation 00840
source	<xs:element name="DMFAWorkersNbr">   <xs:annotation>     <xs:documentation>00840</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="9999999"/>       <xs:totalDigits value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EarlyRetirementCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00079
source	<xs:element name="EarlyRetirementCode">   <xs:annotation>     <xs:documentation>00079</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmailAddress

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  60
annotation	documentation 00637
source	<xs:element name="EmailAddress">   <xs:annotation>     <xs:documentation>00637</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="60"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerClass

diagram
type	restriction of xs:integer
properties	content  simple

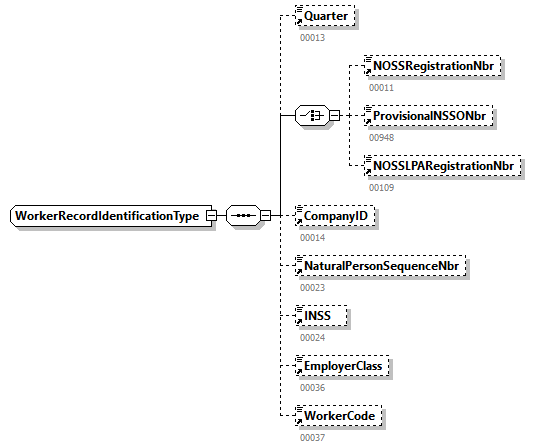

used by	complexTypes  BlockActionTypePathTypeWorkerRecordIdentificationType
facets	Kind  Value  Annotation minInclusive  000 maxInclusive  999 totalDigits  3 pattern  \d{3}
annotation	documentation 00036
source	<xs:element name="EmployerClass">   <xs:annotation>     <xs:documentation>00036</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="000"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>       <xs:pattern value="\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

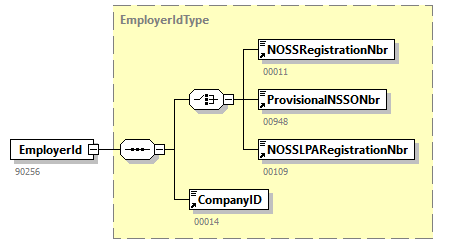

element EmployerId

diagram
type	EmployerIdType
properties	content  complex
children	NOSSRegistrationNbrProvisionalNSSONbrNOSSLPARegistrationNbrCompanyID
used by	element  Form
annotation	documentation 90256
source	<xs:element name="EmployerId" type="EmployerIdType">   <xs:annotation>     <xs:documentation>90256</xs:documentation>   </xs:annotation> </xs:element>

element EmployerNotion

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation totalDigits  11 pattern  0|00\d{9}|1\d{10}
annotation	documentation 00815
source	<xs:element name="EmployerNotion">   <xs:annotation>     <xs:documentation>00815</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="11"/>       <xs:pattern value="0|00\d{9}|1\d{10}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 01006
source	<xs:element name="EmployerSequenceNbr">   <xs:annotation>     <xs:documentation>01006</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmploymentNature

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  SmallStatutesInformationType
facets	Kind  Value  Annotation maxLength  8 enumeration  EMPLOYEE enumeration  WORKER
annotation	documentation 01231
source	<xs:element name="EmploymentNature">   <xs:annotation>     <xs:documentation>01231</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="8"/>       <xs:enumeration value="EMPLOYEE"/>       <xs:enumeration value="WORKER"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EndingDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexTypes  DailyRegistrationAfterTypeDailyRegistrationBeforeTypeDailyRegistrationTypeDimonaPeriodAfterTypeDimonaPeriodBeforeTypeDimonaPeriodType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00911
source	<xs:element name="EndingDate">   <xs:annotation>     <xs:documentation>00911</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EndingDateRepository

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  InvolvedPartnerType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00807
source	<xs:element name="EndingDateRepository">   <xs:annotation>     <xs:documentation>00807</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EndingHour

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  DailyRegistrationAfterTypeDailyRegistrationBeforeTypeDailyRegistrationTypeDimonaPeriodAfterTypeDimonaPeriodBeforeTypeDimonaPeriodType
facets	Kind  Value  Annotation totalDigits  4 pattern  (((0|1)\d)|(2[0-3]))[0-5]\d
annotation	documentation 00778
source	<xs:element name="EndingHour">   <xs:annotation>     <xs:documentation>00778</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="4"/>       <xs:pattern value="(((0|1)\d)|(2[0-3]))[0-5]\d"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ErrorID

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  AnomalyReportTypeDimonaPeriodType
facets	Kind  Value  Annotation maxLength  9
annotation	documentation 00108
source	<xs:element name="ErrorID">   <xs:annotation>     <xs:documentation>00108</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ExceedingDaysNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  QuotaFeaturesType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999 totalDigits  3
annotation	documentation 01019
source	<xs:element name="ExceedingDaysNbr">   <xs:annotation>     <xs:documentation>01019</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ExceedingHoursNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  QuotaFeaturesType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999 totalDigits  3
annotation	documentation 01134
source	<xs:element name="ExceedingHoursNbr">   <xs:annotation>     <xs:documentation>01134</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FaxNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00678
source	<xs:element name="FaxNbr">   <xs:annotation>     <xs:documentation>00678</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FieldInformation

diagram
type	FieldInformationType
properties	content  complex
children	FieldNameValue
used by	element  DetailReturnCode
annotation	documentation 90329
source	<xs:element name="FieldInformation" type="FieldInformationType">   <xs:annotation>     <xs:documentation>90329</xs:documentation>   </xs:annotation> </xs:element>

element FieldName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  DataValueTypeFieldInformationType
facets	Kind  Value  Annotation maxLength  200
annotation	documentation 00622
source	<xs:element name="FieldName">   <xs:annotation>     <xs:documentation>00622</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="200"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FileName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  FileReferenceType
facets	Kind  Value  Annotation minLength  1 maxLength  64
annotation	documentation 00106
source	<xs:element name="FileName">   <xs:annotation>     <xs:documentation>00106</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="64"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FileReceptionInformation

diagram
type	FileReceptionInformationType
properties	content  complex
children	ReceptionDateReceptionHourChannel
used by	element  Form
annotation	documentation 90390
source	<xs:element name="FileReceptionInformation" type="FileReceptionInformationType">   <xs:annotation>     <xs:documentation>90390</xs:documentation>   </xs:annotation> </xs:element>

element FileReference

diagram
type	FileReferenceType
properties	content  complex
children	FileNameReferenceOriginReferenceNbr
used by	element  Form
annotation	documentation 90102
source	<xs:element name="FileReference" type="FileReferenceType">   <xs:annotation>     <xs:documentation>90102</xs:documentation>   </xs:annotation> </xs:element>

element FinancialElementCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation totalDigits  10 enumeration  0001001000 enumeration  0002001000
annotation	documentation 01284
source	<xs:element name="FinancialElementCode">   <xs:annotation>     <xs:documentation>01284</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="10"/>       <xs:enumeration value="0001001000"/>       <xs:enumeration value="0002001000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FinancialElementType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation totalDigits  2 enumeration  1
annotation	documentation 01283
source	<xs:element name="FinancialElementType">   <xs:annotation>     <xs:documentation>01283</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FirstMonthC32ANbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ConstructionControlCardsType
facets	Kind  Value  Annotation totalDigits  12
annotation	documentation 00663
source	<xs:element name="FirstMonthC32ANbr">   <xs:annotation>     <xs:documentation>00663</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FirstName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CoordinatesContactPersonType
facets	Kind  Value  Annotation maxLength  24
annotation	documentation 00727
source	<xs:element name="FirstName">   <xs:annotation>     <xs:documentation>00727</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="24"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ForeignCompanyID

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  AVWDDTImpactReportType
facets	Kind  Value  Annotation maxLength  256
annotation	documentation 01186
source	<xs:element name="ForeignCompanyID">   <xs:annotation>     <xs:documentation>01186</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="256"/>     </xs:restriction>   </xs:simpleType> </xs:element>

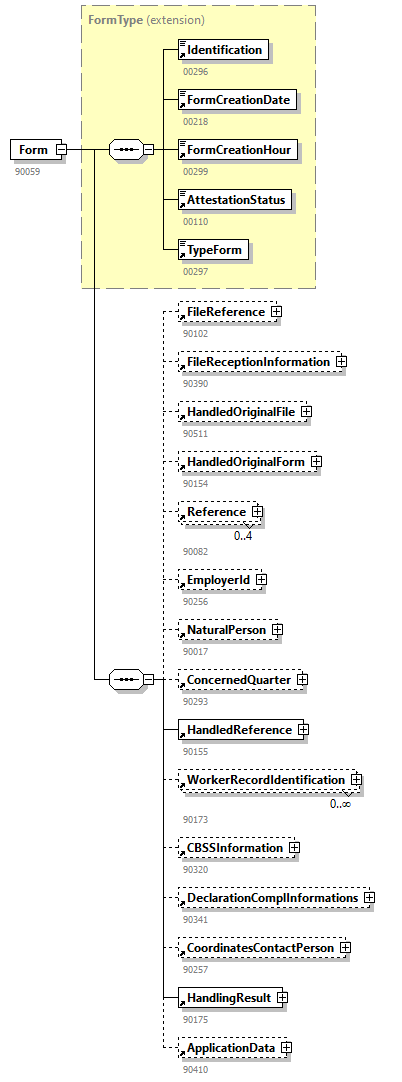

element Form

diagram
type	extension of FormType
properties	content  complex
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormFileReferenceFileReceptionInformationHandledOriginalFileHandledOriginalFormReferenceEmployerIdNaturalPersonConcernedQuarterHandledReferenceWorkerRecordIdentificationCBSSInformationDeclarationComplInformationsCoordinatesContactPersonHandlingResultApplicationData
used by	element  NOTIFICATION
annotation	documentation 90059
source	<xs:element name="Form">   <xs:annotation>     <xs:documentation>90059</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="FormType">         <xs:sequence>           <xs:element ref="FileReference" minOccurs="0"/>           <xs:element ref="FileReceptionInformation" minOccurs="0"/>           <xs:element ref="HandledOriginalFile" minOccurs="0"/>           <xs:element ref="HandledOriginalForm" minOccurs="0"/>           <xs:element ref="Reference" minOccurs="0" maxOccurs="4"/>           <xs:element ref="EmployerId" minOccurs="0"/>           <xs:element ref="NaturalPerson" minOccurs="0"/>           <xs:element ref="ConcernedQuarter" minOccurs="0"/>           <xs:element ref="HandledReference"/>           <xs:element ref="WorkerRecordIdentification" minOccurs="0" maxOccurs="unbounded"/>           <xs:element ref="CBSSInformation" minOccurs="0"/>           <xs:element ref="DeclarationComplInformations" minOccurs="0"/>           <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>           <xs:element ref="HandlingResult"/>           <xs:element ref="ApplicationData" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element FormCreationDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00218 appinfo Date_conversion1
source	<xs:element name="FormCreationDate">   <xs:annotation>     <xs:documentation>00218</xs:documentation>     <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FormCreationHour

diagram
type	restriction of xs:time
properties	content  simple
used by	complexTypes  FormTypeHandledOriginalFormType
facets	Kind  Value  Annotation pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation	documentation 00299 appinfo Time_conversion1
source	<xs:element name="FormCreationHour">   <xs:annotation>     <xs:documentation>00299</xs:documentation>     <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:time">       <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FunctionNature

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  PathType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00968
source	<xs:element name="FunctionNature">   <xs:annotation>     <xs:documentation>00968</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GSMNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00636
source	<xs:element name="GSMNbr">   <xs:annotation>     <xs:documentation>00636</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HalfTimeCareerInterruptionNotion

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  BlockActionTypePathType
facets	Kind  Value  Annotation maxLength  1 enumeration  0 enumeration  1 enumeration  9
annotation	documentation 00825
source	<xs:element name="HalfTimeCareerInterruptionNotion">   <xs:annotation>     <xs:documentation>00825</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="1"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HandledCBSSInformation

diagram
type	extension of HandledCBSSInformationType
properties	content  complex
children	ResultCodeDetailReturnCode
used by	element  CBSSInformation
annotation	documentation 90324
source	<xs:element name="HandledCBSSInformation">   <xs:annotation>     <xs:documentation>90324</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="HandledCBSSInformationType">         <xs:sequence>           <xs:element ref="DetailReturnCode" minOccurs="0" maxOccurs="5"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element HandledOriginalFile

diagram
type	extension of HandledOriginalFileType
properties	content  complex
children	SenderIdHandledSenderIdentification
used by	element  Form
annotation	documentation 90511
source	<xs:element name="HandledOriginalFile">   <xs:annotation>     <xs:documentation>90511</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="HandledOriginalFileType">         <xs:sequence>           <xs:element ref="HandledSenderIdentification" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

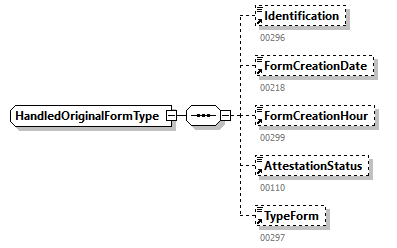

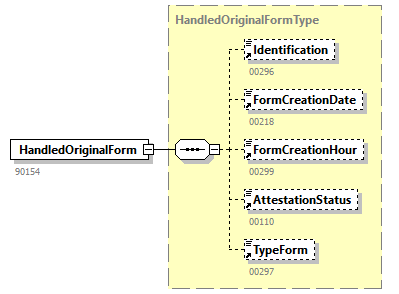

element HandledOriginalForm

diagram
type	HandledOriginalFormType
properties	content  complex
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by	element  Form
annotation	documentation 90154
source	<xs:element name="HandledOriginalForm" type="HandledOriginalFormType">   <xs:annotation>     <xs:documentation>90154</xs:documentation>   </xs:annotation> </xs:element>

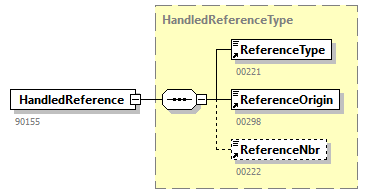

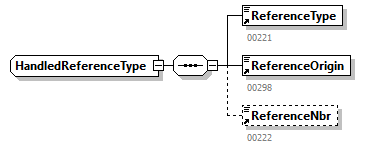

element HandledReference

diagram
type	HandledReferenceType
properties	content  complex
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  Form
annotation	documentation 90155
source	<xs:element name="HandledReference" type="HandledReferenceType">   <xs:annotation>     <xs:documentation>90155</xs:documentation>   </xs:annotation> </xs:element>

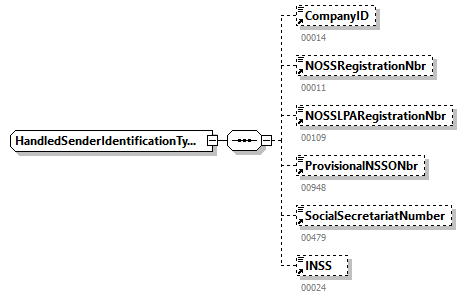

element HandledSenderIdentification

diagram
type	HandledSenderIdentificationType
properties	content  complex
children	CompanyIDNOSSRegistrationNbrNOSSLPARegistrationNbrProvisionalNSSONbrSocialSecretariatNumberINSS
used by	element  HandledOriginalFile
annotation	documentation 90560
source	<xs:element name="HandledSenderIdentification" type="HandledSenderIdentificationType">   <xs:annotation>     <xs:documentation>90560</xs:documentation>   </xs:annotation> </xs:element>

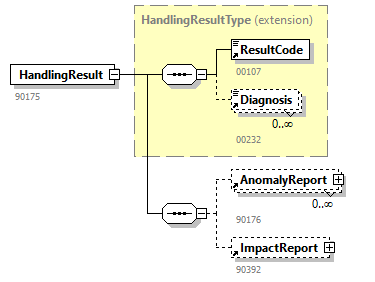

element HandlingResult

diagram
type	extension of HandlingResultType
properties	content  complex
children	ResultCodeDiagnosisAnomalyReportImpactReport
used by	element  Form
annotation	documentation 90175
source	<xs:element name="HandlingResult">   <xs:annotation>     <xs:documentation>90175</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="HandlingResultType">         <xs:sequence>           <xs:element ref="AnomalyReport" minOccurs="0" maxOccurs="unbounded"/>           <xs:element ref="ImpactReport" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element HourSubmission

diagram
type	restriction of xs:time
properties	content  simple
used by	complexType  InvolvedPartnerType
facets	Kind  Value  Annotation pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation	documentation 00811
source	<xs:element name="HourSubmission">   <xs:annotation>     <xs:documentation>00811</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:time">       <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HouseNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  AddressType
facets	Kind  Value  Annotation maxLength  10
annotation	documentation 00518
source	<xs:element name="HouseNbr">   <xs:annotation>     <xs:documentation>00518</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Identification

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  FormType
