Schema VBLV001_20244.xsd


ROOT ELEMENT:  VBLV001
attributeFormDefault:  unqualified
elementFormDefault:  qualified

Elements  Complex types
Address  AddressType
AttestationStatus  CommentDeclarationType
C32ANbr  CommunicationType
City  ControlCardType
CommentDeclaration  CoordinatesContactPersonType
CommentOfDeclaration  EmployerDeclarationLinkType
Communication  FormType
CompanyID  NaturalPersonType
ControlCard  NOSSLPAEmployerDeclarationLinkType
CoordinatesContactPerson  OperationalOfficeType
Country  ReferencePeriodType
Denomination  ReferenceType
EmailAddress  RiskIdentificationType
EmployerDeclarationLink  SenderType
FaxNbr
FirstName
Form
FormCreationDate
FormCreationHour
GSMNbr
HouseNbr
Identification
IdentificationOfRisk
INSS
Language
Name
Nationality
NaturalPerson
NaturalPersonSequenceNbr
NaturalPersonUserReference
NOSSLPAEmployerDeclarationLink
NOSSLPARegistrationNbr
NOSSRegistrationNbr
OperationalOffice
PhoneNbr
PostBox
RefEndingDate
Reference
ReferenceNbr
ReferenceOrigin
ReferencePeriod
ReferenceType
RefStartingDate
RiskIdentification
Sender
SIS
SocialSecretariatNumber
Street
Trusteeship
TypeForm
VBLV001
WorkerBirthdate
WorkerBirthplace
WorkerBirthplaceCountry
WorkerCity
WorkerCountry
WorkerFirstName
WorkerHouseNbr
WorkerInitial
WorkerName
WorkerPostBox
WorkerSex
WorkerStreet
WorkerZIPCode
ZIPCode

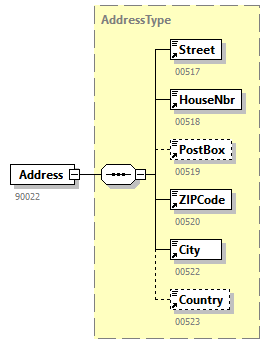

element Address
diagram VBLV001_20244_p1.png
type AddressType
properties
content  complex
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  CoordinatesContactPerson
annotation
documentation
90022
source <xs:element name="Address" type="AddressType">
  <xs:annotation>
    <xs:documentation>90022</xs:documentation>
  </xs:annotation>
</xs:element>

element AttestationStatus
diagram VBLV001_20244_p2.png
type restriction of xs:integer
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  0
annotation
documentation
00110
source <xs:element name="AttestationStatus">
  <xs:annotation>
    <xs:documentation>00110</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element C32ANbr
diagram VBLV001_20244_p3.png
type restriction of xs:string
properties
content  simple
used by
complexType  ControlCardType
facets
Kind  Value  Annotation
maxLength  9
pattern  [a-z|A-Z]{2}\d{7}
annotation
documentation
01014
source <xs:element name="C32ANbr">
  <xs:annotation>
    <xs:documentation>01014</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
      <xs:pattern value="[a-z|A-Z]{2}\d{7}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element City
diagram VBLV001_20244_p4.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeOperationalOfficeTypeSenderType
facets
Kind  Value  Annotation
maxLength  40
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00522
source <xs:element name="City">
  <xs:annotation>
    <xs:documentation>00522</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CommentDeclaration
diagram VBLV001_20244_p5.png
type CommentDeclarationType
properties
content  complex
children CommentOfDeclaration
used by
element  Form
annotation
documentation
90036
source <xs:element name="CommentDeclaration" type="CommentDeclarationType">
  <xs:annotation>
    <xs:documentation>90036</xs:documentation>
  </xs:annotation>
</xs:element>

element CommentOfDeclaration
diagram VBLV001_20244_p6.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommentDeclarationType
facets
Kind  Value  Annotation
maxLength  200
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00126
source <xs:element name="CommentOfDeclaration">
  <xs:annotation>
    <xs:documentation>00126</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="200"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

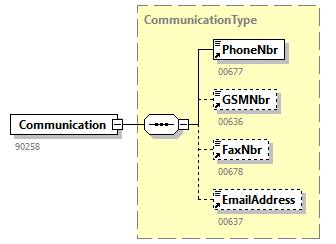

element Communication
diagram VBLV001_20244_p7.png
type CommunicationType
properties
content  complex
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
element  CoordinatesContactPerson
annotation
documentation
90258
source <xs:element name="Communication" type="CommunicationType">
  <xs:annotation>
    <xs:documentation>90258</xs:documentation>
  </xs:annotation>
</xs:element>

element CompanyID
diagram VBLV001_20244_p8.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  EmployerDeclarationLinkTypeNOSSLPAEmployerDeclarationLinkType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1999999943
totalDigits  10
pattern  0|\d{9}|\d{10}
annotation
documentation
00014
appinfo
CompanyID_conversion1
appinfo
xs:companyId
source <xs:element name="CompanyID">
  <xs:annotation>
    <xs:documentation>00014</xs:documentation>
    <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1999999943"/>
      <xs:totalDigits value="10"/>
      <xs:pattern value="0|\d{9}|\d{10}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

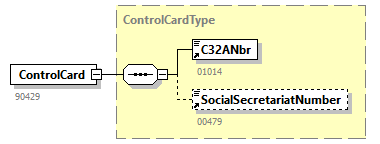

element ControlCard
diagram VBLV001_20244_p9.png
type ControlCardType
properties
content  complex
children C32ANbrSocialSecretariatNumber
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90429
source <xs:element name="ControlCard" type="ControlCardType">
  <xs:annotation>
    <xs:documentation>90429</xs:documentation>
  </xs:annotation>
</xs:element>

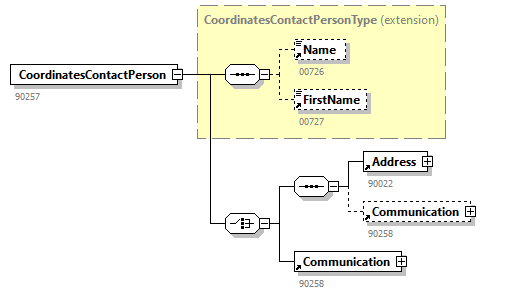

element CoordinatesContactPerson
diagram VBLV001_20244_p10.png
type extension of CoordinatesContactPersonType
properties
content  complex
children NameFirstNameAddressCommunication
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90257
source <xs:element name="CoordinatesContactPerson">
  <xs:annotation>
    <xs:documentation>90257</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CoordinatesContactPersonType">
        <xs:choice>
          <xs:sequence>
            <xs:element ref="Address"/>
            <xs:element ref="Communication" minOccurs="0"/>
          </xs:sequence>
          <xs:element ref="Communication"/>
        </xs:choice>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element Country
diagram VBLV001_20244_p11.png
type restriction of xs:integer
properties
content  simple
used by
complexTypes  AddressTypeSenderType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00523
source <xs:element name="Country">
  <xs:annotation>
    <xs:documentation>00523</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Denomination
diagram VBLV001_20244_p12.png
type restriction of xs:string
properties
content  simple
used by
complexType  SenderType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00776
source <xs:element name="Denomination">
  <xs:annotation>
    <xs:documentation>00776</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmailAddress
diagram VBLV001_20244_p13.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  60
annotation
documentation
00637
source <xs:element name="EmailAddress">
  <xs:annotation>
    <xs:documentation>00637</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="60"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

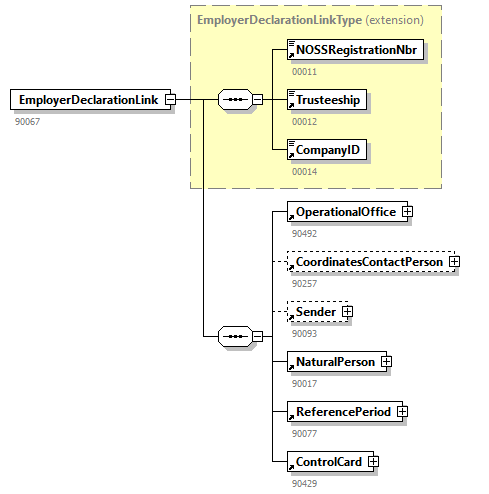

element EmployerDeclarationLink
diagram VBLV001_20244_p14.png
type extension of EmployerDeclarationLinkType
properties
content  complex
children NOSSRegistrationNbrTrusteeshipCompanyIDOperationalOfficeCoordinatesContactPersonSenderNaturalPersonReferencePeriodControlCard
used by
element  Form
annotation
documentation
90067
source <xs:element name="EmployerDeclarationLink">
  <xs:annotation>
    <xs:documentation>90067</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="EmployerDeclarationLinkType">
        <xs:sequence>
          <xs:element ref="OperationalOffice"/>
          <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>
          <xs:element ref="Sender" minOccurs="0"/>
          <xs:element ref="NaturalPerson"/>
          <xs:element ref="ReferencePeriod"/>
          <xs:element ref="ControlCard"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FaxNbr
diagram VBLV001_20244_p15.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00678
source <xs:element name="FaxNbr">
  <xs:annotation>
    <xs:documentation>00678</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FirstName
diagram VBLV001_20244_p16.png
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesContactPersonType
facets
Kind  Value  Annotation
maxLength  24
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00727
source <xs:element name="FirstName">
  <xs:annotation>
    <xs:documentation>00727</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="24"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

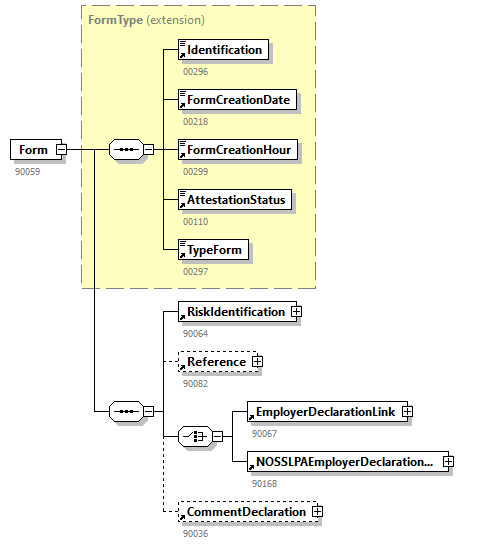

element Form
diagram VBLV001_20244_p17.png
type extension of FormType
properties
content  complex
children IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormRiskIdentificationReferenceEmployerDeclarationLinkNOSSLPAEmployerDeclarationLinkCommentDeclaration
used by
element  VBLV001
annotation
documentation
90059
source <xs:element name="Form">
  <xs:annotation>
    <xs:documentation>90059</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FormType">
        <xs:sequence>
          <xs:element ref="RiskIdentification"/>
          <xs:element ref="Reference" minOccurs="0"/>
          <xs:choice>
            <xs:element ref="EmployerDeclarationLink"/>
            <xs:element ref="NOSSLPAEmployerDeclarationLink"/>
          </xs:choice>
          <xs:element ref="CommentDeclaration" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FormCreationDate
diagram VBLV001_20244_p18.png
type restriction of xs:date
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
minInclusive  2005-07-01
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00218
appinfo
Date_conversion1
source <xs:element name="FormCreationDate">
  <xs:annotation>
    <xs:documentation>00218</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:minInclusive value="2005-07-01"/>
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FormCreationHour
diagram VBLV001_20244_p19.png
type restriction of xs:time
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation
documentation
00299
appinfo
Time_conversion1
source <xs:element name="FormCreationHour">
  <xs:annotation>
    <xs:documentation>00299</xs:documentation>
    <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:time">
      <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element GSMNbr
diagram VBLV001_20244_p20.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00636
source <xs:element name="GSMNbr">
  <xs:annotation>
    <xs:documentation>00636</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element HouseNbr
diagram VBLV001_20244_p21.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeOperationalOfficeTypeSenderType
facets
Kind  Value  Annotation
maxLength  10
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00518
source <xs:element name="HouseNbr">
  <xs:annotation>
    <xs:documentation>00518</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Identification
diagram VBLV001_20244_p22.png
type restriction of xs:string
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
maxLength  7
enumeration  VBLV001
annotation
documentation
00296
source <xs:element name="Identification">
  <xs:annotation>
    <xs:documentation>00296</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="7"/>
      <xs:enumeration value="VBLV001"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IdentificationOfRisk
diagram VBLV001_20244_p23.png
type restriction of xs:integer
properties
content  simple
used by
complexType  RiskIdentificationType
facets
Kind  Value  Annotation
totalDigits  3
enumeration  001
annotation
documentation
00430
source <xs:element name="IdentificationOfRisk">
  <xs:annotation>
    <xs:documentation>00430</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="3"/>
      <xs:enumeration value="001"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element INSS
diagram VBLV001_20244_p24.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
totalDigits  11
pattern  \d{11}
annotation
documentation
00024
appinfo
Inss_conversion1
appinfo
xs:inss
source <xs:element name="INSS">
  <xs:annotation>
    <xs:documentation>00024</xs:documentation>
    <xs:appinfo source="ConversionID">Inss_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:inss</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="11"/>
      <xs:pattern value="\d{11}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Language
diagram VBLV001_20244_p25.png
type restriction of xs:integer
properties
content  simple
used by
complexType  SenderType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  5
totalDigits  1
annotation
documentation
01047
source <xs:element name="Language">
  <xs:annotation>
    <xs:documentation>01047</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="5"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Name
diagram VBLV001_20244_p26.png
type restriction of xs:string
properties
content  simple
used by
complexType  CoordinatesContactPersonType
facets
Kind  Value  Annotation
maxLength  48
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00726
source <xs:element name="Name">
  <xs:annotation>
    <xs:documentation>00726</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="48"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Nationality
diagram VBLV001_20244_p27.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00119
source <xs:element name="Nationality">
  <xs:annotation>
    <xs:documentation>00119</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NaturalPerson
diagram VBLV001_20244_p28.png
type NaturalPersonType
properties
content  complex
children NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityNaturalPersonUserReference
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90017
source <xs:element name="NaturalPerson" type="NaturalPersonType">
  <xs:annotation>
    <xs:documentation>90017</xs:documentation>
  </xs:annotation>
</xs:element>

element NaturalPersonSequenceNbr
diagram VBLV001_20244_p29.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  9999999
totalDigits  7
annotation
documentation
00023
source <xs:element name="NaturalPersonSequenceNbr">
  <xs:annotation>
    <xs:documentation>00023</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="9999999"/>
      <xs:totalDigits value="7"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NaturalPersonUserReference
diagram VBLV001_20244_p30.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00615
source <xs:element name="NaturalPersonUserReference">
  <xs:annotation>
    <xs:documentation>00615</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

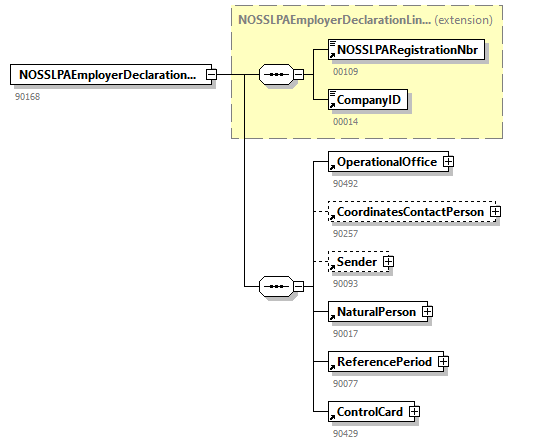

element NOSSLPAEmployerDeclarationLink
diagram VBLV001_20244_p31.png
type extension of NOSSLPAEmployerDeclarationLinkType
properties
content  complex
children NOSSLPARegistrationNbrCompanyIDOperationalOfficeCoordinatesContactPersonSenderNaturalPersonReferencePeriodControlCard
used by
element  Form
annotation
documentation
90168
source <xs:element name="NOSSLPAEmployerDeclarationLink">
  <xs:annotation>
    <xs:documentation>90168</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="NOSSLPAEmployerDeclarationLinkType">
        <xs:sequence>
          <xs:element ref="OperationalOffice"/>
          <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>
          <xs:element ref="Sender" minOccurs="0"/>
          <xs:element ref="NaturalPerson"/>
          <xs:element ref="ReferencePeriod"/>
          <xs:element ref="ControlCard"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element NOSSLPARegistrationNbr
diagram VBLV001_20244_p32.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NOSSLPAEmployerDeclarationLinkType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999926
totalDigits  8
annotation
documentation
00109
appinfo
NossAPL_conversion1
appinfo
xs:nossLpaRegistrationNbr
source <xs:element name="NOSSLPARegistrationNbr">
  <xs:annotation>
    <xs:documentation>00109</xs:documentation>
    <xs:appinfo source="ConversionID">NossAPL_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:nossLpaRegistrationNbr</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999926"/>
      <xs:totalDigits value="8"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NOSSRegistrationNbr
diagram VBLV001_20244_p33.png
type restriction of xs:integer
properties
content  simple
used by
complexType  EmployerDeclarationLinkType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  199999934
totalDigits  9
annotation
documentation
00011
appinfo
Noss_conversion1
appinfo
xs:nossRegistrationNbr
source <xs:element name="NOSSRegistrationNbr">
  <xs:annotation>
    <xs:documentation>00011</xs:documentation>
    <xs:appinfo source="ConversionID">Noss_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:nossRegistrationNbr</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="199999934"/>
      <xs:totalDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

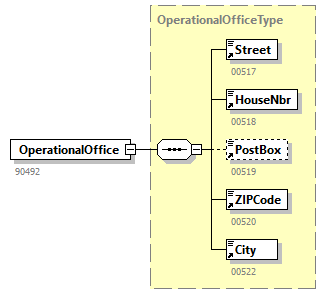

element OperationalOffice
diagram VBLV001_20244_p34.png
type OperationalOfficeType
properties
content  complex
children StreetHouseNbrPostBoxZIPCodeCity
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90492
source <xs:element name="OperationalOffice" type="OperationalOfficeType">
  <xs:annotation>
    <xs:documentation>90492</xs:documentation>
  </xs:annotation>
</xs:element>

element PhoneNbr
diagram VBLV001_20244_p35.png
type restriction of xs:string
properties
content  simple
used by
complexType  CommunicationType
facets
Kind  Value  Annotation
maxLength  20
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00677
source <xs:element name="PhoneNbr">
  <xs:annotation>
    <xs:documentation>00677</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PostBox
diagram VBLV001_20244_p36.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeOperationalOfficeTypeSenderType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00519
source <xs:element name="PostBox">
  <xs:annotation>
    <xs:documentation>00519</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RefEndingDate
diagram VBLV001_20244_p37.png
type restriction of xs:date
properties
content  simple
used by
complexType  ReferencePeriodType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00075
appinfo
Date_conversion1
source <xs:element name="RefEndingDate">
  <xs:annotation>
    <xs:documentation>00075</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Reference

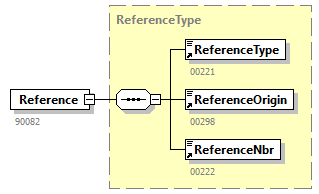

diagram VBLV001_20244_p38.png
type ReferenceType
properties
content  complex
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Form
annotation
documentation
90082
source <xs:element name="Reference" type="ReferenceType">
  <xs:annotation>
    <xs:documentation>90082</xs:documentation>
  </xs:annotation>
</xs:element>

element ReferenceNbr
diagram VBLV001_20244_p39.png
type restriction of xs:string
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
minLength  1
maxLength  20
annotation
documentation
00222
appinfo
TicketNumber_conversion1
source <xs:element name="ReferenceNbr">
  <xs:annotation>
    <xs:documentation>00222</xs:documentation>
    <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceOrigin
diagram VBLV001_20244_p40.png
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  1
totalDigits  1
annotation
documentation
00298
source <xs:element name="ReferenceOrigin">
  <xs:annotation>
    <xs:documentation>00298</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferencePeriod

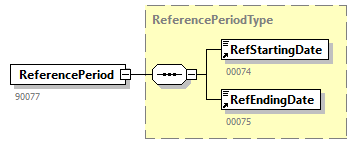

diagram VBLV001_20244_p41.png
type ReferencePeriodType
properties
content  complex
children RefStartingDateRefEndingDate
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90077
source <xs:element name="ReferencePeriod" type="ReferencePeriodType">
  <xs:annotation>
    <xs:documentation>90077</xs:documentation>
  </xs:annotation>
</xs:element>

element ReferenceType
diagram VBLV001_20244_p42.png
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceType
facets
Kind  Value  Annotation
totalDigits  1
enumeration  1
annotation
documentation
00221
source <xs:element name="ReferenceType">
  <xs:annotation>
    <xs:documentation>00221</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="1"/>
      <xs:enumeration value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RefStartingDate
diagram VBLV001_20244_p43.png
type restriction of xs:date
properties
content  simple
used by
complexType  ReferencePeriodType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00074
appinfo
Date_conversion1
source <xs:element name="RefStartingDate">
  <xs:annotation>
    <xs:documentation>00074</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RiskIdentification
diagram VBLV001_20244_p44.png
type RiskIdentificationType
properties
content  complex
children IdentificationOfRisk
used by
element  Form
annotation
documentation
90064
source <xs:element name="RiskIdentification" type="RiskIdentificationType">
  <xs:annotation>
    <xs:documentation>90064</xs:documentation>
  </xs:annotation>
</xs:element>

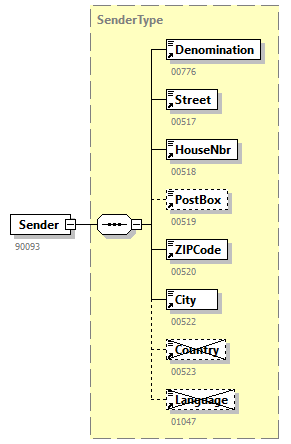

element Sender
diagram VBLV001_20244_p45.png
type SenderType
properties
content  complex
children DenominationStreetHouseNbrPostBoxZIPCodeCityCountryLanguage
used by
elements  EmployerDeclarationLinkNOSSLPAEmployerDeclarationLink
annotation
documentation
90093
source <xs:element name="Sender" type="SenderType">
  <xs:annotation>
    <xs:documentation>90093</xs:documentation>
  </xs:annotation>
</xs:element>

element SIS
diagram VBLV001_20244_p46.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  9999999999
totalDigits  10
annotation
documentation
00167
source <xs:element name="SIS">
  <xs:annotation>
    <xs:documentation>00167</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="9999999999"/>
      <xs:totalDigits value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SocialSecretariatNumber
diagram VBLV001_20244_p47.png
type restriction of xs:integer
properties
content  simple
used by
complexType  ControlCardType
facets
Kind  Value  Annotation
totalDigits  3
enumeration  100
enumeration  110
enumeration  120
enumeration  150
enumeration  200
enumeration  250
enumeration  280
enumeration  290
enumeration  300
enumeration  322
enumeration  370
enumeration  500
enumeration  510
enumeration  540
enumeration  560
enumeration  600
enumeration  610
enumeration  620
enumeration  640
enumeration  650
enumeration  690
enumeration  710
enumeration  730
enumeration  740
enumeration  750
enumeration  790
enumeration  800
enumeration  810
enumeration  850
enumeration  860
enumeration  870
enumeration  880
enumeration  910
enumeration  920
enumeration  950
enumeration  960
enumeration  980
enumeration  990
annotation
documentation
00479
source <xs:element name="SocialSecretariatNumber">
  <xs:annotation>
    <xs:documentation>00479</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="3"/>
      <xs:enumeration value="100"/>
      <xs:enumeration value="110"/>
      <xs:enumeration value="120"/>
      <xs:enumeration value="150"/>
      <xs:enumeration value="200"/>
      <xs:enumeration value="250"/>
      <xs:enumeration value="280"/>
      <xs:enumeration value="290"/>
      <xs:enumeration value="300"/>
      <xs:enumeration value="322"/>
      <xs:enumeration value="370"/>
      <xs:enumeration value="500"/>
      <xs:enumeration value="510"/>
      <xs:enumeration value="540"/>
      <xs:enumeration value="560"/>
      <xs:enumeration value="600"/>
      <xs:enumeration value="610"/>
      <xs:enumeration value="620"/>
      <xs:enumeration value="640"/>
      <xs:enumeration value="650"/>
      <xs:enumeration value="690"/>
      <xs:enumeration value="710"/>
      <xs:enumeration value="730"/>
      <xs:enumeration value="740"/>
      <xs:enumeration value="750"/>
      <xs:enumeration value="790"/>
      <xs:enumeration value="800"/>
      <xs:enumeration value="810"/>
      <xs:enumeration value="850"/>
      <xs:enumeration value="860"/>
      <xs:enumeration value="870"/>
      <xs:enumeration value="880"/>
      <xs:enumeration value="910"/>
      <xs:enumeration value="920"/>
      <xs:enumeration value="950"/>
      <xs:enumeration value="960"/>
      <xs:enumeration value="980"/>
      <xs:enumeration value="990"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Street
diagram VBLV001_20244_p48.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeOperationalOfficeTypeSenderType
facets
Kind  Value  Annotation
maxLength  42
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00517
source <xs:element name="Street">
  <xs:annotation>
    <xs:documentation>00517</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="42"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Trusteeship
diagram VBLV001_20244_p49.png
type restriction of xs:integer
properties
content  simple
used by
complexType  EmployerDeclarationLinkType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1
totalDigits  1
annotation
documentation
00012
source <xs:element name="Trusteeship">
  <xs:annotation>
    <xs:documentation>00012</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element TypeForm
diagram VBLV001_20244_p50.png
type restriction of xs:string
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
maxLength  2
enumeration  SU
annotation
documentation
00297
source <xs:element name="TypeForm">
  <xs:annotation>
    <xs:documentation>00297</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="2"/>
      <xs:enumeration value="SU"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VBLV001
diagram VBLV001_20244_p51.png
properties
content  complex
children Form
annotation
documentation
90430
source <xs:element name="VBLV001">
  <xs:annotation>
    <xs:documentation>90430</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Form" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element WorkerBirthdate
diagram VBLV001_20244_p52.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
length  10
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00028
appinfo
Date_conversion2
source <xs:element name="WorkerBirthdate">
  <xs:annotation>
    <xs:documentation>00028</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion2</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:length value="10"/>
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerBirthplace
diagram VBLV001_20244_p53.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  40
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00168
source <xs:element name="WorkerBirthplace">
  <xs:annotation>
    <xs:documentation>00168</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerBirthplaceCountry
diagram VBLV001_20244_p54.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00169
source <xs:element name="WorkerBirthplaceCountry">
  <xs:annotation>
    <xs:documentation>00169</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerCity
diagram VBLV001_20244_p55.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  40
annotation
documentation
00034
source <xs:element name="WorkerCity">
  <xs:annotation>
    <xs:documentation>00034</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerCountry
diagram VBLV001_20244_p56.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00035
source <xs:element name="WorkerCountry">
  <xs:annotation>
    <xs:documentation>00035</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerFirstName
diagram VBLV001_20244_p57.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minLength  1
maxLength  24
annotation
documentation
00026
source <xs:element name="WorkerFirstName">
  <xs:annotation>
    <xs:documentation>00026</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="24"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerHouseNbr
diagram VBLV001_20244_p58.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  10
annotation
documentation
00031
source <xs:element name="WorkerHouseNbr">
  <xs:annotation>
    <xs:documentation>00031</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerInitial
diagram VBLV001_20244_p59.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
length  1
pattern  \p{L}
annotation
documentation
00027
source <xs:element name="WorkerInitial">
  <xs:annotation>
    <xs:documentation>00027</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:length value="1"/>
      <xs:pattern value="\p{L}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerName
diagram VBLV001_20244_p60.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minLength  1
maxLength  48
annotation
documentation
00025
source <xs:element name="WorkerName">
  <xs:annotation>
    <xs:documentation>00025</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="48"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerPostBox
diagram VBLV001_20244_p61.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00032
source <xs:element name="WorkerPostBox">
  <xs:annotation>
    <xs:documentation>00032</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerSex
diagram VBLV001_20244_p62.png
type restriction of xs:integer
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  2
totalDigits  1
annotation
documentation
00029
source <xs:element name="WorkerSex">
  <xs:annotation>
    <xs:documentation>00029</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="2"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerStreet
diagram VBLV001_20244_p63.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  35
annotation
documentation
00030
source <xs:element name="WorkerStreet">
  <xs:annotation>
    <xs:documentation>00030</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="35"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element WorkerZIPCode
diagram VBLV001_20244_p64.png
type restriction of xs:string
properties
content  simple
used by
complexType  NaturalPersonType
facets
Kind  Value  Annotation
maxLength  9
annotation
documentation
00033
source <xs:element name="WorkerZIPCode">
  <xs:annotation>
    <xs:documentation>00033</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ZIPCode
diagram VBLV001_20244_p65.png
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddressTypeOperationalOfficeTypeSenderType
facets
Kind  Value  Annotation
maxLength  9
pattern  [\s\S]*\S[\s\S]*
annotation
documentation
00520
source <xs:element name="ZIPCode">
  <xs:annotation>
    <xs:documentation>00520</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
      <xs:pattern value="[\s\S]*\S[\s\S]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType AddressType
diagram VBLV001_20244_p66.png
children StreetHouseNbrPostBoxZIPCodeCityCountry
used by
element  Address
source <xs:complexType name="AddressType">
  <xs:sequence>
    <xs:element ref="Street"/>
    <xs:element ref="HouseNbr"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode"/>
    <xs:element ref="City"/>
    <xs:element ref="Country" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType CommentDeclarationType
diagram VBLV001_20244_p67.png
children CommentOfDeclaration
used by
element  CommentDeclaration
source <xs:complexType name="CommentDeclarationType">
  <xs:sequence>
    <xs:element ref="CommentOfDeclaration"/>
  </xs:sequence>
</xs:complexType>

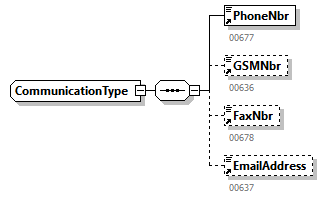

complexType CommunicationType
diagram VBLV001_20244_p68.png
children PhoneNbrGSMNbrFaxNbrEmailAddress
used by
element  Communication
source <xs:complexType name="CommunicationType">
  <xs:sequence>
    <xs:element ref="PhoneNbr"/>
    <xs:element ref="GSMNbr" minOccurs="0"/>
    <xs:element ref="FaxNbr" minOccurs="0"/>
    <xs:element ref="EmailAddress" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType ControlCardType
diagram VBLV001_20244_p69.png
children C32ANbrSocialSecretariatNumber
used by
element  ControlCard
source <xs:complexType name="ControlCardType">
  <xs:sequence>
    <xs:element ref="C32ANbr"/>
    <xs:element ref="SocialSecretariatNumber" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType CoordinatesContactPersonType
diagram VBLV001_20244_p70.png
children NameFirstName
used by
element  CoordinatesContactPerson
source <xs:complexType name="CoordinatesContactPersonType">
  <xs:sequence>
    <xs:element ref="Name" minOccurs="0"/>
    <xs:element ref="FirstName" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

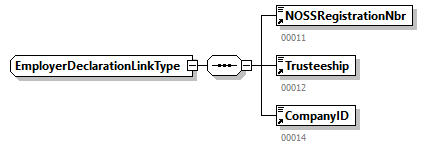

complexType EmployerDeclarationLinkType
diagram VBLV001_20244_p71.png
children NOSSRegistrationNbrTrusteeshipCompanyID
used by
element  EmployerDeclarationLink
source <xs:complexType name="EmployerDeclarationLinkType">
  <xs:sequence>
    <xs:element ref="NOSSRegistrationNbr"/>
    <xs:element ref="Trusteeship"/>
    <xs:element ref="CompanyID"/>
  </xs:sequence>
</xs:complexType>

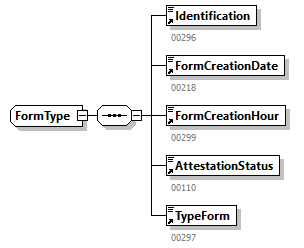

complexType FormType
diagram VBLV001_20244_p72.png
children IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by
element  Form
source <xs:complexType name="FormType">
  <xs:sequence>
    <xs:element ref="Identification"/>
    <xs:element ref="FormCreationDate"/>
    <xs:element ref="FormCreationHour"/>
    <xs:element ref="AttestationStatus"/>
    <xs:element ref="TypeForm"/>
  </xs:sequence>
</xs:complexType>

complexType NaturalPersonType
diagram VBLV001_20244_p73.png
children NaturalPersonSequenceNbrINSSSISWorkerNameWorkerFirstNameWorkerInitialWorkerBirthdateWorkerBirthplaceWorkerBirthplaceCountryWorkerSexWorkerStreetWorkerHouseNbrWorkerPostBoxWorkerZIPCodeWorkerCityWorkerCountryNationalityNaturalPersonUserReference
used by
element  NaturalPerson
source <xs:complexType name="NaturalPersonType">
  <xs:sequence>
    <xs:element ref="NaturalPersonSequenceNbr"/>
    <xs:element ref="INSS"/>
    <xs:element ref="SIS" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerName" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerFirstName" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerInitial" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerBirthdate" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerBirthplace" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerBirthplaceCountry" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerSex" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerStreet" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerHouseNbr" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerPostBox" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerZIPCode" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerCity" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="WorkerCountry" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="Nationality" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="NaturalPersonUserReference" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

complexType NOSSLPAEmployerDeclarationLinkType
diagram VBLV001_20244_p74.png
children NOSSLPARegistrationNbrCompanyID
used by
element  NOSSLPAEmployerDeclarationLink
source <xs:complexType name="NOSSLPAEmployerDeclarationLinkType">
  <xs:sequence>
    <xs:element ref="NOSSLPARegistrationNbr"/>
    <xs:element ref="CompanyID"/>
  </xs:sequence>
</xs:complexType>

complexType OperationalOfficeType
diagram VBLV001_20244_p75.png
children StreetHouseNbrPostBoxZIPCodeCity
used by
element  OperationalOffice
source <xs:complexType name="OperationalOfficeType">
  <xs:sequence>
    <xs:element ref="Street"/>
    <xs:element ref="HouseNbr"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode"/>
    <xs:element ref="City"/>
  </xs:sequence>
</xs:complexType>

complexType ReferencePeriodType
diagram VBLV001_20244_p76.png
children RefStartingDateRefEndingDate
used by
element  ReferencePeriod
source <xs:complexType name="ReferencePeriodType">
  <xs:sequence>
    <xs:element ref="RefStartingDate"/>
    <xs:element ref="RefEndingDate"/>
  </xs:sequence>
</xs:complexType>

complexType ReferenceType
diagram VBLV001_20244_p77.png
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Reference
source <xs:complexType name="ReferenceType">
  <xs:sequence>
    <xs:element ref="ReferenceType"/>
    <xs:element ref="ReferenceOrigin"/>
    <xs:element ref="ReferenceNbr"/>
  </xs:sequence>
</xs:complexType>

complexType RiskIdentificationType
diagram VBLV001_20244_p78.png
children IdentificationOfRisk
used by
element  RiskIdentification
source <xs:complexType name="RiskIdentificationType">
  <xs:sequence>
    <xs:element ref="IdentificationOfRisk"/>
  </xs:sequence>
</xs:complexType>

complexType SenderType
diagram VBLV001_20244_p79.png
children DenominationStreetHouseNbrPostBoxZIPCodeCityCountryLanguage
used by
element  Sender
source <xs:complexType name="SenderType">
  <xs:sequence>
    <xs:element ref="Denomination"/>
    <xs:element ref="Street"/>
    <xs:element ref="HouseNbr"/>
    <xs:element ref="PostBox" minOccurs="0"/>
    <xs:element ref="ZIPCode"/>
    <xs:element ref="City"/>
    <xs:element ref="Country" minOccurs="0" maxOccurs="0"/>
    <xs:element ref="Language" minOccurs="0" maxOccurs="0"/>
  </xs:sequence>
</xs:complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
