Schema GenericXmlDocument_20244.xsd


ROOT ELEMENT:  GenericXmlDocument
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  http://www.smals-mvm.be/xml/ns/systemFlux

Elements  Complex types
Addressee  AddresseeDataType
AddresseeData  AssignedUserCriteriaType
AddresseeQuality  AssignedUserDataType
AddresseeType  BusinessDescriptionType
AssignedUserCriteria  CaseDataType
AssignedUserData  CaseReferenceDataType
AssignedUserId  CaseStatusDataType
AssignedUserType  CoordinatesReceiverType
AttachmentId  DataType
AttestationStatus  DestinationCriteriaType
BusinessDescription  DestinationDataType
CaseData  DocumentDataType
CaseId  DocumentDescriptionType
CaseReferenceData  DocumentNonXMLType
CaseReferenceType  DocumentSendingDataType
CaseStatusData  DocumentTitleType
CaseSubType  DocumentXMLType

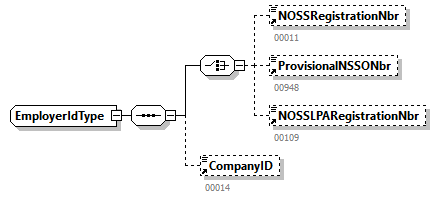

Channel  EmployerIdType
CharacterFormat  FileReceptionInformationType
CharacterSet  FileReferenceType

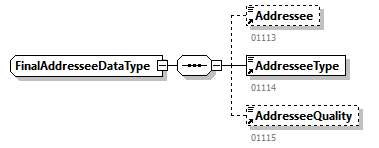

City  FinalAddresseeDataType
CompanyID  FormType

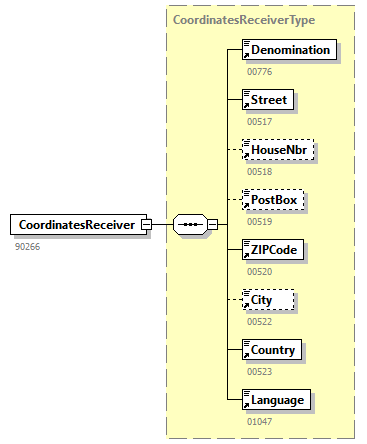

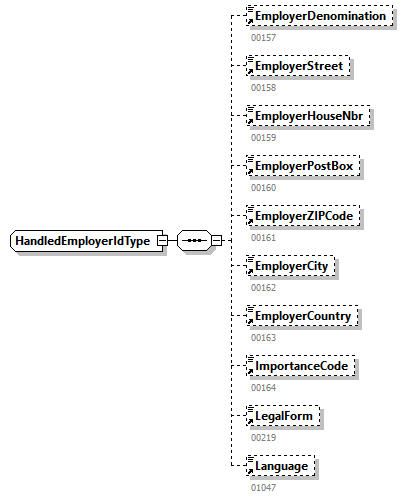

CoordinatesReceiver  HandledEmployerIdType
Country  HandledOriginalFileType
CreationDate  HandledSenderIdentificationType
Data  IntegrityCheckType
Date  MandateCriteriaType
DateSubmission  NaturalPersonIdType
Denomination  ObjectCriteriaType
DestinationCriteria  OriginSendingDataType
DestinationData  OtherConcernedEntityType
DestinationType  ProcessingDataType
DocumentBase64  ProcessingKeyValueType

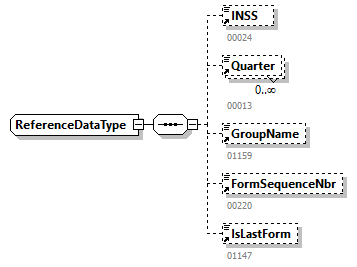

DocumentData  ReferenceDataType
DocumentDate  ReferenceType

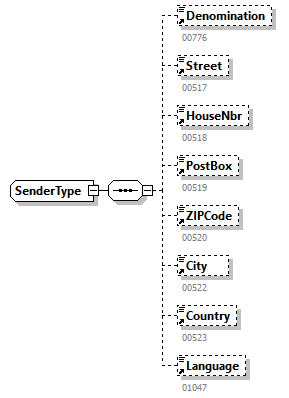

DocumentDescription  SenderType
DocumentNonXML  SpecificIndexCriteriaType
DocumentReference  SpecificIndexDataType
DocumentSendingData  SubGroupCriteriaType
DocumentSendingModus  TechnicalDescriptionType
DocumentTitle
DocumentType
DocumentXML
DueDate
EmailAddress
EmployerCity
EmployerCountry
EmployerDenomination
EmployerHouseNbr
EmployerId
EmployerPostBox
EmployerStreet
EmployerZIPCode
FileName
FileReceptionInformation
FileReference
FinalAddresseeData
Form
FormCreationDate
FormCreationHour
FormSequenceNbr
GenericXmlDocument
GroupName
GroupType
HandledEmployerId
HandledOriginalFile
HandledSenderIdentification
HouseNbr
Identification
ImportanceCode
IndexId
IndexValue
INSS
IntegrityCheck
IntegrityMethod
IsLastForm
Language
LegalForm
MandateCriteria
MandateType
MimeType
NaturalPersonId
NOSSLPARegistrationNbr
NOSSRegistrationNbr
NSSOService
Object
ObjectCriteria
ObjectType
OriginSendingData
OtherConcernedEntity
OutputChannel
PostBox
ProcessingData
ProcessingKey

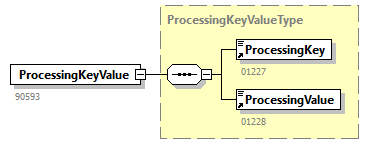

ProcessingKeyValue
ProcessingValue
ProcessType
ProvisionalNSSONbr
Quarter
ReceptionDate
ReceptionHour

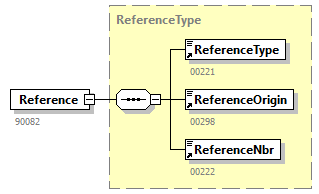

Reference
ReferenceData
ReferenceNbr
ReferenceOrigin
ReferenceType
Sender
SenderId
SocialSecretariatNumber
SpecificIndexCriteria
SpecificIndexData
Street
SubGroupCriteria
TechnicalDescription
TitleLongValue
TypeForm
Value
ZIPCode


element Addressee
diagram GenericXmlDocument_20244_p1.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddresseeDataTypeFinalAddresseeDataTypeOriginSendingDataType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
01113
source <xs:element name="Addressee">
  <xs:annotation>
    <xs:documentation>01113</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

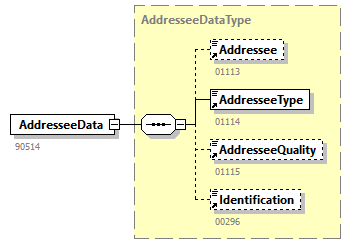

element AddresseeData
diagram GenericXmlDocument_20244_p2.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux

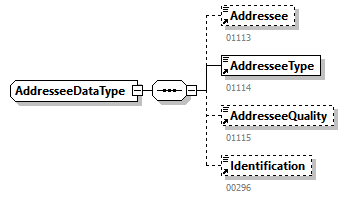

type AddresseeDataType
properties
content  complex
children AddresseeAddresseeTypeAddresseeQualityIdentification
used by
element  DestinationCriteria
annotation
documentation
90514
source <xs:element name="AddresseeData" type="AddresseeDataType">
  <xs:annotation>
    <xs:documentation>90514</xs:documentation>
  </xs:annotation>
</xs:element>

element AddresseeQuality
diagram GenericXmlDocument_20244_p3.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddresseeDataTypeFinalAddresseeDataTypeOriginSendingDataType
facets
Kind  Value  Annotation
maxLength  40
annotation
documentation
01115
source <xs:element name="AddresseeQuality">
  <xs:annotation>
    <xs:documentation>01115</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AddresseeType
diagram GenericXmlDocument_20244_p4.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddresseeDataTypeFinalAddresseeDataTypeOriginSendingDataType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
01114
source <xs:element name="AddresseeType">
  <xs:annotation>
    <xs:documentation>01114</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

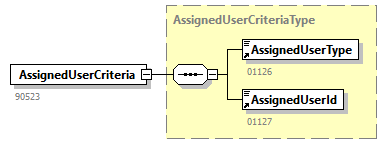

element AssignedUserCriteria
diagram GenericXmlDocument_20244_p5.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type AssignedUserCriteriaType
properties
content  complex
children AssignedUserTypeAssignedUserId
used by
element  AssignedUserData
annotation
documentation
90523
source <xs:element name="AssignedUserCriteria" type="AssignedUserCriteriaType">
  <xs:annotation>
    <xs:documentation>90523</xs:documentation>
  </xs:annotation>
</xs:element>

element AssignedUserData
diagram GenericXmlDocument_20244_p6.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of AssignedUserDataType
properties
content  complex
children AssignedUserCriteria
used by
element  CaseData
annotation
documentation
90522
source <xs:element name="AssignedUserData">
  <xs:annotation>
    <xs:documentation>90522</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="AssignedUserDataType">
        <xs:sequence>
          <xs:element ref="AssignedUserCriteria"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element AssignedUserId
diagram GenericXmlDocument_20244_p7.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  AssignedUserCriteriaType
annotation
documentation
01127
source <xs:element name="AssignedUserId">
  <xs:annotation>
    <xs:documentation>01127</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element AssignedUserType
diagram GenericXmlDocument_20244_p8.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  AssignedUserCriteriaType
annotation
documentation
01126
source <xs:element name="AssignedUserType">
  <xs:annotation>
    <xs:documentation>01126</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element AttachmentId
diagram GenericXmlDocument_20244_p9.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  TechnicalDescriptionType
facets
Kind  Value  Annotation
maxLength  7
annotation
documentation
01165
source <xs:element name="AttachmentId">
  <xs:annotation>
    <xs:documentation>01165</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="7"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AttestationStatus
diagram GenericXmlDocument_20244_p10.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  DocumentSendingDataTypeFormType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  8
totalDigits  1
annotation
documentation
00110
source <xs:element name="AttestationStatus">
  <xs:annotation>
    <xs:documentation>00110</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="8"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element BusinessDescription
diagram GenericXmlDocument_20244_p11.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
properties
content  complex
used by
element  DocumentDescription
annotation
documentation
90464
source <xs:element name="BusinessDescription">
  <xs:annotation>
    <xs:documentation>90464</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:any namespace="##any"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

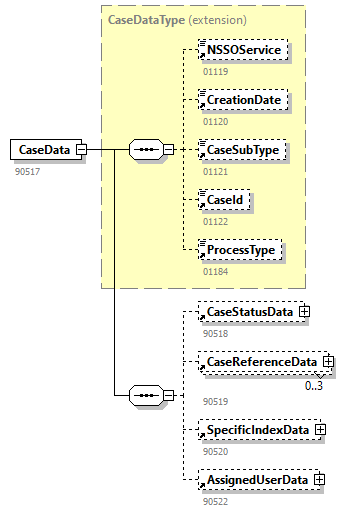

element CaseData
diagram GenericXmlDocument_20244_p12.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of CaseDataType
properties
content  complex
children NSSOServiceCreationDateCaseSubTypeCaseIdProcessTypeCaseStatusDataCaseReferenceDataSpecificIndexDataAssignedUserData
used by
element  Form
annotation
documentation
90517
source <xs:element name="CaseData">
  <xs:annotation>
    <xs:documentation>90517</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CaseDataType">
        <xs:sequence>
          <xs:element ref="CaseStatusData" minOccurs="0"/>
          <xs:element ref="CaseReferenceData" minOccurs="0" maxOccurs="3"/>
          <xs:element ref="SpecificIndexData" minOccurs="0"/>
          <xs:element ref="AssignedUserData" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element CaseId
diagram GenericXmlDocument_20244_p13.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  CaseDataType
facets
Kind  Value  Annotation
minLength  1
maxLength  18
annotation
documentation
01122
source <xs:element name="CaseId">
  <xs:annotation>
    <xs:documentation>01122</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="18"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

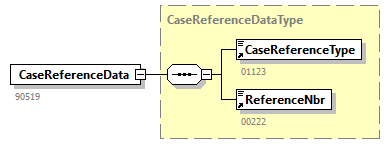

element CaseReferenceData
diagram GenericXmlDocument_20244_p14.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type CaseReferenceDataType
properties
content  complex
children CaseReferenceTypeReferenceNbr
used by
element  CaseData
annotation
documentation
90519
source <xs:element name="CaseReferenceData" type="CaseReferenceDataType">
  <xs:annotation>
    <xs:documentation>90519</xs:documentation>
  </xs:annotation>
</xs:element>

element CaseReferenceType
diagram GenericXmlDocument_20244_p15.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  CaseReferenceDataType
facets
Kind  Value  Annotation
maxLength  12
enumeration  PRODUCER_REF
enumeration  NOSS_REF
enumeration  EXTERNAL_REF
annotation
documentation
01123
source <xs:element name="CaseReferenceType">
  <xs:annotation>
    <xs:documentation>01123</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="12"/>
      <xs:enumeration value="PRODUCER_REF"/>
      <xs:enumeration value="NOSS_REF"/>
      <xs:enumeration value="EXTERNAL_REF"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CaseStatusData
diagram GenericXmlDocument_20244_p16.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type CaseStatusDataType
properties
content  complex
children DueDate
used by
element  CaseData
annotation
documentation
90518
source <xs:element name="CaseStatusData" type="CaseStatusDataType">
  <xs:annotation>
    <xs:documentation>90518</xs:documentation>
  </xs:annotation>
</xs:element>

element CaseSubType
diagram GenericXmlDocument_20244_p17.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  CaseDataType
facets
Kind  Value  Annotation
maxLength  10
enumeration  TYP_SC_026
enumeration  TYP_SC_119
enumeration  TYP_SC_214
enumeration  TYP_SC_215
enumeration  TYP_SC_216
enumeration  TYP_SC_217
enumeration  TYP_SC_246
enumeration  TYP_SC_247
enumeration  TYP_SC_283
enumeration  TYP_SC_284
enumeration  TYP_SC_502
annotation
documentation
01121
source <xs:element name="CaseSubType">
  <xs:annotation>
    <xs:documentation>01121</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
      <xs:enumeration value="TYP_SC_026"/>
      <xs:enumeration value="TYP_SC_119"/>
      <xs:enumeration value="TYP_SC_214"/>
      <xs:enumeration value="TYP_SC_215"/>
      <xs:enumeration value="TYP_SC_216"/>
      <xs:enumeration value="TYP_SC_217"/>
      <xs:enumeration value="TYP_SC_246"/>
      <xs:enumeration value="TYP_SC_247"/>
      <xs:enumeration value="TYP_SC_283"/>
      <xs:enumeration value="TYP_SC_284"/>
      <xs:enumeration value="TYP_SC_502"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Channel
diagram GenericXmlDocument_20244_p18.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by

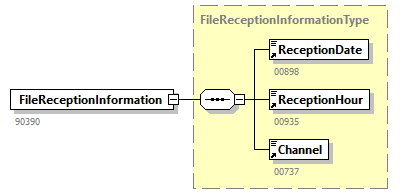

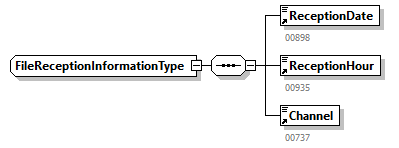

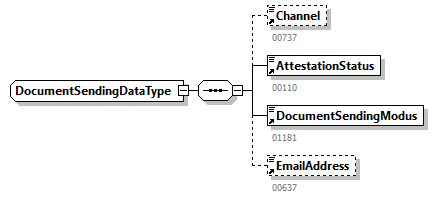

complexTypes  DocumentSendingDataTypeFileReceptionInformationType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  17
totalDigits  2
annotation
documentation
00737
source <xs:element name="Channel">
  <xs:annotation>
    <xs:documentation>00737</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="17"/>
      <xs:totalDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CharacterFormat
diagram GenericXmlDocument_20244_p19.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by

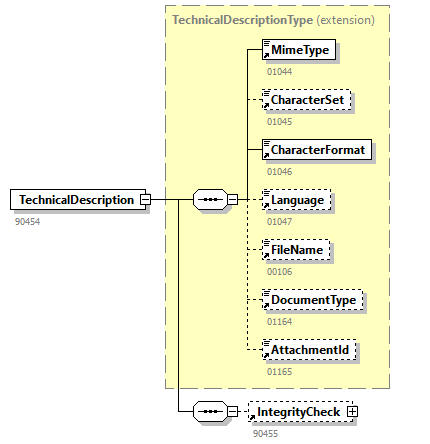

complexType  TechnicalDescriptionType
facets
Kind  Value  Annotation
maxLength  30
enumeration  NATIVE
enumeration  Base64
annotation
documentation
01046
source <xs:element name="CharacterFormat">
  <xs:annotation>
    <xs:documentation>01046</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="30"/>
      <xs:enumeration value="NATIVE"/>
      <xs:enumeration value="Base64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CharacterSet
diagram GenericXmlDocument_20244_p20.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  TechnicalDescriptionType
facets
Kind  Value  Annotation
maxLength  30
enumeration  UTF-8
annotation
documentation
01045
source <xs:element name="CharacterSet">
  <xs:annotation>
    <xs:documentation>01045</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="30"/>
      <xs:enumeration value="UTF-8"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element City
diagram GenericXmlDocument_20244_p21.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeSenderType
facets
Kind  Value  Annotation
maxLength  40
annotation
documentation
00522
source <xs:element name="City">
  <xs:annotation>
    <xs:documentation>00522</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CompanyID
diagram GenericXmlDocument_20244_p22.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by

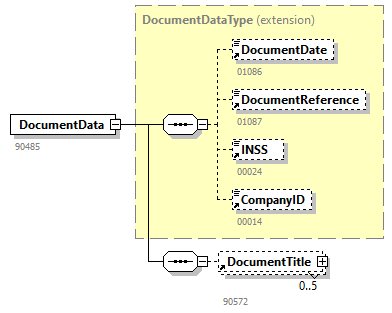

complexTypes  DocumentDataTypeEmployerIdTypeHandledSenderIdentificationType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  1999999943
totalDigits  10
pattern  0|\d{9}|\d{10}
annotation
documentation
00014
appinfo
CompanyID_conversion1
appinfo
xs:companyId
source <xs:element name="CompanyID">
  <xs:annotation>
    <xs:documentation>00014</xs:documentation>
    <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1999999943"/>
      <xs:totalDigits value="10"/>
      <xs:pattern value="0|\d{9}|\d{10}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

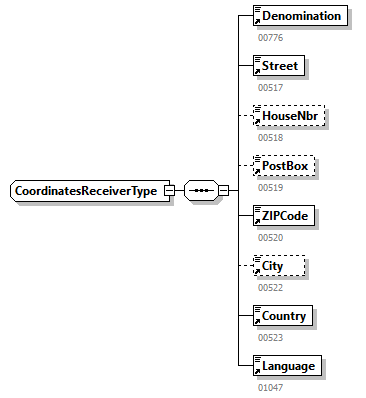

element CoordinatesReceiver
diagram GenericXmlDocument_20244_p23.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type CoordinatesReceiverType
properties
content  complex
children DenominationStreetHouseNbrPostBoxZIPCodeCityCountryLanguage
used by
element  DestinationCriteria
annotation
documentation
90266
source <xs:element name="CoordinatesReceiver" type="CoordinatesReceiverType">
  <xs:annotation>
    <xs:documentation>90266</xs:documentation>
  </xs:annotation>
</xs:element>

element Country
diagram GenericXmlDocument_20244_p24.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeSenderType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00523
source <xs:element name="Country">
  <xs:annotation>
    <xs:documentation>00523</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CreationDate
diagram GenericXmlDocument_20244_p25.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  CaseDataType
facets
Kind  Value  Annotation
minInclusive  2012-12-31
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01120
source <xs:element name="CreationDate">
  <xs:annotation>
    <xs:documentation>01120</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:minInclusive value="2012-12-31"/>
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

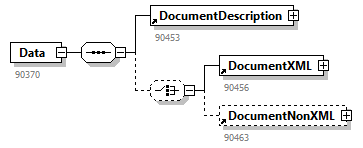

element Data
diagram GenericXmlDocument_20244_p26.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of DataType
properties
content  complex
children DocumentDescriptionDocumentXMLDocumentNonXML
used by
element  Form
annotation
documentation
90370
source <xs:element name="Data">
  <xs:annotation>
    <xs:documentation>90370</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DataType">
        <xs:sequence>
          <xs:element ref="DocumentDescription"/>
          <xs:choice minOccurs="0">
            <xs:element ref="DocumentXML"/>
            <xs:element ref="DocumentNonXML" minOccurs="0"/>
          </xs:choice>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element Date
diagram GenericXmlDocument_20244_p27.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  MandateCriteriaType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01116
source <xs:element name="Date">
  <xs:annotation>
    <xs:documentation>01116</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DateSubmission
diagram GenericXmlDocument_20244_p28.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  OriginSendingDataType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00805
source <xs:element name="DateSubmission">
  <xs:annotation>
    <xs:documentation>00805</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Denomination
diagram GenericXmlDocument_20244_p29.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeDocumentTitleTypeSenderType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00776
source <xs:element name="Denomination">
  <xs:annotation>
    <xs:documentation>00776</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

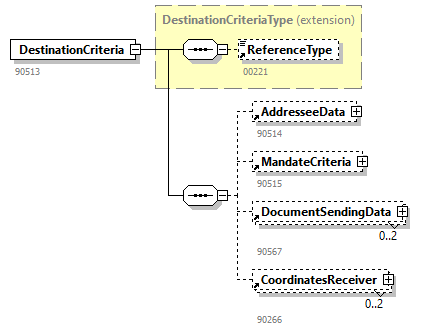

element DestinationCriteria
diagram GenericXmlDocument_20244_p30.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of DestinationCriteriaType
properties
content  complex
children ReferenceTypeAddresseeDataMandateCriteriaDocumentSendingDataCoordinatesReceiver
used by
element  DestinationData
annotation
documentation
90513
source <xs:element name="DestinationCriteria">
  <xs:annotation>
    <xs:documentation>90513</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DestinationCriteriaType">
        <xs:sequence>
          <xs:element ref="AddresseeData" minOccurs="0"/>

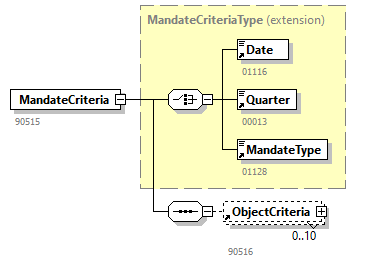

          <xs:element ref="MandateCriteria" minOccurs="0"/>
          <xs:element ref="DocumentSendingData" minOccurs="0" maxOccurs="2"/>
          <xs:element ref="CoordinatesReceiver" minOccurs="0" maxOccurs="2"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

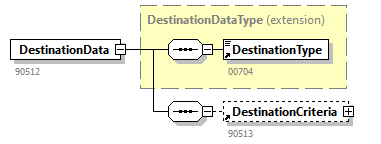

element DestinationData
diagram GenericXmlDocument_20244_p31.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of DestinationDataType
properties
content  complex
children DestinationTypeDestinationCriteria
used by
element  Form
annotation
documentation
90512
source <xs:element name="DestinationData">
  <xs:annotation>
    <xs:documentation>90512</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DestinationDataType">
        <xs:sequence>
          <xs:element ref="DestinationCriteria" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element DestinationType
diagram GenericXmlDocument_20244_p32.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  DestinationDataType
facets
Kind  Value  Annotation
maxLength  40
enumeration  DESTHA
enumeration  DESTHAFOREMPLOYER
enumeration  SUIVIFOREMPLOYER
enumeration  ORIGINSENDINGDATA
enumeration  SUIVI
enumeration  CONTRACTUALRELATIONSHIPREGISTRY
enumeration  ENTREPRISE
enumeration  CLC
enumeration  SMALS
enumeration  DOCUMENTSENDINGDATA
annotation
documentation
00704
source <xs:element name="DestinationType">
  <xs:annotation>
    <xs:documentation>00704</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
      <xs:enumeration value="DESTHA"/>
      <xs:enumeration value="DESTHAFOREMPLOYER"/>
      <xs:enumeration value="SUIVIFOREMPLOYER"/>
      <xs:enumeration value="ORIGINSENDINGDATA"/>
      <xs:enumeration value="SUIVI"/>
      <xs:enumeration value="CONTRACTUALRELATIONSHIPREGISTRY"/>
      <xs:enumeration value="ENTREPRISE"/>
      <xs:enumeration value="CLC"/>
      <xs:enumeration value="SMALS"/>
      <xs:enumeration value="DOCUMENTSENDINGDATA"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DocumentBase64
diagram GenericXmlDocument_20244_p33.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:base64Binary
properties
content  simple
used by
complexType  DocumentNonXMLType
annotation
documentation
01059
source <xs:element name="DocumentBase64">
  <xs:annotation>
    <xs:documentation>01059</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:base64Binary"/>
  </xs:simpleType>
</xs:element>

element DocumentData
diagram GenericXmlDocument_20244_p34.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of DocumentDataType
properties
content  complex
children DocumentDateDocumentReferenceINSSCompanyIDDocumentTitle
used by
element  Form
annotation
documentation
90485
source <xs:element name="DocumentData">
  <xs:annotation>
    <xs:documentation>90485</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DocumentDataType">
        <xs:sequence>
          <xs:element ref="DocumentTitle" minOccurs="0" maxOccurs="5"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element DocumentDate
diagram GenericXmlDocument_20244_p35.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  DocumentDataType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01086
source <xs:element name="DocumentDate">
  <xs:annotation>
    <xs:documentation>01086</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DocumentDescription
diagram GenericXmlDocument_20244_p36.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of DocumentDescriptionType
properties
content  complex
children TechnicalDescriptionBusinessDescription
used by
element  Data
annotation
documentation
90453
source <xs:element name="DocumentDescription">
  <xs:annotation>
    <xs:documentation>90453</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DocumentDescriptionType">
        <xs:sequence>
          <xs:element ref="TechnicalDescription"/>
          <xs:element ref="BusinessDescription" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element DocumentNonXML
diagram GenericXmlDocument_20244_p37.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type DocumentNonXMLType
properties
content  complex
children DocumentBase64
used by
element  Data
annotation
documentation
90463
source <xs:element name="DocumentNonXML" type="DocumentNonXMLType">
  <xs:annotation>
    <xs:documentation>90463</xs:documentation>
  </xs:annotation>
</xs:element>

element DocumentReference
diagram GenericXmlDocument_20244_p38.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  DocumentDataType
facets
Kind  Value  Annotation
maxLength  64
annotation
documentation
01087
source <xs:element name="DocumentReference">
  <xs:annotation>
    <xs:documentation>01087</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

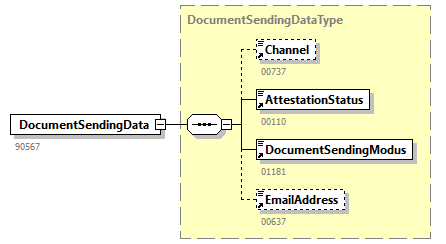

element DocumentSendingData
diagram GenericXmlDocument_20244_p39.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type DocumentSendingDataType
properties
content  complex
children ChannelAttestationStatusDocumentSendingModusEmailAddress
used by
element  DestinationCriteria
annotation
documentation
90567
source <xs:element name="DocumentSendingData" type="DocumentSendingDataType">
  <xs:annotation>
    <xs:documentation>90567</xs:documentation>
  </xs:annotation>
</xs:element>

element DocumentSendingModus
diagram GenericXmlDocument_20244_p40.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  DocumentSendingDataType
facets
Kind  Value  Annotation
maxLength  10
enumeration  NORMAL
enumeration  REGISTERED
annotation
documentation
01181
source <xs:element name="DocumentSendingModus">
  <xs:annotation>
    <xs:documentation>01181</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
      <xs:enumeration value="NORMAL"/>
      <xs:enumeration value="REGISTERED"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

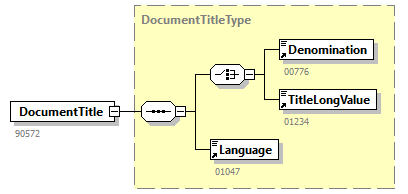

element DocumentTitle
diagram GenericXmlDocument_20244_p41.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type DocumentTitleType
properties
content  complex
children DenominationTitleLongValueLanguage
used by
element  DocumentData
annotation
documentation
90572
source <xs:element name="DocumentTitle" type="DocumentTitleType">
  <xs:annotation>
    <xs:documentation>90572</xs:documentation>
  </xs:annotation>
</xs:element>

element DocumentType
diagram GenericXmlDocument_20244_p42.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  TechnicalDescriptionType
facets
Kind  Value  Annotation
maxLength  10
enumeration  MAIN
enumeration  ATTACHMENT
annotation
documentation
01164
source <xs:element name="DocumentType">
  <xs:annotation>
    <xs:documentation>01164</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
      <xs:enumeration value="MAIN"/>
      <xs:enumeration value="ATTACHMENT"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DocumentXML
diagram GenericXmlDocument_20244_p43.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
properties
content  complex
used by
element  Data
annotation
documentation
90456
source <xs:element name="DocumentXML">
  <xs:annotation>
    <xs:documentation>90456</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:any namespace="##any"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DueDate
diagram GenericXmlDocument_20244_p44.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  CaseStatusDataType
facets
Kind  Value  Annotation
minInclusive  2015-10-15
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
01024
source <xs:element name="DueDate">
  <xs:annotation>
    <xs:documentation>01024</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:minInclusive value="2015-10-15"/>
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmailAddress
diagram GenericXmlDocument_20244_p45.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  DocumentSendingDataType
facets
Kind  Value  Annotation
maxLength  60
annotation
documentation
00637
source <xs:element name="EmailAddress">
  <xs:annotation>
    <xs:documentation>00637</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="60"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerCity
diagram GenericXmlDocument_20244_p46.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  40
annotation
documentation
00162
source <xs:element name="EmployerCity">
  <xs:annotation>
    <xs:documentation>00162</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerCountry
diagram GenericXmlDocument_20244_p47.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999
totalDigits  5
annotation
documentation
00163
source <xs:element name="EmployerCountry">
  <xs:annotation>
    <xs:documentation>00163</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999"/>
      <xs:totalDigits value="5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerDenomination
diagram GenericXmlDocument_20244_p48.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  96
annotation
documentation
00157
source <xs:element name="EmployerDenomination">
  <xs:annotation>
    <xs:documentation>00157</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="96"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerHouseNbr
diagram GenericXmlDocument_20244_p49.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  10
annotation
documentation
00159
source <xs:element name="EmployerHouseNbr">
  <xs:annotation>
    <xs:documentation>00159</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

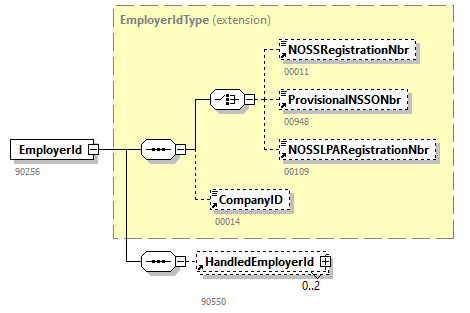

element EmployerId
diagram GenericXmlDocument_20244_p50.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of EmployerIdType
properties
content  complex
children NOSSRegistrationNbrProvisionalNSSONbrNOSSLPARegistrationNbrCompanyIDHandledEmployerId
used by
element  ReferenceData
annotation
documentation
90256
source <xs:element name="EmployerId">
  <xs:annotation>
    <xs:documentation>90256</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="EmployerIdType">
        <xs:sequence>
          <xs:element ref="HandledEmployerId" minOccurs="0" maxOccurs="2"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element EmployerPostBox
diagram GenericXmlDocument_20244_p51.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00160
source <xs:element name="EmployerPostBox">
  <xs:annotation>
    <xs:documentation>00160</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerStreet
diagram GenericXmlDocument_20244_p52.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  35
annotation
documentation
00158
source <xs:element name="EmployerStreet">
  <xs:annotation>
    <xs:documentation>00158</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="35"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EmployerZIPCode
diagram GenericXmlDocument_20244_p53.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  9
annotation
documentation
00161
source <xs:element name="EmployerZIPCode">
  <xs:annotation>
    <xs:documentation>00161</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FileName
diagram GenericXmlDocument_20244_p54.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  FileReferenceTypeTechnicalDescriptionType
facets
Kind  Value  Annotation
minLength  1
maxLength  64
annotation
documentation
00106
source <xs:element name="FileName">
  <xs:annotation>
    <xs:documentation>00106</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FileReceptionInformation
diagram GenericXmlDocument_20244_p55.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type FileReceptionInformationType
properties
content  complex
children ReceptionDateReceptionHourChannel
used by
element  HandledOriginalFile
annotation
documentation
90390
source <xs:element name="FileReceptionInformation" type="FileReceptionInformationType">
  <xs:annotation>
    <xs:documentation>90390</xs:documentation>
  </xs:annotation>
</xs:element>

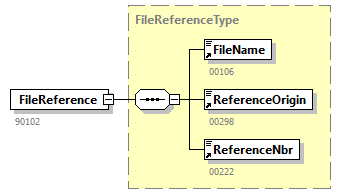

element FileReference
diagram GenericXmlDocument_20244_p56.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type FileReferenceType
properties
content  complex
children FileNameReferenceOriginReferenceNbr
used by
element  HandledOriginalFile
annotation
documentation
90102
source <xs:element name="FileReference" type="FileReferenceType">
  <xs:annotation>
    <xs:documentation>90102</xs:documentation>
  </xs:annotation>
</xs:element>

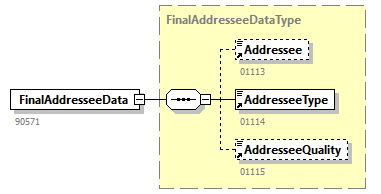

element FinalAddresseeData
diagram GenericXmlDocument_20244_p57.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type FinalAddresseeDataType
properties
content  complex
children AddresseeAddresseeTypeAddresseeQuality
used by
element  Form
annotation
documentation
90571
source <xs:element name="FinalAddresseeData" type="FinalAddresseeDataType">
  <xs:annotation>
    <xs:documentation>90571</xs:documentation>
  </xs:annotation>
</xs:element>

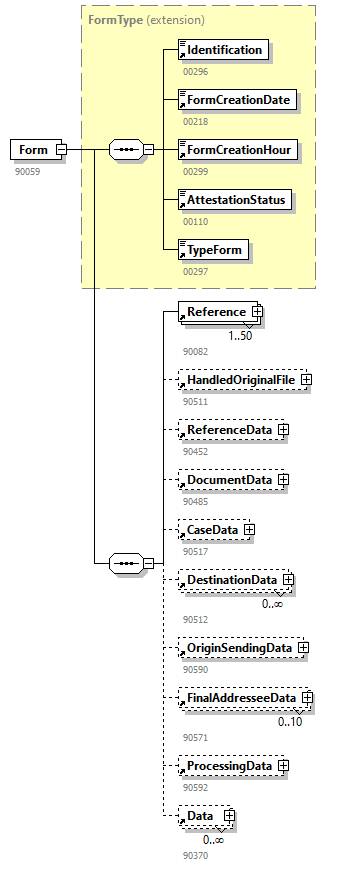

element Form
diagram GenericXmlDocument_20244_p58.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of FormType
properties
content  complex
children IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormReferenceHandledOriginalFileReferenceDataDocumentDataCaseDataDestinationDataOriginSendingDataFinalAddresseeDataProcessingDataData
used by
element  GenericXmlDocument
annotation
documentation
90059
source <xs:element name="Form">
  <xs:annotation>
    <xs:documentation>90059</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FormType">
        <xs:sequence>
          <xs:element ref="Reference" maxOccurs="50"/>
          <xs:element ref="HandledOriginalFile" minOccurs="0"/>
          <xs:element ref="ReferenceData" minOccurs="0"/>
          <xs:element ref="DocumentData" minOccurs="0"/>
          <xs:element ref="CaseData" minOccurs="0"/>
          <xs:element ref="DestinationData" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element ref="OriginSendingData" minOccurs="0"/>
          <xs:element ref="FinalAddresseeData" minOccurs="0" maxOccurs="10"/>
          <xs:element ref="ProcessingData" minOccurs="0"/>
          <xs:element ref="Data" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element FormCreationDate
diagram GenericXmlDocument_20244_p59.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00218
appinfo
Date_conversion1
source <xs:element name="FormCreationDate">
  <xs:annotation>
    <xs:documentation>00218</xs:documentation>
    <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FormCreationHour
diagram GenericXmlDocument_20244_p60.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:time
properties
content  simple
used by
complexType  FormType
facets
Kind  Value  Annotation
pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation
documentation
00299
appinfo
Time_conversion1
source <xs:element name="FormCreationHour">
  <xs:annotation>
    <xs:documentation>00299</xs:documentation>
    <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:time">
      <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FormSequenceNbr
diagram GenericXmlDocument_20244_p61.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexType  ReferenceDataType
facets
Kind  Value  Annotation
totalDigits  8
annotation
documentation
00220
source <xs:element name="FormSequenceNbr">
  <xs:annotation>
    <xs:documentation>00220</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="8"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element GenericXmlDocument
diagram GenericXmlDocument_20244_p62.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
properties
content  complex
children Form
annotation
documentation
90371
source <xs:element name="GenericXmlDocument">
  <xs:annotation>
    <xs:documentation>90371</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Form" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element GroupName
diagram GenericXmlDocument_20244_p63.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  ReferenceDataType
facets
Kind  Value  Annotation
maxLength  20
pattern  ([\-_a-zA-Z0-9])*
annotation
documentation
01159
source <xs:element name="GroupName">
  <xs:annotation>
    <xs:documentation>01159</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
      <xs:pattern value="([\-_a-zA-Z0-9])*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element GroupType
diagram GenericXmlDocument_20244_p64.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  SubGroupCriteriaType
facets
Kind  Value  Annotation
maxLength  20
pattern  ([\-_a-zA-Z0-9])*
annotation
documentation
01091
source <xs:element name="GroupType">
  <xs:annotation>
    <xs:documentation>01091</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
      <xs:pattern value="([\-_a-zA-Z0-9])*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element HandledEmployerId
diagram GenericXmlDocument_20244_p65.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type HandledEmployerIdType
properties
content  complex
children EmployerDenominationEmployerStreetEmployerHouseNbrEmployerPostBoxEmployerZIPCodeEmployerCityEmployerCountryImportanceCodeLegalFormLanguage
used by
element  EmployerId
annotation
documentation
90550
source <xs:element name="HandledEmployerId" type="HandledEmployerIdType">
  <xs:annotation>
    <xs:documentation>90550</xs:documentation>
  </xs:annotation>
</xs:element>

element HandledOriginalFile
diagram GenericXmlDocument_20244_p66.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of HandledOriginalFileType
properties
content  complex
children SenderIdHandledSenderIdentificationFileReferenceFileReceptionInformation
used by
element  Form
annotation
documentation
90511
source <xs:element name="HandledOriginalFile">
  <xs:annotation>
    <xs:documentation>90511</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="HandledOriginalFileType">
        <xs:sequence>
          <xs:element ref="HandledSenderIdentification" minOccurs="0"/>
          <xs:element ref="FileReference"/>
          <xs:element ref="FileReceptionInformation"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element HandledSenderIdentification
diagram GenericXmlDocument_20244_p67.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of HandledSenderIdentificationType
properties
content  complex
children CompanyIDNOSSRegistrationNbrNOSSLPARegistrationNbrProvisionalNSSONbrSocialSecretariatNumberINSSSender
used by
element  HandledOriginalFile
annotation
documentation
90560
source <xs:element name="HandledSenderIdentification">
  <xs:annotation>
    <xs:documentation>90560</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="HandledSenderIdentificationType">
        <xs:sequence>
          <xs:element ref="Sender" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element HouseNbr
diagram GenericXmlDocument_20244_p68.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeSenderType
facets
Kind  Value  Annotation
maxLength  10
annotation
documentation
00518
source <xs:element name="HouseNbr">
  <xs:annotation>
    <xs:documentation>00518</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Identification
diagram GenericXmlDocument_20244_p69.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  AddresseeDataTypeFormType
facets
Kind  Value  Annotation
maxLength  7
annotation
documentation
00296
source <xs:element name="Identification">
  <xs:annotation>
    <xs:documentation>00296</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="7"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ImportanceCode
diagram GenericXmlDocument_20244_p70.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  9
totalDigits  1
annotation
documentation
00164
source <xs:element name="ImportanceCode">
  <xs:annotation>
    <xs:documentation>00164</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="9"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IndexId
diagram GenericXmlDocument_20244_p71.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  SpecificIndexCriteriaType
facets
Kind  Value  Annotation
maxLength  28
annotation
documentation
01124
source <xs:element name="IndexId">
  <xs:annotation>
    <xs:documentation>01124</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="28"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IndexValue
diagram GenericXmlDocument_20244_p72.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  SpecificIndexCriteriaType
facets
Kind  Value  Annotation
minLength  3
maxLength  10
annotation
documentation
01125
source <xs:element name="IndexValue">
  <xs:annotation>
    <xs:documentation>01125</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="3"/>
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element INSS
diagram GenericXmlDocument_20244_p73.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  DocumentDataTypeHandledSenderIdentificationTypeNaturalPersonIdTypeReferenceDataType
facets
Kind  Value  Annotation
totalDigits  11
pattern  [0]|\d{11}
annotation
documentation
00024
appinfo
Inss_conversion1
appinfo
xs:inss
source <xs:element name="INSS">
  <xs:annotation>
    <xs:documentation>00024</xs:documentation>
    <xs:appinfo source="ConversionID">Inss_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:inss</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="11"/>
      <xs:pattern value="[0]|\d{11}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IntegrityCheck
diagram GenericXmlDocument_20244_p74.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type IntegrityCheckType
properties
content  complex
children IntegrityMethodValue
used by
element  TechnicalDescription
annotation
documentation
90455
source <xs:element name="IntegrityCheck" type="IntegrityCheckType">
  <xs:annotation>
    <xs:documentation>90455</xs:documentation>
  </xs:annotation>
</xs:element>

element IntegrityMethod
diagram GenericXmlDocument_20244_p75.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  IntegrityCheckType
facets
Kind  Value  Annotation
maxLength  30
enumeration  SHA-256
enumeration  SHA-512
enumeration  MD5
annotation
documentation
01048
source <xs:element name="IntegrityMethod">
  <xs:annotation>
    <xs:documentation>01048</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="30"/>
      <xs:enumeration value="SHA-256"/>
      <xs:enumeration value="SHA-512"/>
      <xs:enumeration value="MD5"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element IsLastForm
diagram GenericXmlDocument_20244_p76.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:boolean
properties
content  simple
used by
complexType  ReferenceDataType
annotation
documentation
01147
source <xs:element name="IsLastForm">
  <xs:annotation>
    <xs:documentation>01147</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element Language
diagram GenericXmlDocument_20244_p77.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeDocumentTitleTypeHandledEmployerIdTypeSenderTypeTechnicalDescriptionType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  5
totalDigits  1
annotation
documentation
01047
source <xs:element name="Language">
  <xs:annotation>
    <xs:documentation>01047</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="5"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element LegalForm
diagram GenericXmlDocument_20244_p78.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  HandledEmployerIdType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
00219
source <xs:element name="LegalForm">
  <xs:annotation>
    <xs:documentation>00219</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element MandateCriteria
diagram GenericXmlDocument_20244_p79.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of MandateCriteriaType
properties
content  complex
children DateQuarterMandateTypeObjectCriteria
used by
element  DestinationCriteria
annotation
documentation
90515
source <xs:element name="MandateCriteria">
  <xs:annotation>
    <xs:documentation>90515</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="MandateCriteriaType">
        <xs:sequence>
          <xs:element ref="ObjectCriteria" minOccurs="0" maxOccurs="10"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element MandateType
diagram GenericXmlDocument_20244_p80.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  MandateCriteriaType
facets
Kind  Value  Annotation
maxLength  32
enumeration  ReferenceData
annotation
documentation
01128
source <xs:element name="MandateType">
  <xs:annotation>
    <xs:documentation>01128</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="32"/>
      <xs:enumeration value="ReferenceData"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element MimeType
diagram GenericXmlDocument_20244_p81.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  TechnicalDescriptionType
facets
Kind  Value  Annotation
maxLength  255
enumeration  application/pdf
enumeration  application/xml
enumeration  application/msword
enumeration  application/vnd.openxmlformats-officedocument.wordprocessingml.document
enumeration  application/vnd.ms-excel
enumeration  application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
enumeration  application/zip
enumeration  image/jpeg
enumeration  image/tiff
enumeration  text/plain
enumeration  application
enumeration  application/vnd.oasis.opendocument.text
annotation
documentation
01044
source <xs:element name="MimeType">
  <xs:annotation>
    <xs:documentation>01044</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="255"/>
      <xs:enumeration value="application/pdf"/>
      <xs:enumeration value="application/xml"/>
      <xs:enumeration value="application/msword"/>
      <xs:enumeration value="application/vnd.openxmlformats-officedocument.wordprocessingml.document"/>
      <xs:enumeration value="application/vnd.ms-excel"/>
      <xs:enumeration value="application/vnd.openxmlformats-officedocument.spreadsheetml.sheet"/>
      <xs:enumeration value="application/zip"/>
      <xs:enumeration value="image/jpeg"/>
      <xs:enumeration value="image/tiff"/>
      <xs:enumeration value="text/plain"/>
      <xs:enumeration value="application"/>
      <xs:enumeration value="application/vnd.oasis.opendocument.text"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NaturalPersonId
diagram GenericXmlDocument_20244_p82.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type NaturalPersonIdType
properties
content  complex
children INSS
used by
element  OtherConcernedEntity
annotation
documentation
90618
source <xs:element name="NaturalPersonId" type="NaturalPersonIdType">
  <xs:annotation>
    <xs:documentation>90618</xs:documentation>
  </xs:annotation>
</xs:element>

element NOSSLPARegistrationNbr
diagram GenericXmlDocument_20244_p83.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  EmployerIdTypeHandledSenderIdentificationType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  99999926
totalDigits  8
annotation
documentation
00109
appinfo
NossAPL_conversion1
appinfo
xs:nossLpaRegistrationNbr
source <xs:element name="NOSSLPARegistrationNbr">
  <xs:annotation>
    <xs:documentation>00109</xs:documentation>
    <xs:appinfo source="ConversionID">NossAPL_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:nossLpaRegistrationNbr</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="99999926"/>
      <xs:totalDigits value="8"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NOSSRegistrationNbr
diagram GenericXmlDocument_20244_p84.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  EmployerIdTypeHandledSenderIdentificationType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  199999934
totalDigits  9
annotation
documentation
00011
appinfo
Noss_conversion1
appinfo
xs:nossRegistrationNbr
source <xs:element name="NOSSRegistrationNbr">
  <xs:annotation>
    <xs:documentation>00011</xs:documentation>
    <xs:appinfo source="ConversionID">Noss_conversion1</xs:appinfo>
    <xs:appinfo source="TDOType">xs:nossRegistrationNbr</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="199999934"/>
      <xs:totalDigits value="9"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element NSSOService
diagram GenericXmlDocument_20244_p85.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  CaseDataType
facets
Kind  Value  Annotation
maxLength  5
enumeration  INNI
enumeration  REJU
enumeration  RIPAD
annotation
documentation
01119
source <xs:element name="NSSOService">
  <xs:annotation>
    <xs:documentation>01119</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="5"/>
      <xs:enumeration value="INNI"/>
      <xs:enumeration value="REJU"/>
      <xs:enumeration value="RIPAD"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Object
diagram GenericXmlDocument_20244_p86.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  ObjectCriteriaType
facets
Kind  Value  Annotation
maxLength  20
annotation
documentation
01117
source <xs:element name="Object">
  <xs:annotation>
    <xs:documentation>01117</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ObjectCriteria
diagram GenericXmlDocument_20244_p87.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type ObjectCriteriaType
properties
content  complex
children ObjectObjectType
used by
element  MandateCriteria
annotation
documentation
90516
source <xs:element name="ObjectCriteria" type="ObjectCriteriaType">
  <xs:annotation>
    <xs:documentation>90516</xs:documentation>
  </xs:annotation>
</xs:element>

element ObjectType
diagram GenericXmlDocument_20244_p88.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  ObjectCriteriaType
facets
Kind  Value  Annotation
maxLength  20
enumeration  SECTOR
enumeration  GROUP
enumeration  APPLICATION
annotation
documentation
01118
source <xs:element name="ObjectType">
  <xs:annotation>
    <xs:documentation>01118</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
      <xs:enumeration value="SECTOR"/>
      <xs:enumeration value="GROUP"/>
      <xs:enumeration value="APPLICATION"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element OriginSendingData
diagram GenericXmlDocument_20244_p89.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type OriginSendingDataType
properties
content  complex
children AddresseeAddresseeTypeAddresseeQualityDateSubmission
used by
element  Form
annotation
documentation
90590
source <xs:element name="OriginSendingData" type="OriginSendingDataType">
  <xs:annotation>
    <xs:documentation>90590</xs:documentation>
  </xs:annotation>
</xs:element>

element OtherConcernedEntity
diagram GenericXmlDocument_20244_p90.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of OtherConcernedEntityType
properties
content  complex
children NaturalPersonId
used by
element  ReferenceData
annotation
documentation
90617
source <xs:element name="OtherConcernedEntity">
  <xs:annotation>
    <xs:documentation>90617</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="OtherConcernedEntityType">
        <xs:choice>
          <xs:element ref="NaturalPersonId"/>
        </xs:choice>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element OutputChannel
diagram GenericXmlDocument_20244_p91.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  SubGroupCriteriaType
facets
Kind  Value  Annotation
maxLength  10
enumeration  BATCH
enumeration  PRINT
annotation
documentation
00693
source <xs:element name="OutputChannel">
  <xs:annotation>
    <xs:documentation>00693</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
      <xs:enumeration value="BATCH"/>
      <xs:enumeration value="PRINT"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PostBox
diagram GenericXmlDocument_20244_p92.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  CoordinatesReceiverTypeSenderType
facets
Kind  Value  Annotation
maxLength  4
annotation
documentation
00519
source <xs:element name="PostBox">
  <xs:annotation>
    <xs:documentation>00519</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProcessingData
diagram GenericXmlDocument_20244_p93.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of ProcessingDataType
properties
content  complex
children ProcessingKeyValue
used by
element  Form
annotation
documentation
90592
source <xs:element name="ProcessingData">
  <xs:annotation>
    <xs:documentation>90592</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ProcessingDataType">
        <xs:sequence>
          <xs:element ref="ProcessingKeyValue" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ProcessingKey
diagram GenericXmlDocument_20244_p94.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  ProcessingKeyValueType
facets
Kind  Value  Annotation
maxLength  50
annotation
documentation
01227
source <xs:element name="ProcessingKey">
  <xs:annotation>
    <xs:documentation>01227</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="50"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProcessingKeyValue
diagram GenericXmlDocument_20244_p95.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type ProcessingKeyValueType
properties
content  complex
children ProcessingKeyProcessingValue
used by
element  ProcessingData
annotation
documentation
90593
source <xs:element name="ProcessingKeyValue" type="ProcessingKeyValueType">
  <xs:annotation>
    <xs:documentation>90593</xs:documentation>
  </xs:annotation>
</xs:element>

element ProcessingValue
diagram GenericXmlDocument_20244_p96.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  ProcessingKeyValueType
facets
Kind  Value  Annotation
maxLength  200
annotation
documentation
01228
source <xs:element name="ProcessingValue">
  <xs:annotation>
    <xs:documentation>01228</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="200"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProcessType
diagram GenericXmlDocument_20244_p97.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexType  CaseDataType
facets
Kind  Value  Annotation
maxLength  14
enumeration  SUBMITDOCUMENT
enumeration  SUBMITCASEID
enumeration  SUBMITARCHIVE
annotation
documentation
01184
source <xs:element name="ProcessType">
  <xs:annotation>
    <xs:documentation>01184</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="14"/>
      <xs:enumeration value="SUBMITDOCUMENT"/>
      <xs:enumeration value="SUBMITCASEID"/>
      <xs:enumeration value="SUBMITARCHIVE"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProvisionalNSSONbr
diagram GenericXmlDocument_20244_p98.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  EmployerIdTypeHandledSenderIdentificationType
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  5999999989
totalDigits  10
annotation
documentation
00948
source <xs:element name="ProvisionalNSSONbr">
  <xs:annotation>
    <xs:documentation>00948</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="5999999989"/>
      <xs:totalDigits value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Quarter
diagram GenericXmlDocument_20244_p99.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  MandateCriteriaTypeReferenceDataType
facets
Kind  Value  Annotation
totalDigits  5
pattern  \d{4}(1|2|3|4)
annotation
documentation
00013
appinfo
xs:yearQuarter
source <xs:element name="Quarter">
  <xs:annotation>
    <xs:documentation>00013</xs:documentation>
    <xs:appinfo source="TDOType">xs:yearQuarter</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:totalDigits value="5"/>
      <xs:pattern value="\d{4}(1|2|3|4)"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReceptionDate
diagram GenericXmlDocument_20244_p100.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:date
properties
content  simple
used by
complexType  FileReceptionInformationType
facets
Kind  Value  Annotation
pattern  \d{4}-\d{2}-\d{2}
annotation
documentation
00898
source <xs:element name="ReceptionDate">
  <xs:annotation>
    <xs:documentation>00898</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:date">
      <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReceptionHour
diagram GenericXmlDocument_20244_p101.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:time
properties
content  simple
used by
complexType  FileReceptionInformationType
facets
Kind  Value  Annotation
pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation
documentation
00935
source <xs:element name="ReceptionHour">
  <xs:annotation>
    <xs:documentation>00935</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:time">
      <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Reference
diagram GenericXmlDocument_20244_p102.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type ReferenceType
properties
content  complex
children ReferenceTypeReferenceOriginReferenceNbr
used by
element  Form
annotation
documentation
90082
source <xs:element name="Reference" type="ReferenceType">
  <xs:annotation>
    <xs:documentation>90082</xs:documentation>
  </xs:annotation>
</xs:element>

element ReferenceData
diagram GenericXmlDocument_20244_p103.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type extension of ReferenceDataType
properties
content  complex
children INSSQuarterGroupNameFormSequenceNbrIsLastFormSubGroupCriteriaEmployerIdOtherConcernedEntity
used by
element  Form
annotation
documentation
90452
source <xs:element name="ReferenceData">
  <xs:annotation>
    <xs:documentation>90452</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ReferenceDataType">
        <xs:sequence>
          <xs:element ref="SubGroupCriteria" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element ref="EmployerId" minOccurs="0" maxOccurs="2"/>
          <xs:element ref="OtherConcernedEntity" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ReferenceNbr
diagram GenericXmlDocument_20244_p104.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:string
properties
content  simple
used by
complexTypes  CaseReferenceDataTypeFileReferenceTypeReferenceType
facets
Kind  Value  Annotation
minLength  1
maxLength  64
annotation
documentation
00222
appinfo
TicketNumber_conversion1
source <xs:element name="ReferenceNbr">
  <xs:annotation>
    <xs:documentation>00222</xs:documentation>
    <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceOrigin
diagram GenericXmlDocument_20244_p105.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of xs:integer
properties
content  simple
used by
complexTypes  FileReferenceTypeReferenceType
facets
Kind  Value  Annotation
minInclusive  1
maxInclusive  8
totalDigits  1
annotation
documentation
00298
source <xs:element name="ReferenceOrigin">
  <xs:annotation>
    <xs:documentation>00298</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="8"/>
      <xs:totalDigits value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ReferenceType
diagram GenericXmlDocument_20244_p106.png
namespace http://www.smals-mvm.be/xml/ns/systemFlux
type restriction of
