Schema CareerHistory_20244.xsd

ROOT ELEMENT:	CareerHistory
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types
AdditionalScaleSalaryAmount	AdditionalScaleSalaryHDType
AdditionalScaleSalaryBasisAmount	AttestationPropertiesType
AdditionalScaleSalaryEndDate	CareerHistoryElementType
AdditionalScaleSalaryHD	CareerHistoryEmployerDeclarationType
AdditionalScaleSalaryPercentage	CareerHistoryEmployerIdType
AdditionalScaleSalaryReference	CommunicationType
AdditionalScaleSalarySequenceNbr	ContactCoordinatesDetailsType
AdditionalScaleSalaryStartDate	CoordinatesContactPersonType
AddressDetails	DegreeType
AssignmentType	EmployerIdType
AttestationProperties	FormType
AttestationStatus	HistoricalAttestationInformationType
BasicMeanWorkingHours	NaturalPersonType
BelgianDegree	NonSituableAbsenceType
CalendarYear	ReferenceType
CareerElementEndDate	ScaleSalaryHDType
CareerElementSequenceNbr
CareerElementStartDate
CareerHistory
CareerHistoryElement
CareerHistoryEmployerDeclaration
CareerHistoryEmployerId
CareerNature
Communication
CompanyID
ContactCoordinatesDetails
ContractType
CoordinatesContactPerson
DaysNbr
Degree
DegreeDenomination
DegreeGrantingDate
Denomination
EducationType
EmailAddress
EmployerDescription
EmployerId
EmployerSequenceNbr
FaxNbr
FirstName
FlyingStaffClass
Form
FormCreationDate
FormCreationHour
FunctionNature
GradeOrFunction
GrantAidedSchool
GSMNbr
HistoricalAttestationInformation
HistoricalAttestationType
Identification
INSS
IsCompleted
MeanWorkingHours
Name
NaturalPerson
NbrHoursOrServices
NonSituableAbsence
NonSituableAbsenceCode
NOSSLPARegistrationNbr
NOSSRegistrationNbr
PecuniarySeniorityStartDate
PhoneNbr
PSEmploymentRelationshipNature
PSPSEmployerNbr
PublicSectorInstitutionType
PublicSectorPersonnelCategory
Reference
ReferenceNbr
ReferenceOrigin
ReferenceType
RefMeanWorkingHours
ReorganisationMeasure
SalaryScaleReference
ScaleSalaryAmount
ScaleSalaryEndDate
ScaleSalaryHD
ScaleSalarySequenceNbr
ScaleSalaryStartDate
ScaleSalaryWeekHoursNbr
StatutoryRelationEndReason
StudiesDuration
TempOrShortFixedContract
TenthOrTwelfth
TypeForm
WeekHoursNbr
WorkerFirstName
WorkerName

element AdditionalScaleSalaryAmount

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999999999 totalDigits  11
annotation	documentation 00983
source	<xs:element name="AdditionalScaleSalaryAmount">   <xs:annotation>     <xs:documentation>00983</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999999999"/>       <xs:totalDigits value="11"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryBasisAmount

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999999999 totalDigits  11
annotation	documentation 00980
source	<xs:element name="AdditionalScaleSalaryBasisAmount">   <xs:annotation>     <xs:documentation>00980</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999999999"/>       <xs:totalDigits value="11"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryEndDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00979
source	<xs:element name="AdditionalScaleSalaryEndDate">   <xs:annotation>     <xs:documentation>00979</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

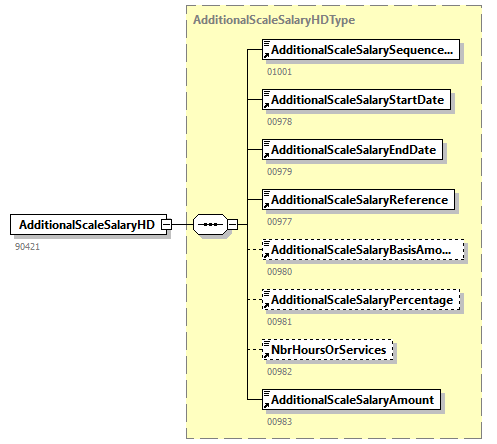

element AdditionalScaleSalaryHD

diagram
type	AdditionalScaleSalaryHDType
properties	content  complex

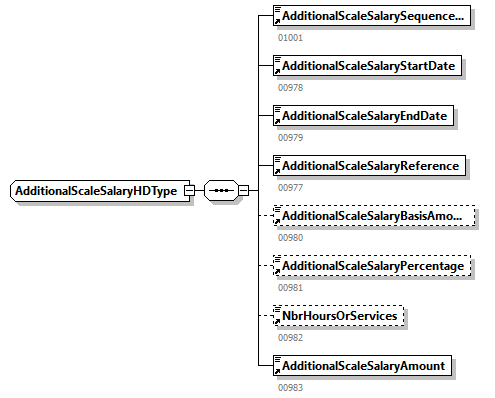

children	AdditionalScaleSalarySequenceNbrAdditionalScaleSalaryStartDateAdditionalScaleSalaryEndDateAdditionalScaleSalaryReferenceAdditionalScaleSalaryBasisAmountAdditionalScaleSalaryPercentageNbrHoursOrServicesAdditionalScaleSalaryAmount
used by	element  ScaleSalaryHD
annotation	documentation 90421
source	<xs:element name="AdditionalScaleSalaryHD" type="AdditionalScaleSalaryHDType">   <xs:annotation>     <xs:documentation>90421</xs:documentation>   </xs:annotation> </xs:element>

element AdditionalScaleSalaryPercentage

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999 totalDigits  5
annotation	documentation 00981
source	<xs:element name="AdditionalScaleSalaryPercentage">   <xs:annotation>     <xs:documentation>00981</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryReference

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999999999999 totalDigits  12
annotation	documentation 00977
source	<xs:element name="AdditionalScaleSalaryReference">   <xs:annotation>     <xs:documentation>00977</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="999999999999"/>       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalarySequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 01001
source	<xs:element name="AdditionalScaleSalarySequenceNbr">   <xs:annotation>     <xs:documentation>01001</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AdditionalScaleSalaryStartDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00978
source	<xs:element name="AdditionalScaleSalaryStartDate">   <xs:annotation>     <xs:documentation>00978</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AddressDetails

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  ContactCoordinatesDetailsType
facets	Kind  Value  Annotation maxLength  200
annotation	documentation 00925
source	<xs:element name="AddressDetails">   <xs:annotation>     <xs:documentation>00925</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="200"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AssignmentType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00967
source	<xs:element name="AssignmentType">   <xs:annotation>     <xs:documentation>00967</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AttestationProperties

diagram
type	AttestationPropertiesType
properties	content  complex
children	IsCompleted
used by	element  Form
annotation	documentation 90415
source	<xs:element name="AttestationProperties" type="AttestationPropertiesType">   <xs:annotation>     <xs:documentation>90415</xs:documentation>   </xs:annotation> </xs:element>

element AttestationStatus

diagram
type	restriction of xs:integer
properties	content  simple

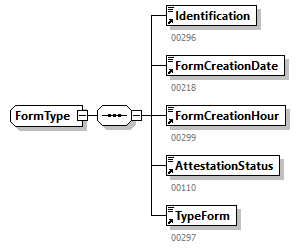

used by	complexType  FormType
facets	Kind  Value  Annotation totalDigits  1 enumeration  0
annotation	documentation 00110
source	<xs:element name="AttestationStatus">   <xs:annotation>     <xs:documentation>00110</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BasicMeanWorkingHours

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  4800 totalDigits  4
annotation	documentation 00997
source	<xs:element name="BasicMeanWorkingHours">   <xs:annotation>     <xs:documentation>00997</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="4800"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BelgianDegree

diagram
type	restriction of xs:integer
properties	content  simple

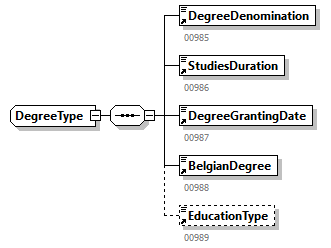

used by	complexType  DegreeType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00988
source	<xs:element name="BelgianDegree">   <xs:annotation>     <xs:documentation>00988</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CalendarYear

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  NonSituableAbsenceType
facets	Kind  Value  Annotation minInclusive  1950 maxInclusive  2100 totalDigits  4
annotation	documentation 01004
source	<xs:element name="CalendarYear">   <xs:annotation>     <xs:documentation>01004</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1950"/>       <xs:maxInclusive value="2100"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CareerElementEndDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00995
source	<xs:element name="CareerElementEndDate">   <xs:annotation>     <xs:documentation>00995</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CareerElementSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999 totalDigits  4
annotation	documentation 00993
source	<xs:element name="CareerElementSequenceNbr">   <xs:annotation>     <xs:documentation>00993</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="9999"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CareerElementStartDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00994
source	<xs:element name="CareerElementStartDate">   <xs:annotation>     <xs:documentation>00994</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element CareerHistory

diagram
properties	content  complex
children	Form
annotation	documentation 90414
source	<xs:element name="CareerHistory">   <xs:annotation>     <xs:documentation>90414</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Form" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

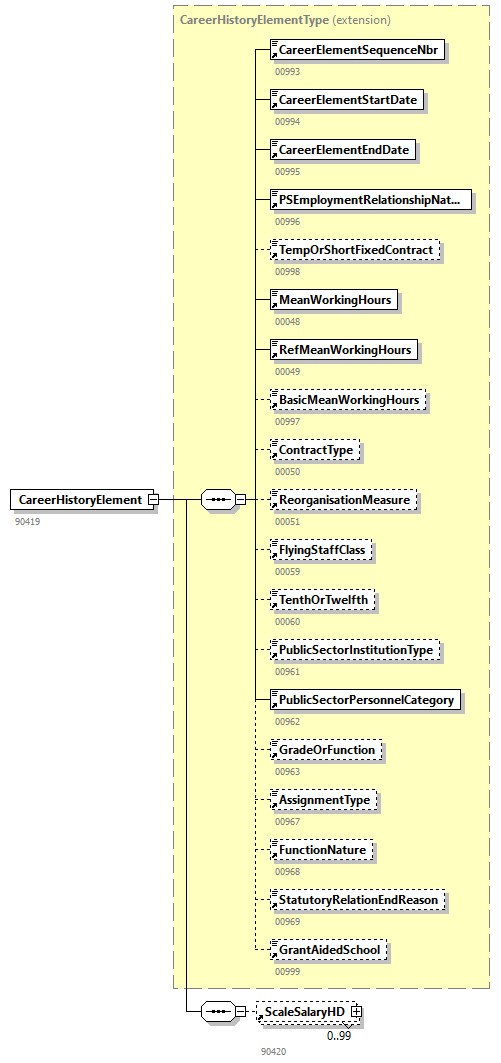

element CareerHistoryElement

diagram
type	extension of CareerHistoryElementType
properties	content  complex
children	CareerElementSequenceNbrCareerElementStartDateCareerElementEndDatePSEmploymentRelationshipNatureTempOrShortFixedContractMeanWorkingHoursRefMeanWorkingHoursBasicMeanWorkingHoursContractTypeReorganisationMeasureFlyingStaffClassTenthOrTwelfthPublicSectorInstitutionTypePublicSectorPersonnelCategoryGradeOrFunctionAssignmentTypeFunctionNatureStatutoryRelationEndReasonGrantAidedSchoolScaleSalaryHD
used by	element  CareerHistoryEmployerId
annotation	documentation 90419
source	<xs:element name="CareerHistoryElement">   <xs:annotation>     <xs:documentation>90419</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CareerHistoryElementType">         <xs:sequence>           <xs:element ref="ScaleSalaryHD" minOccurs="0" maxOccurs="99"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

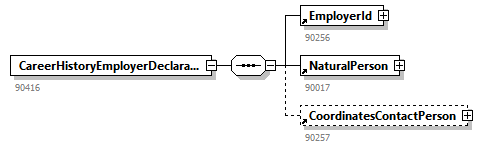

element CareerHistoryEmployerDeclaration

diagram
type	extension of CareerHistoryEmployerDeclarationType
properties	content  complex

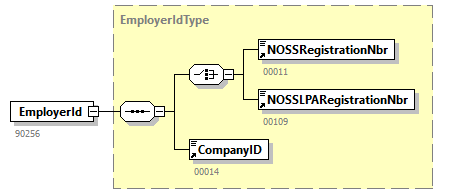

children	EmployerIdNaturalPersonCoordinatesContactPerson
used by	element  Form
annotation	documentation 90416
source	<xs:element name="CareerHistoryEmployerDeclaration">   <xs:annotation>     <xs:documentation>90416</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CareerHistoryEmployerDeclarationType">         <xs:sequence>           <xs:element ref="EmployerId"/>           <xs:element ref="NaturalPerson"/>           <xs:element ref="CoordinatesContactPerson" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

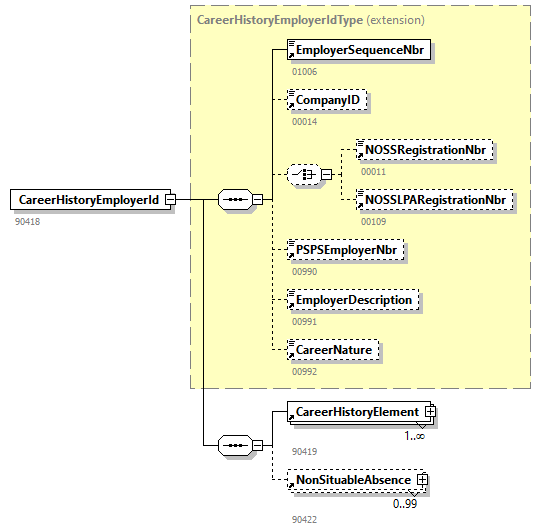

element CareerHistoryEmployerId

diagram
type	extension of CareerHistoryEmployerIdType
properties	content  complex

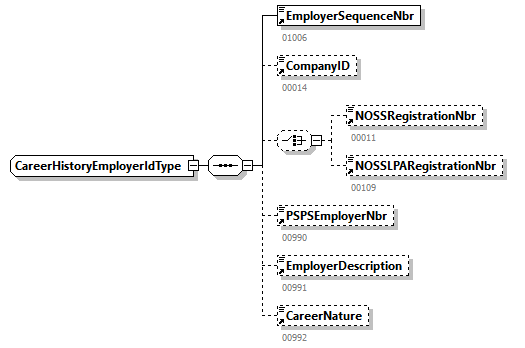

children	EmployerSequenceNbrCompanyIDNOSSRegistrationNbrNOSSLPARegistrationNbrPSPSEmployerNbrEmployerDescriptionCareerNatureCareerHistoryElementNonSituableAbsence

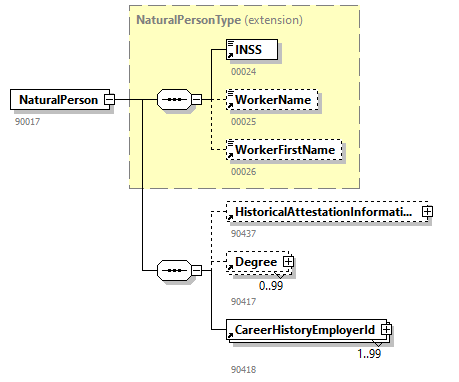

used by	element  NaturalPerson
annotation	documentation 90418
source	<xs:element name="CareerHistoryEmployerId">   <xs:annotation>     <xs:documentation>90418</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CareerHistoryEmployerIdType">         <xs:sequence>           <xs:element ref="CareerHistoryElement" maxOccurs="unbounded"/>           <xs:element ref="NonSituableAbsence" minOccurs="0" maxOccurs="99"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element CareerNature

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryEmployerIdType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2 totalDigits  1
annotation	documentation 00992
source	<xs:element name="CareerNature">   <xs:annotation>     <xs:documentation>00992</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

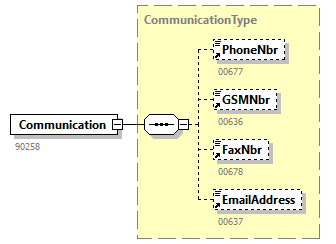

element Communication

diagram
type	CommunicationType
properties	content  complex
children	PhoneNbrGSMNbrFaxNbrEmailAddress
used by	element  CoordinatesContactPerson
annotation	documentation 90258
source	<xs:element name="Communication" type="CommunicationType">   <xs:annotation>     <xs:documentation>90258</xs:documentation>   </xs:annotation> </xs:element>

element CompanyID

diagram
type	restriction of xs:integer
properties	content  simple

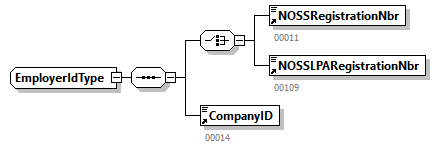

used by	complexTypes  CareerHistoryEmployerIdTypeEmployerIdType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1999999943 totalDigits  10 pattern  0|\d{9}|\d{10}
annotation	documentation 00014 appinfo CompanyID_conversion1 appinfo xs:companyId
source	<xs:element name="CompanyID">   <xs:annotation>     <xs:documentation>00014</xs:documentation>     <xs:appinfo source="ConversionID">CompanyID_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:companyId</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1999999943"/>       <xs:totalDigits value="10"/>       <xs:pattern value="0|\d{9}|\d{10}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

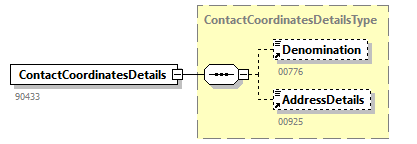

element ContactCoordinatesDetails

diagram
type	ContactCoordinatesDetailsType
properties	content  complex
children	DenominationAddressDetails
used by	element  CoordinatesContactPerson
annotation	documentation 90433
source	<xs:element name="ContactCoordinatesDetails" type="ContactCoordinatesDetailsType">   <xs:annotation>     <xs:documentation>90433</xs:documentation>   </xs:annotation> </xs:element>

element ContractType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00050
source	<xs:element name="ContractType">   <xs:annotation>     <xs:documentation>00050</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

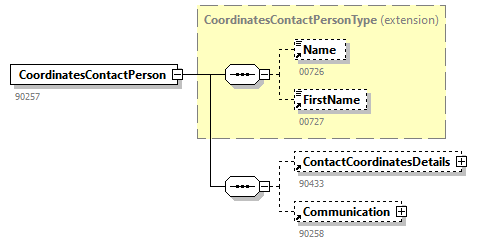

element CoordinatesContactPerson

diagram
type	extension of CoordinatesContactPersonType
properties	content  complex
children	NameFirstNameContactCoordinatesDetailsCommunication
used by	element  CareerHistoryEmployerDeclaration
annotation	documentation 90257
source	<xs:element name="CoordinatesContactPerson">   <xs:annotation>     <xs:documentation>90257</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CoordinatesContactPersonType">         <xs:sequence>           <xs:element ref="ContactCoordinatesDetails" minOccurs="0"/>           <xs:element ref="Communication" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element DaysNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  NonSituableAbsenceType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  366 totalDigits  3
annotation	documentation 01003
source	<xs:element name="DaysNbr">   <xs:annotation>     <xs:documentation>01003</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="366"/>       <xs:totalDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

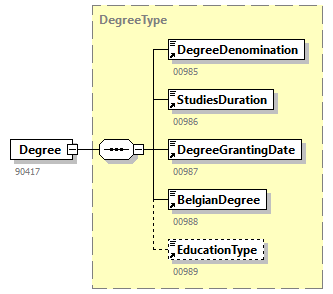

element Degree

diagram
type	DegreeType
properties	content  complex
children	DegreeDenominationStudiesDurationDegreeGrantingDateBelgianDegreeEducationType
used by	element  NaturalPerson
annotation	documentation 90417
source	<xs:element name="Degree" type="DegreeType">   <xs:annotation>     <xs:documentation>90417</xs:documentation>   </xs:annotation> </xs:element>

element DegreeDenomination

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  DegreeType
facets	Kind  Value  Annotation maxLength  100
annotation	documentation 00985
source	<xs:element name="DegreeDenomination">   <xs:annotation>     <xs:documentation>00985</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="100"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DegreeGrantingDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  DegreeType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00987
source	<xs:element name="DegreeGrantingDate">   <xs:annotation>     <xs:documentation>00987</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Denomination

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  ContactCoordinatesDetailsType
facets	Kind  Value  Annotation maxLength  96
annotation	documentation 00776
source	<xs:element name="Denomination">   <xs:annotation>     <xs:documentation>00776</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="96"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EducationType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  DegreeType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2 totalDigits  1
annotation	documentation 00989
source	<xs:element name="EducationType">   <xs:annotation>     <xs:documentation>00989</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmailAddress

diagram
type	restriction of xs:string
properties	content  simple
used by	complexTypes  CommunicationTypeHistoricalAttestationInformationType
facets	Kind  Value  Annotation maxLength  60
annotation	documentation 00637
source	<xs:element name="EmailAddress">   <xs:annotation>     <xs:documentation>00637</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="60"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerDescription

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CareerHistoryEmployerIdType
facets	Kind  Value  Annotation maxLength  96
annotation	documentation 00991
source	<xs:element name="EmployerDescription">   <xs:annotation>     <xs:documentation>00991</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="96"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EmployerId

diagram
type	EmployerIdType
properties	content  complex
children	NOSSRegistrationNbrNOSSLPARegistrationNbrCompanyID
used by	element  CareerHistoryEmployerDeclaration
annotation	documentation 90256
source	<xs:element name="EmployerId" type="EmployerIdType">   <xs:annotation>     <xs:documentation>90256</xs:documentation>   </xs:annotation> </xs:element>

element EmployerSequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryEmployerIdType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 01006
source	<xs:element name="EmployerSequenceNbr">   <xs:annotation>     <xs:documentation>01006</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FaxNbr

diagram
type	restriction of xs:string
properties	content  simple

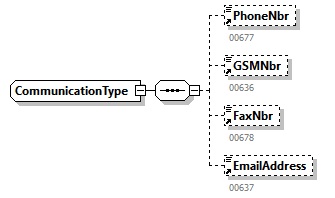

used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00678
source	<xs:element name="FaxNbr">   <xs:annotation>     <xs:documentation>00678</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FirstName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CoordinatesContactPersonType
facets	Kind  Value  Annotation maxLength  24
annotation	documentation 00727
source	<xs:element name="FirstName">   <xs:annotation>     <xs:documentation>00727</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="24"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FlyingStaffClass

diagram
type	restriction of xs:integer
properties	content  simple

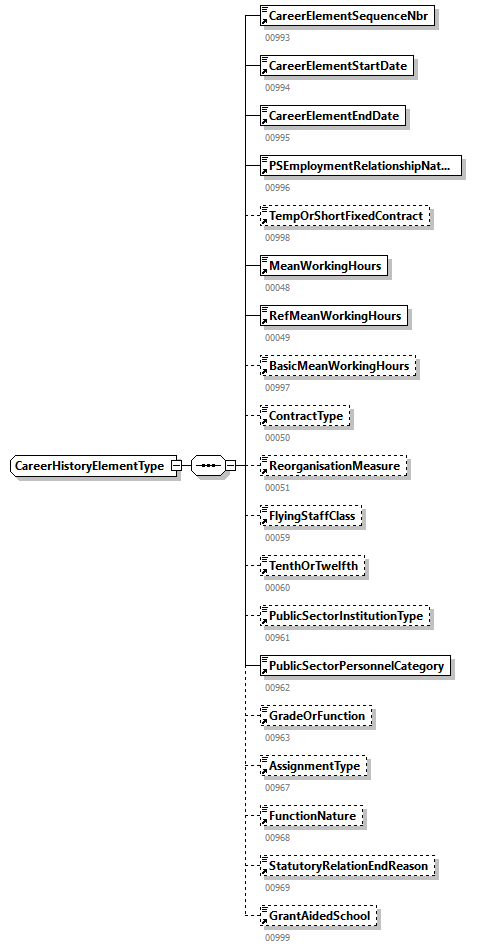

used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00059
source	<xs:element name="FlyingStaffClass">   <xs:annotation>     <xs:documentation>00059</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Form

diagram
type	extension of FormType
properties	content  complex
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeFormReferenceAttestationPropertiesCareerHistoryEmployerDeclaration
used by	element  CareerHistory
annotation	documentation 90059
source	<xs:element name="Form">   <xs:annotation>     <xs:documentation>90059</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="FormType">         <xs:sequence>           <xs:element ref="Reference" minOccurs="0" maxOccurs="2"/>           <xs:element ref="AttestationProperties"/>           <xs:element ref="CareerHistoryEmployerDeclaration"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element FormCreationDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  FormType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00218 appinfo Date_conversion1
source	<xs:element name="FormCreationDate">   <xs:annotation>     <xs:documentation>00218</xs:documentation>     <xs:appinfo source="ConversionID">Date_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FormCreationHour

diagram
type	restriction of xs:time
properties	content  simple
used by	complexType  FormType
facets	Kind  Value  Annotation pattern  \d{2}:\d{2}:\d{2}.\d{3}
annotation	documentation 00299 appinfo Time_conversion1
source	<xs:element name="FormCreationHour">   <xs:annotation>     <xs:documentation>00299</xs:documentation>     <xs:appinfo source="ConversionID">Time_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:time">       <xs:pattern value="\d{2}:\d{2}:\d{2}.\d{3}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FunctionNature

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00968
source	<xs:element name="FunctionNature">   <xs:annotation>     <xs:documentation>00968</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GradeOrFunction

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation maxLength  100
annotation	documentation 00963
source	<xs:element name="GradeOrFunction">   <xs:annotation>     <xs:documentation>00963</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="100"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GrantAidedSchool

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00999
source	<xs:element name="GrantAidedSchool">   <xs:annotation>     <xs:documentation>00999</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GSMNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00636
source	<xs:element name="GSMNbr">   <xs:annotation>     <xs:documentation>00636</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

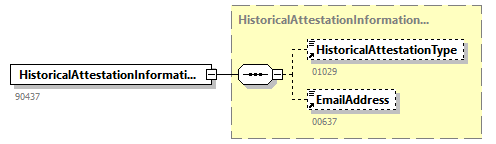

element HistoricalAttestationInformation

diagram
type	HistoricalAttestationInformationType
properties	content  complex
children	HistoricalAttestationTypeEmailAddress
used by	element  NaturalPerson
annotation	documentation 90437
source	<xs:element name="HistoricalAttestationInformation" type="HistoricalAttestationInformationType">   <xs:annotation>     <xs:documentation>90437</xs:documentation>   </xs:annotation> </xs:element>

element HistoricalAttestationType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  HistoricalAttestationInformationType
facets	Kind  Value  Annotation totalDigits  1 enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  8 enumeration  9
annotation	documentation 01029
source	<xs:element name="HistoricalAttestationType">   <xs:annotation>     <xs:documentation>01029</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="1"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Identification

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  FormType
facets	Kind  Value  Annotation maxLength  7 enumeration  CDHG001
annotation	documentation 00296
source	<xs:element name="Identification">   <xs:annotation>     <xs:documentation>00296</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="7"/>       <xs:enumeration value="CDHG001"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element INSS

diagram
type	restriction of xs:integer
properties	content  simple

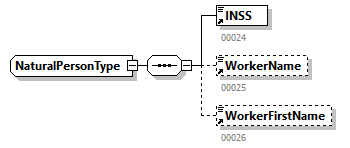

used by	complexType  NaturalPersonType
facets	Kind  Value  Annotation totalDigits  11 pattern  \d{11}
annotation	documentation 00024 appinfo Inss_conversion1 appinfo xs:inss
source	<xs:element name="INSS">   <xs:annotation>     <xs:documentation>00024</xs:documentation>     <xs:appinfo source="ConversionID">Inss_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:inss</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="11"/>       <xs:pattern value="\d{11}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IsCompleted

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AttestationPropertiesType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 totalDigits  1
annotation	documentation 00984
source	<xs:element name="IsCompleted">   <xs:annotation>     <xs:documentation>00984</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element MeanWorkingHours

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4800 totalDigits  4
annotation	documentation 00048 appinfo HoursCount_conversion1
source	<xs:element name="MeanWorkingHours">   <xs:annotation>     <xs:documentation>00048</xs:documentation>     <xs:appinfo source="ConversionID">HoursCount_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4800"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Name

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CoordinatesContactPersonType
facets	Kind  Value  Annotation maxLength  48
annotation	documentation 00726
source	<xs:element name="Name">   <xs:annotation>     <xs:documentation>00726</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="48"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NaturalPerson

diagram
type	extension of NaturalPersonType
properties	content  complex
children	INSSWorkerNameWorkerFirstNameHistoricalAttestationInformationDegreeCareerHistoryEmployerId
used by	element  CareerHistoryEmployerDeclaration
annotation	documentation 90017
source	<xs:element name="NaturalPerson">   <xs:annotation>     <xs:documentation>90017</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="NaturalPersonType">         <xs:sequence>           <xs:element ref="HistoricalAttestationInformation" minOccurs="0"/>           <xs:element ref="Degree" minOccurs="0" maxOccurs="99"/>           <xs:element ref="CareerHistoryEmployerId" maxOccurs="99"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element NbrHoursOrServices

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  AdditionalScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999999 totalDigits  7
annotation	documentation 00982
source	<xs:element name="NbrHoursOrServices">   <xs:annotation>     <xs:documentation>00982</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="9999999"/>       <xs:totalDigits value="7"/>     </xs:restriction>   </xs:simpleType> </xs:element>

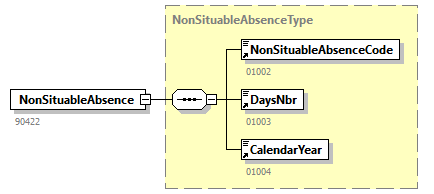

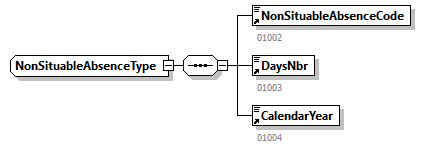

element NonSituableAbsence

diagram
type	NonSituableAbsenceType
properties	content  complex
children	NonSituableAbsenceCodeDaysNbrCalendarYear
used by	element  CareerHistoryEmployerId
annotation	documentation 90422
source	<xs:element name="NonSituableAbsence" type="NonSituableAbsenceType">   <xs:annotation>     <xs:documentation>90422</xs:documentation>   </xs:annotation> </xs:element>

element NonSituableAbsenceCode

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  NonSituableAbsenceType
facets	Kind  Value  Annotation totalDigits  2 enumeration  31 enumeration  32 enumeration  33 enumeration  41 enumeration  42 enumeration  43
annotation	documentation 01002
source	<xs:element name="NonSituableAbsenceCode">   <xs:annotation>     <xs:documentation>01002</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NOSSLPARegistrationNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  CareerHistoryEmployerIdTypeEmployerIdType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99999926 totalDigits  8
annotation	documentation 00109 appinfo NossAPL_conversion1 appinfo xs:nossLpaRegistrationNbr
source	<xs:element name="NOSSLPARegistrationNbr">   <xs:annotation>     <xs:documentation>00109</xs:documentation>     <xs:appinfo source="ConversionID">NossAPL_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:nossLpaRegistrationNbr</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="99999926"/>       <xs:totalDigits value="8"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element NOSSRegistrationNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexTypes  CareerHistoryEmployerIdTypeEmployerIdType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  199999934 totalDigits  9
annotation	documentation 00011 appinfo Noss_conversion1 appinfo xs:nossRegistrationNbr
source	<xs:element name="NOSSRegistrationNbr">   <xs:annotation>     <xs:documentation>00011</xs:documentation>     <xs:appinfo source="ConversionID">Noss_conversion1</xs:appinfo>     <xs:appinfo source="TDOType">xs:nossRegistrationNbr</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="199999934"/>       <xs:totalDigits value="9"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PecuniarySeniorityStartDate

diagram
type	restriction of xs:gYearMonth
properties	content  simple

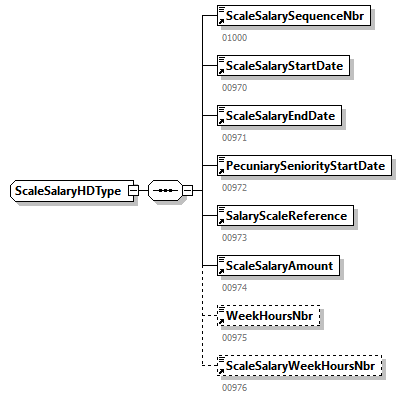

used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1911-01 pattern  \d{4}-\d{2}
annotation	documentation 00972
source	<xs:element name="PecuniarySeniorityStartDate">   <xs:annotation>     <xs:documentation>00972</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:gYearMonth">       <xs:minInclusive value="1911-01"/>       <xs:pattern value="\d{4}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PhoneNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  CommunicationType
facets	Kind  Value  Annotation maxLength  20
annotation	documentation 00677
source	<xs:element name="PhoneNbr">   <xs:annotation>     <xs:documentation>00677</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PSEmploymentRelationshipNature

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  5 totalDigits  1
annotation	documentation 00996
source	<xs:element name="PSEmploymentRelationshipNature">   <xs:annotation>     <xs:documentation>00996</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="5"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PSPSEmployerNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryEmployerIdType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999 totalDigits  5
annotation	documentation 00990
source	<xs:element name="PSPSEmployerNbr">   <xs:annotation>     <xs:documentation>00990</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999"/>       <xs:totalDigits value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PublicSectorInstitutionType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  2 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  17 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  64 enumeration  65 enumeration  66 enumeration  67
annotation	documentation 00961
source	<xs:element name="PublicSectorInstitutionType">   <xs:annotation>     <xs:documentation>00961</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="17"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="64"/>       <xs:enumeration value="65"/>       <xs:enumeration value="66"/>       <xs:enumeration value="67"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element PublicSectorPersonnelCategory

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  2 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23
annotation	documentation 00962
source	<xs:element name="PublicSectorPersonnelCategory">   <xs:annotation>     <xs:documentation>00962</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Reference

diagram
type	ReferenceType
properties	content  complex
children	ReferenceTypeReferenceOriginReferenceNbr
used by	element  Form
annotation	documentation 90082
source	<xs:element name="Reference" type="ReferenceType">   <xs:annotation>     <xs:documentation>90082</xs:documentation>   </xs:annotation> </xs:element>

element ReferenceNbr

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  ReferenceType
facets	Kind  Value  Annotation minLength  1 maxLength  20
annotation	documentation 00222 appinfo TicketNumber_conversion1
source	<xs:element name="ReferenceNbr">   <xs:annotation>     <xs:documentation>00222</xs:documentation>     <xs:appinfo source="ConversionID">TicketNumber_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ReferenceOrigin

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ReferenceType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  3 totalDigits  1
annotation	documentation 00298
source	<xs:element name="ReferenceOrigin">   <xs:annotation>     <xs:documentation>00298</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

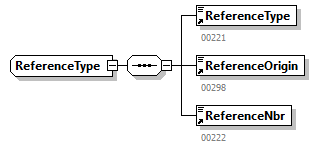

element ReferenceType

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ReferenceType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  10 totalDigits  2
annotation	documentation 00221
source	<xs:element name="ReferenceType">   <xs:annotation>     <xs:documentation>00221</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="10"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element RefMeanWorkingHours

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  4800 totalDigits  4
annotation	documentation 00049 appinfo HoursCount_conversion1
source	<xs:element name="RefMeanWorkingHours">   <xs:annotation>     <xs:documentation>00049</xs:documentation>     <xs:appinfo source="ConversionID">HoursCount_conversion1</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="4800"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ReorganisationMeasure

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  3 enumeration  3 enumeration  4 enumeration  7 enumeration  301 enumeration  302 enumeration  303 enumeration  401 enumeration  402 enumeration  403 enumeration  501 enumeration  502 enumeration  503 enumeration  504 enumeration  505 enumeration  506 enumeration  507 enumeration  508 enumeration  509 enumeration  510 enumeration  511 enumeration  512 enumeration  513 enumeration  514 enumeration  515 enumeration  517 enumeration  521 enumeration  531 enumeration  541 enumeration  542 enumeration  543 enumeration  544 enumeration  545 enumeration  546 enumeration  547
annotation	documentation 00051
source	<xs:element name="ReorganisationMeasure">   <xs:annotation>     <xs:documentation>00051</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="3"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="7"/>       <xs:enumeration value="301"/>       <xs:enumeration value="302"/>       <xs:enumeration value="303"/>       <xs:enumeration value="401"/>       <xs:enumeration value="402"/>       <xs:enumeration value="403"/>       <xs:enumeration value="501"/>       <xs:enumeration value="502"/>       <xs:enumeration value="503"/>       <xs:enumeration value="504"/>       <xs:enumeration value="505"/>       <xs:enumeration value="506"/>       <xs:enumeration value="507"/>       <xs:enumeration value="508"/>       <xs:enumeration value="509"/>       <xs:enumeration value="510"/>       <xs:enumeration value="511"/>       <xs:enumeration value="512"/>       <xs:enumeration value="513"/>       <xs:enumeration value="514"/>       <xs:enumeration value="515"/>       <xs:enumeration value="517"/>       <xs:enumeration value="521"/>       <xs:enumeration value="531"/>       <xs:enumeration value="541"/>       <xs:enumeration value="542"/>       <xs:enumeration value="543"/>       <xs:enumeration value="544"/>       <xs:enumeration value="545"/>       <xs:enumeration value="546"/>       <xs:enumeration value="547"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SalaryScaleReference

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999999999999 totalDigits  12
annotation	documentation 00973
source	<xs:element name="SalaryScaleReference">   <xs:annotation>     <xs:documentation>00973</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="999999999999"/>       <xs:totalDigits value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ScaleSalaryAmount

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999999999 totalDigits  11
annotation	documentation 00974
source	<xs:element name="ScaleSalaryAmount">   <xs:annotation>     <xs:documentation>00974</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99999999999"/>       <xs:totalDigits value="11"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ScaleSalaryEndDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00971
source	<xs:element name="ScaleSalaryEndDate">   <xs:annotation>     <xs:documentation>00971</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

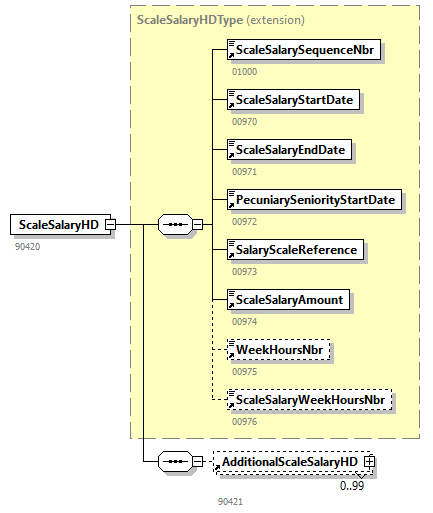

element ScaleSalaryHD

diagram
type	extension of ScaleSalaryHDType
properties	content  complex
children	ScaleSalarySequenceNbrScaleSalaryStartDateScaleSalaryEndDatePecuniarySeniorityStartDateSalaryScaleReferenceScaleSalaryAmountWeekHoursNbrScaleSalaryWeekHoursNbrAdditionalScaleSalaryHD
used by	element  CareerHistoryElement
annotation	documentation 90420
source	<xs:element name="ScaleSalaryHD">   <xs:annotation>     <xs:documentation>90420</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="ScaleSalaryHDType">         <xs:sequence>           <xs:element ref="AdditionalScaleSalaryHD" minOccurs="0" maxOccurs="99"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ScaleSalarySequenceNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99 totalDigits  2
annotation	documentation 01000
source	<xs:element name="ScaleSalarySequenceNbr">   <xs:annotation>     <xs:documentation>01000</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="99"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ScaleSalaryStartDate

diagram
type	restriction of xs:date
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation pattern  \d{4}-\d{2}-\d{2}
annotation	documentation 00970
source	<xs:element name="ScaleSalaryStartDate">   <xs:annotation>     <xs:documentation>00970</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:pattern value="\d{4}-\d{2}-\d{2}"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ScaleSalaryWeekHoursNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  4800 totalDigits  4
annotation	documentation 00976
source	<xs:element name="ScaleSalaryWeekHoursNbr">   <xs:annotation>     <xs:documentation>00976</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="4800"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element StatutoryRelationEndReason

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  2 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  9 enumeration  10
annotation	documentation 00969
source	<xs:element name="StatutoryRelationEndReason">   <xs:annotation>     <xs:documentation>00969</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element StudiesDuration

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  DegreeType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  20 totalDigits  2
annotation	documentation 00986
source	<xs:element name="StudiesDuration">   <xs:annotation>     <xs:documentation>00986</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="20"/>       <xs:totalDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TempOrShortFixedContract

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  3 enumeration  2 enumeration  4 enumeration  5 enumeration  21 enumeration  101 enumeration  102 enumeration  103 enumeration  104 enumeration  105 enumeration  106 enumeration  107 enumeration  108 enumeration  109 enumeration  110
annotation	documentation 00998
source	<xs:element name="TempOrShortFixedContract">   <xs:annotation>     <xs:documentation>00998</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="3"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="21"/>       <xs:enumeration value="101"/>       <xs:enumeration value="102"/>       <xs:enumeration value="103"/>       <xs:enumeration value="104"/>       <xs:enumeration value="105"/>       <xs:enumeration value="106"/>       <xs:enumeration value="107"/>       <xs:enumeration value="108"/>       <xs:enumeration value="109"/>       <xs:enumeration value="110"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TenthOrTwelfth

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  CareerHistoryElementType
facets	Kind  Value  Annotation totalDigits  2 enumeration  10 enumeration  12
annotation	documentation 00060
source	<xs:element name="TenthOrTwelfth">   <xs:annotation>     <xs:documentation>00060</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:totalDigits value="2"/>       <xs:enumeration value="10"/>       <xs:enumeration value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TypeForm

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  FormType
facets	Kind  Value  Annotation maxLength  2 enumeration  SU
annotation	documentation 00297
source	<xs:element name="TypeForm">   <xs:annotation>     <xs:documentation>00297</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="2"/>       <xs:enumeration value="SU"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WeekHoursNbr

diagram
type	restriction of xs:integer
properties	content  simple
used by	complexType  ScaleSalaryHDType
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4800 totalDigits  4
annotation	documentation 00975
source	<xs:element name="WeekHoursNbr">   <xs:annotation>     <xs:documentation>00975</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4800"/>       <xs:totalDigits value="4"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerFirstName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  NaturalPersonType
facets	Kind  Value  Annotation minLength  1 maxLength  24
annotation	documentation 00026
source	<xs:element name="WorkerFirstName">   <xs:annotation>     <xs:documentation>00026</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="24"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WorkerName

diagram
type	restriction of xs:string
properties	content  simple
used by	complexType  NaturalPersonType
facets	Kind  Value  Annotation minLength  1 maxLength  48
annotation	documentation 00025
source	<xs:element name="WorkerName">   <xs:annotation>     <xs:documentation>00025</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="48"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType AdditionalScaleSalaryHDType

diagram
children	AdditionalScaleSalarySequenceNbrAdditionalScaleSalaryStartDateAdditionalScaleSalaryEndDateAdditionalScaleSalaryReferenceAdditionalScaleSalaryBasisAmountAdditionalScaleSalaryPercentageNbrHoursOrServicesAdditionalScaleSalaryAmount
used by	element  AdditionalScaleSalaryHD
source	<xs:complexType name="AdditionalScaleSalaryHDType">   <xs:sequence>     <xs:element ref="AdditionalScaleSalarySequenceNbr"/>     <xs:element ref="AdditionalScaleSalaryStartDate"/>     <xs:element ref="AdditionalScaleSalaryEndDate"/>     <xs:element ref="AdditionalScaleSalaryReference"/>     <xs:element ref="AdditionalScaleSalaryBasisAmount" minOccurs="0"/>     <xs:element ref="AdditionalScaleSalaryPercentage" minOccurs="0"/>     <xs:element ref="NbrHoursOrServices" minOccurs="0"/>     <xs:element ref="AdditionalScaleSalaryAmount"/>   </xs:sequence> </xs:complexType>

complexType AttestationPropertiesType

diagram
children	IsCompleted
used by	element  AttestationProperties
source	<xs:complexType name="AttestationPropertiesType">   <xs:sequence>     <xs:element ref="IsCompleted"/>   </xs:sequence> </xs:complexType>

complexType CareerHistoryElementType

diagram
children	CareerElementSequenceNbrCareerElementStartDateCareerElementEndDatePSEmploymentRelationshipNatureTempOrShortFixedContractMeanWorkingHoursRefMeanWorkingHoursBasicMeanWorkingHoursContractTypeReorganisationMeasureFlyingStaffClassTenthOrTwelfthPublicSectorInstitutionTypePublicSectorPersonnelCategoryGradeOrFunctionAssignmentTypeFunctionNatureStatutoryRelationEndReasonGrantAidedSchool
used by	element  CareerHistoryElement
source	<xs:complexType name="CareerHistoryElementType">   <xs:sequence>     <xs:element ref="CareerElementSequenceNbr"/>     <xs:element ref="CareerElementStartDate"/>     <xs:element ref="CareerElementEndDate"/>     <xs:element ref="PSEmploymentRelationshipNature"/>     <xs:element ref="TempOrShortFixedContract" minOccurs="0"/>     <xs:element ref="MeanWorkingHours"/>     <xs:element ref="RefMeanWorkingHours"/>     <xs:element ref="BasicMeanWorkingHours" minOccurs="0"/>     <xs:element ref="ContractType" minOccurs="0"/>     <xs:element ref="ReorganisationMeasure" minOccurs="0"/>     <xs:element ref="FlyingStaffClass" minOccurs="0"/>     <xs:element ref="TenthOrTwelfth" minOccurs="0"/>     <xs:element ref="PublicSectorInstitutionType" minOccurs="0"/>     <xs:element ref="PublicSectorPersonnelCategory"/>     <xs:element ref="GradeOrFunction" minOccurs="0"/>     <xs:element ref="AssignmentType" minOccurs="0"/>     <xs:element ref="FunctionNature" minOccurs="0"/>     <xs:element ref="StatutoryRelationEndReason" minOccurs="0"/>     <xs:element ref="GrantAidedSchool" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CareerHistoryEmployerDeclarationType

diagram
used by	element  CareerHistoryEmployerDeclaration
source	<xs:complexType name="CareerHistoryEmployerDeclarationType"/>

complexType CareerHistoryEmployerIdType

diagram
children	EmployerSequenceNbrCompanyIDNOSSRegistrationNbrNOSSLPARegistrationNbrPSPSEmployerNbrEmployerDescriptionCareerNature
used by	element  CareerHistoryEmployerId
source	<xs:complexType name="CareerHistoryEmployerIdType">   <xs:sequence>     <xs:element ref="EmployerSequenceNbr"/>     <xs:element ref="CompanyID" minOccurs="0"/>     <xs:choice minOccurs="0">       <xs:element ref="NOSSRegistrationNbr" minOccurs="0"/>       <xs:element ref="NOSSLPARegistrationNbr" minOccurs="0"/>     </xs:choice>     <xs:element ref="PSPSEmployerNbr" minOccurs="0"/>     <xs:element ref="EmployerDescription" minOccurs="0"/>     <xs:element ref="CareerNature" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CommunicationType

diagram
children	PhoneNbrGSMNbrFaxNbrEmailAddress
used by	element  Communication
source	<xs:complexType name="CommunicationType">   <xs:sequence>     <xs:element ref="PhoneNbr" minOccurs="0"/>     <xs:element ref="GSMNbr" minOccurs="0"/>     <xs:element ref="FaxNbr" minOccurs="0"/>     <xs:element ref="EmailAddress" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType ContactCoordinatesDetailsType

diagram
children	DenominationAddressDetails
used by	element  ContactCoordinatesDetails
source	<xs:complexType name="ContactCoordinatesDetailsType">   <xs:sequence>     <xs:element ref="Denomination" minOccurs="0"/>     <xs:element ref="AddressDetails" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType CoordinatesContactPersonType

diagram
children	NameFirstName
used by	element  CoordinatesContactPerson
source	<xs:complexType name="CoordinatesContactPersonType">   <xs:sequence>     <xs:element ref="Name" minOccurs="0"/>     <xs:element ref="FirstName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType DegreeType

diagram
children	DegreeDenominationStudiesDurationDegreeGrantingDateBelgianDegreeEducationType
used by	element  Degree
source	<xs:complexType name="DegreeType">   <xs:sequence>     <xs:element ref="DegreeDenomination"/>     <xs:element ref="StudiesDuration"/>     <xs:element ref="DegreeGrantingDate"/>     <xs:element ref="BelgianDegree"/>     <xs:element ref="EducationType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType EmployerIdType

diagram
children	NOSSRegistrationNbrNOSSLPARegistrationNbrCompanyID
used by	element  EmployerId
source	<xs:complexType name="EmployerIdType">   <xs:sequence>     <xs:choice>       <xs:element ref="NOSSRegistrationNbr"/>       <xs:element ref="NOSSLPARegistrationNbr"/>     </xs:choice>     <xs:element ref="CompanyID"/>   </xs:sequence> </xs:complexType>

complexType FormType

diagram
children	IdentificationFormCreationDateFormCreationHourAttestationStatusTypeForm
used by	element  Form
source	<xs:complexType name="FormType">   <xs:sequence>     <xs:element ref="Identification"/>     <xs:element ref="FormCreationDate"/>     <xs:element ref="FormCreationHour"/>     <xs:element ref="AttestationStatus"/>     <xs:element ref="TypeForm"/>   </xs:sequence> </xs:complexType>

complexType HistoricalAttestationInformationType

diagram
children	HistoricalAttestationTypeEmailAddress
used by	element  HistoricalAttestationInformation
source	<xs:complexType name="HistoricalAttestationInformationType">   <xs:sequence>     <xs:element ref="HistoricalAttestationType" minOccurs="0"/>     <xs:element ref="EmailAddress" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType NaturalPersonType

diagram
children	INSSWorkerNameWorkerFirstName
used by	element  NaturalPerson
source	<xs:complexType name="NaturalPersonType">   <xs:sequence>     <xs:element ref="INSS"/>     <xs:element ref="WorkerName" minOccurs="0"/>     <xs:element ref="WorkerFirstName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

complexType
